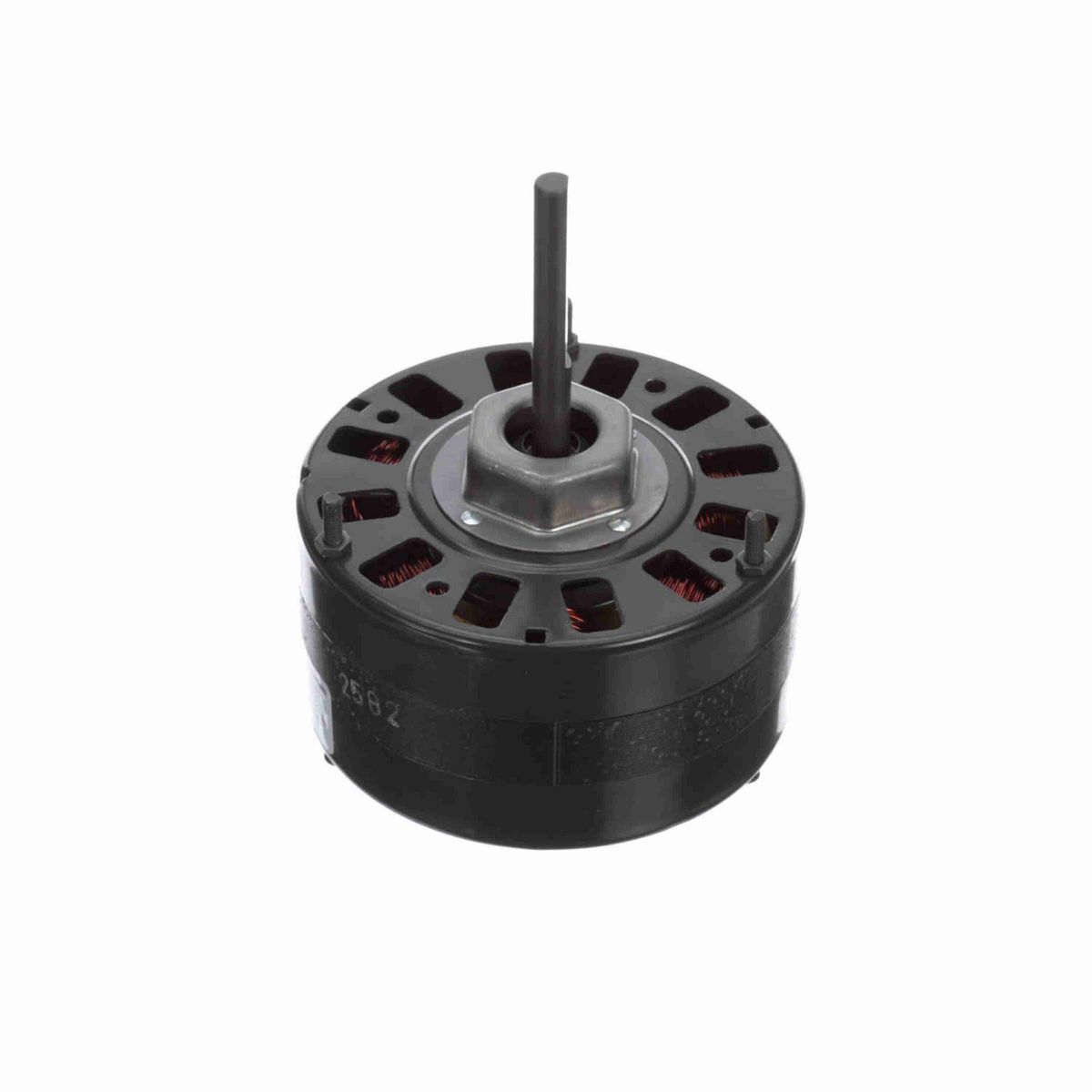

• Ventilation - Unit Heater Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Lead End End-Frame, Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 3/8" Diameter Shaft with Flat
• 27" Leads
• Extended Studs Shaft End, Hex Mounting Hub Shaft End and Lead End

Nameplate Specifications

Phase	1
Output HP	1/10 Hp
Voltage	115 V
Speed	1050 rpm
Service Factor	1.0
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.61 A
Duty	Continuous Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Frame Length	3.33 in
Shaft Diameter	0.375 in
Shaft Extension	3.5 in

General Specifications

UPC	818508028859
Weight	6.53 LB
Packaged Length	10.13 IN
Packaged Width	5.25 IN
Packaged Height	5.25 IN
Country of Origin	Mexico
