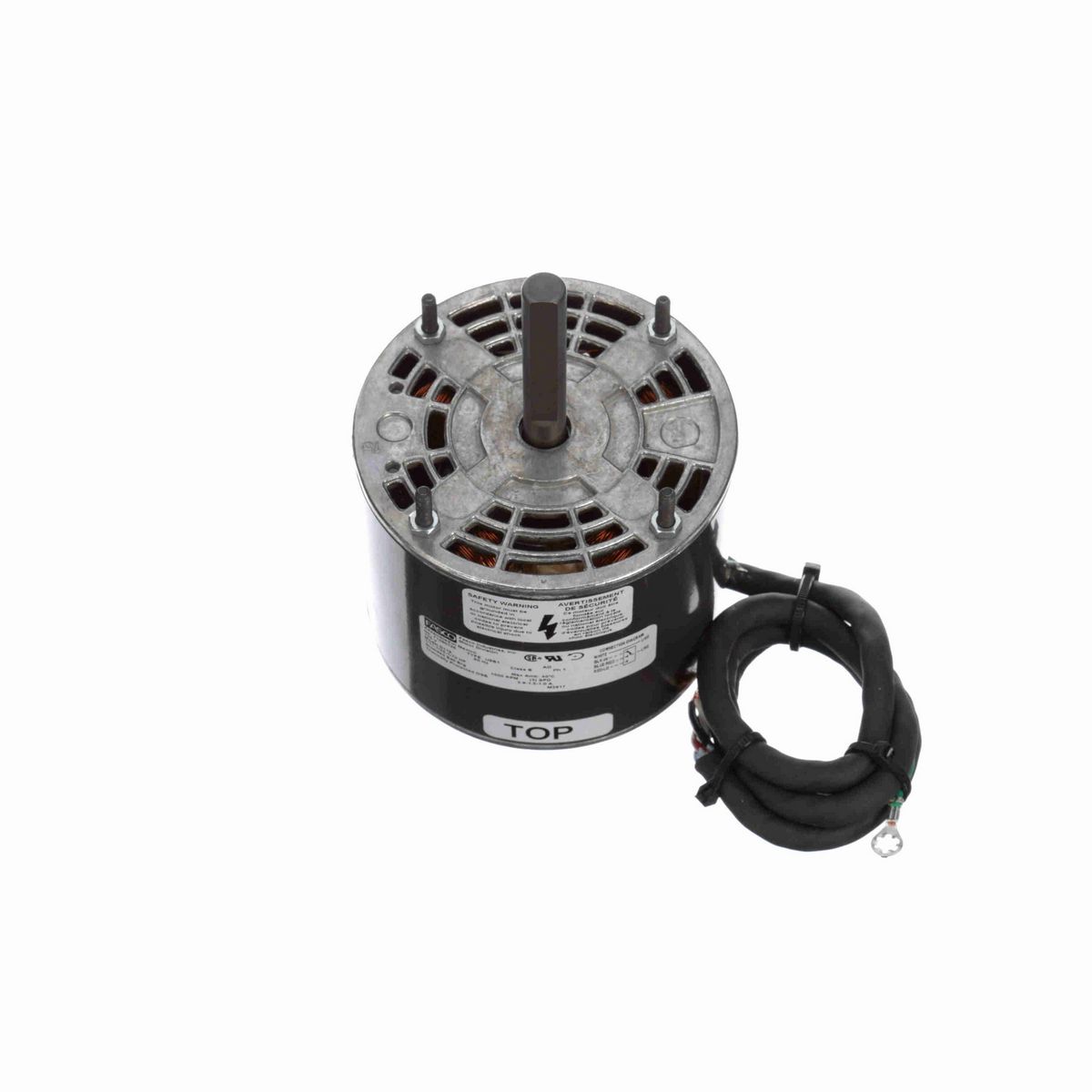

• General Purpose Motor
• 4.4" Diameter
• Shaded Pole
• Thermally Protected
• Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 30" Leads
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/11-1/25-1/70 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	1500 rpm
Service Factor	1
Frame	4.4
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.9-1.5-1.0 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	6.36 in
Frame Length	3.38 in
Shaft Diameter	0.500 in
Shaft Extension	2.6 in

General Specifications

UPC	815585028123
Weight	6.90 LB
Packaged Length	4.38 IN
Packaged Width	4.38 IN
Packaged Height	10.00 IN
Country of Origin	Mexico
