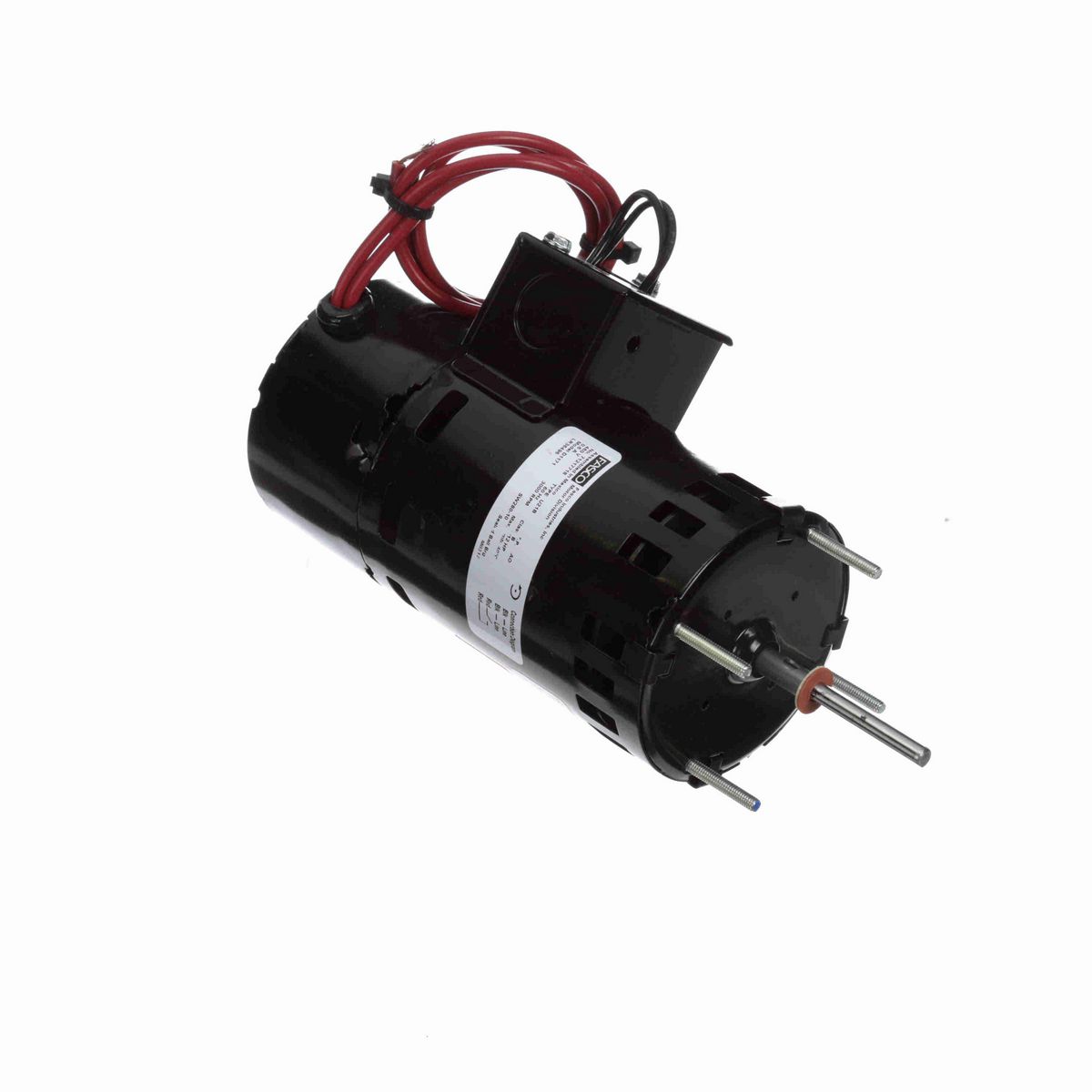

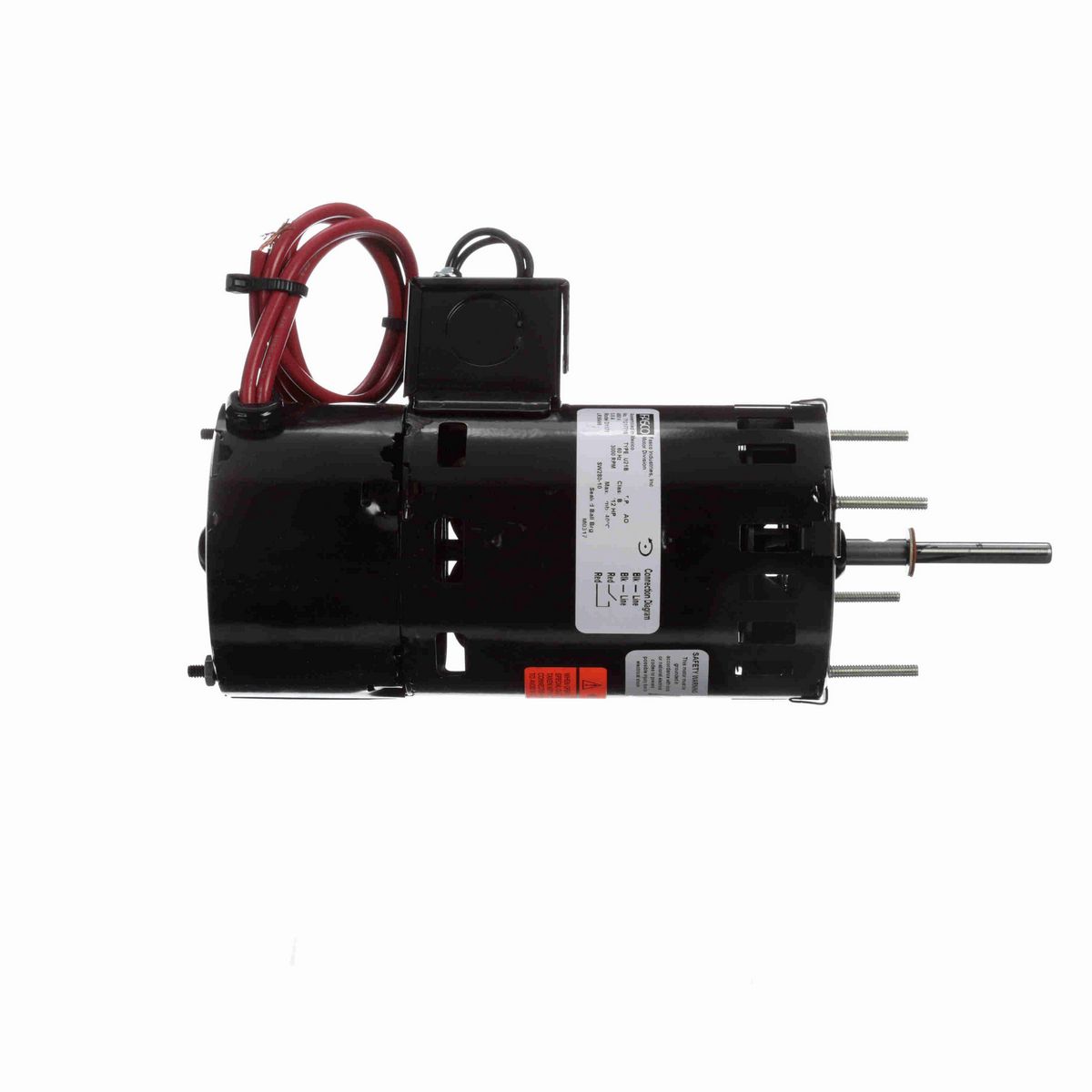

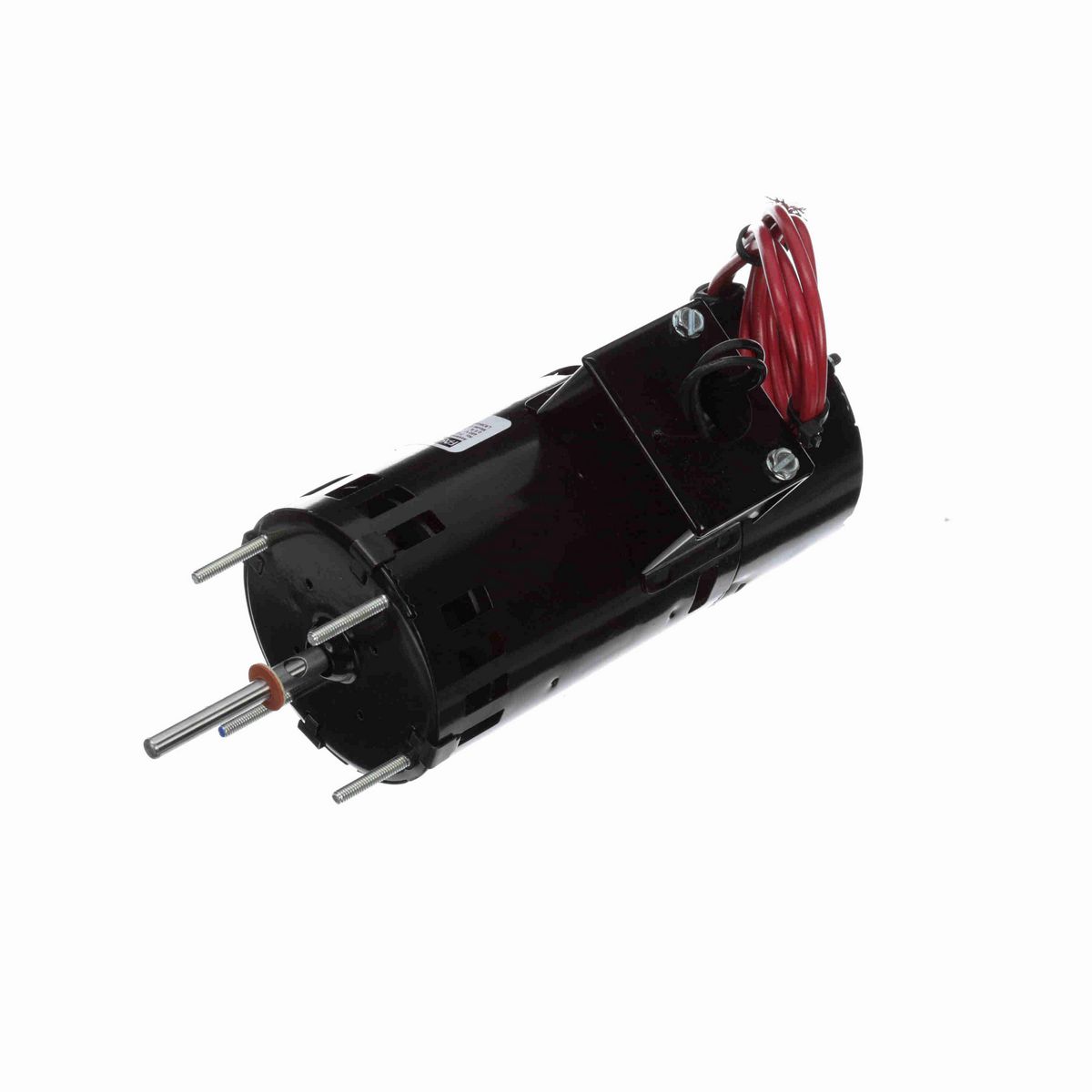

• OEM Direct Replacement Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Enclosed Shaft End and Lead End End-Frame, Open Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/4" Diameter Shaft with Flat
• Conduit Box, 15" Switch Leads
• Mounting Plate Shaft End

Nameplate Specifications

Phase	1
Output HP	1/12 Hp
Output KW	0.06 kW
Voltage	460 V
Speed	3000 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.60 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Counterclockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	9.69 in
Frame Length	4.52 in
Shaft Diameter	0.250 in
Shaft Extension	2.5 in

General Specifications

UPC	818508022314
Weight	5.40 LB
Packaged Length	11.38 IN
Packaged Width	6.50 IN
Packaged Height	4.25 IN
Country of Origin	Mexico
