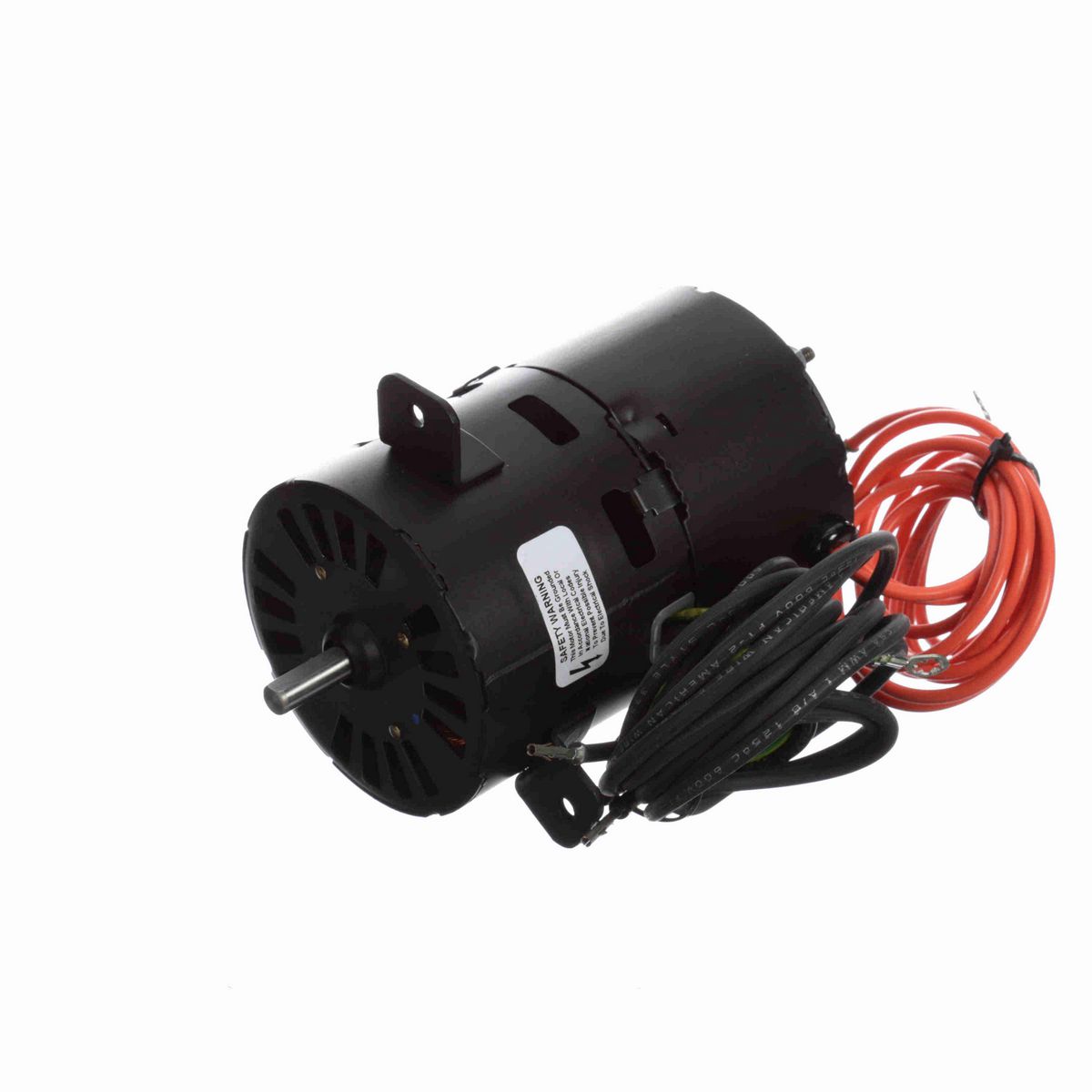

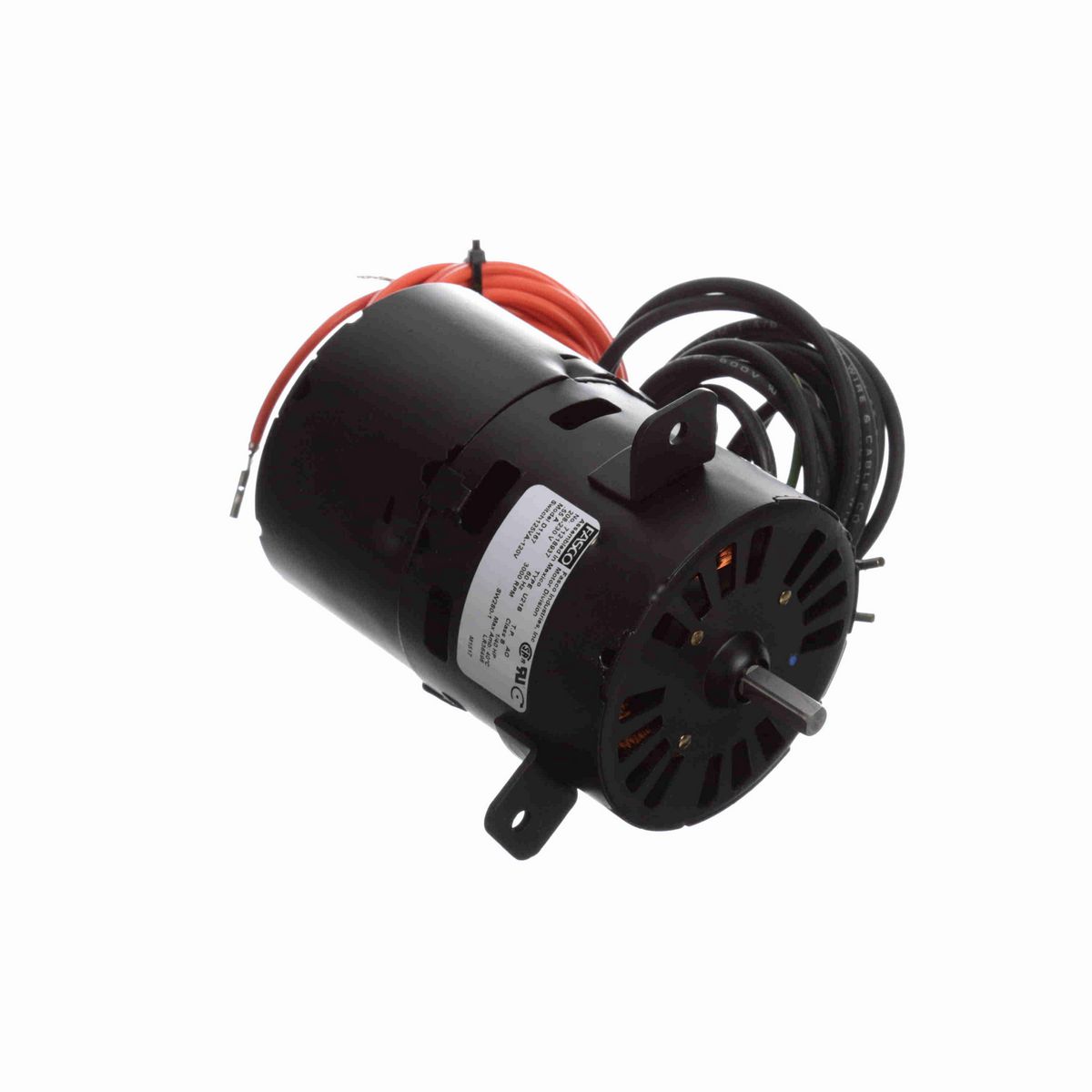

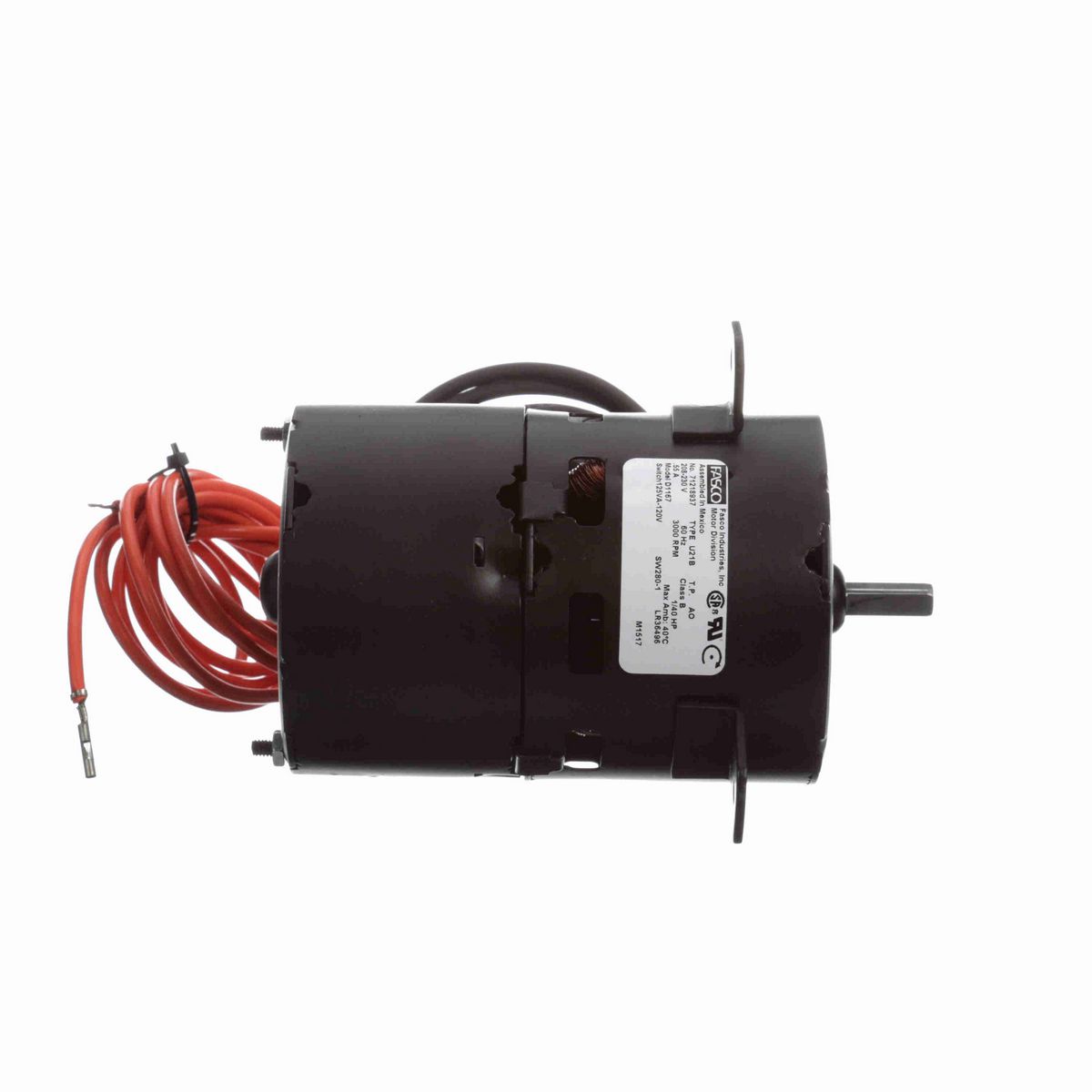

• OEM Direct Replacement Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 5/16" Diameter Shaft with Double Flat
• 56" Leads with Socket Terminals, 18" Swithch Leads with Socket Terminals
• Lug Mount

Nameplate Specifications

Phase	1
Output HP	1/40 Hp
Output KW	0.02 kW
Voltage	208-230 V
Speed	3000 rpm
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.55 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Counterclockwise Shaft End
Mounting	Lug
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Double Flat
Overall Length	6.18 in
Frame Length	2.50 in
Shaft Diameter	0.313 in
Shaft Extension	1 in

General Specifications

UPC	818508022277
Weight	3.60 LB
Packaged Length	6.13 IN
Packaged Width	5.50 IN
Packaged Height	10.00 IN
Country of Origin	Mexico
