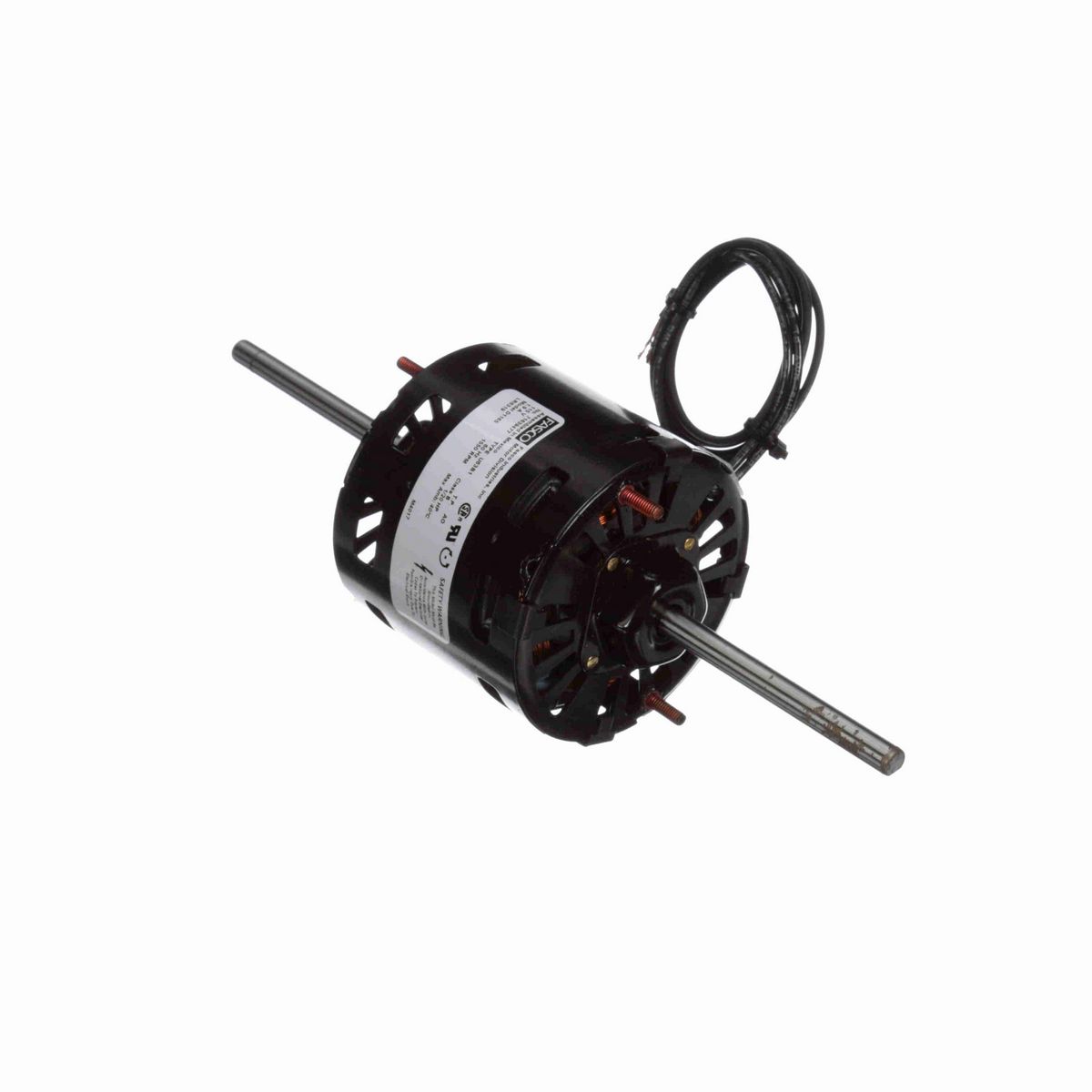

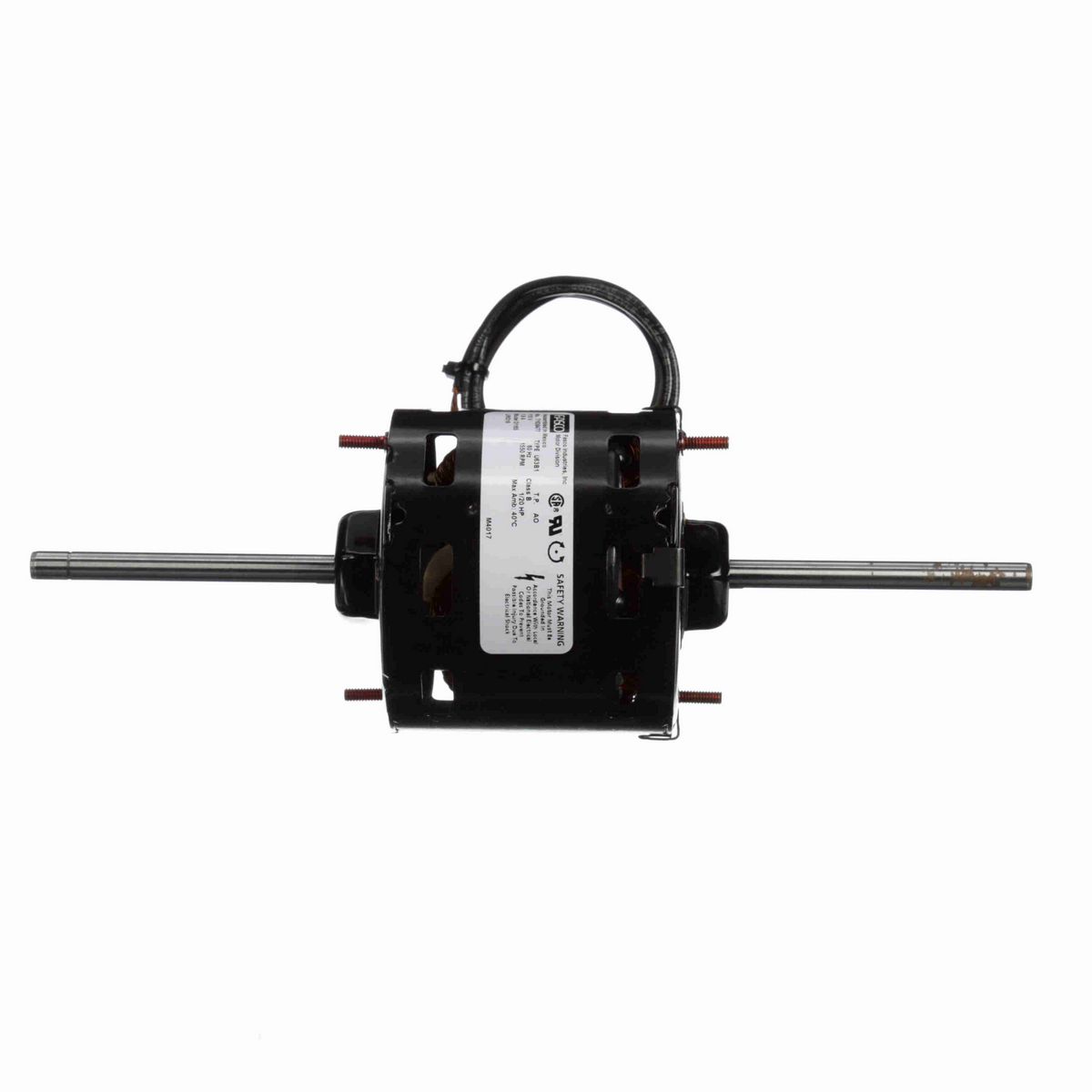

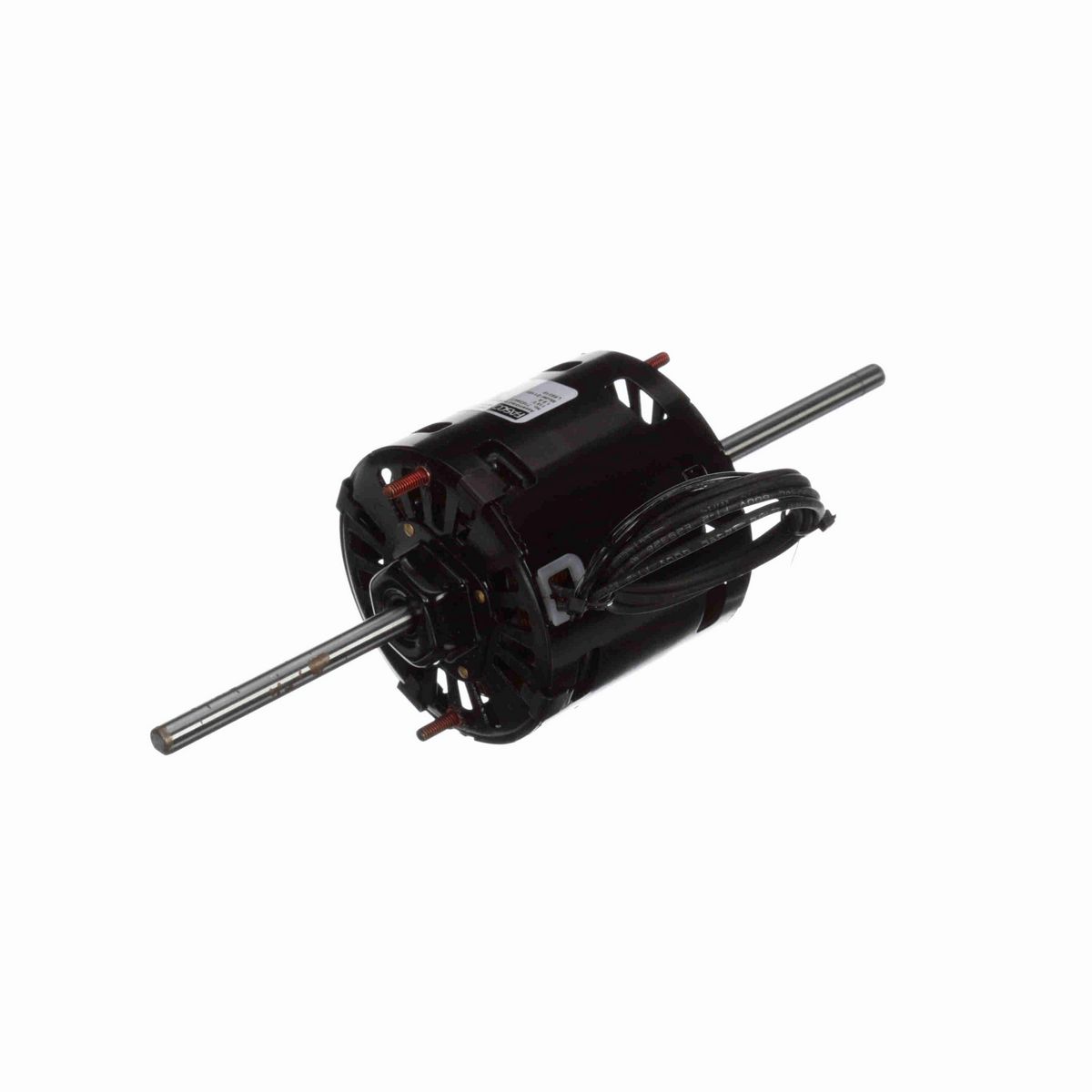

• OEM Direct Replacement Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 5/16" Diameter Double Shaft with Flat
• 18" Leads
• Extended Studs Lead End and Opposite Lead End, Hex Mounting Hub Lead End and Opposite Lead End

Nameplate Specifications

Phase	1
Output HP	1/20 Hp
Output KW	0.04 kW
Voltage	115 V
Speed	1550 rpm
Frame	3.3
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.90 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Flat
Overall Length	10.22 in
Frame Length	2.74 in
Shaft Diameter	0.313 in
Shaft Extension	3.5 in

General Specifications

UPC	818508022260
Weight	4.00 LB
Packaged Length	13.00 IN
Packaged Width	5.50 IN
Packaged Height	4.56 IN
Country of Origin	Mexico
