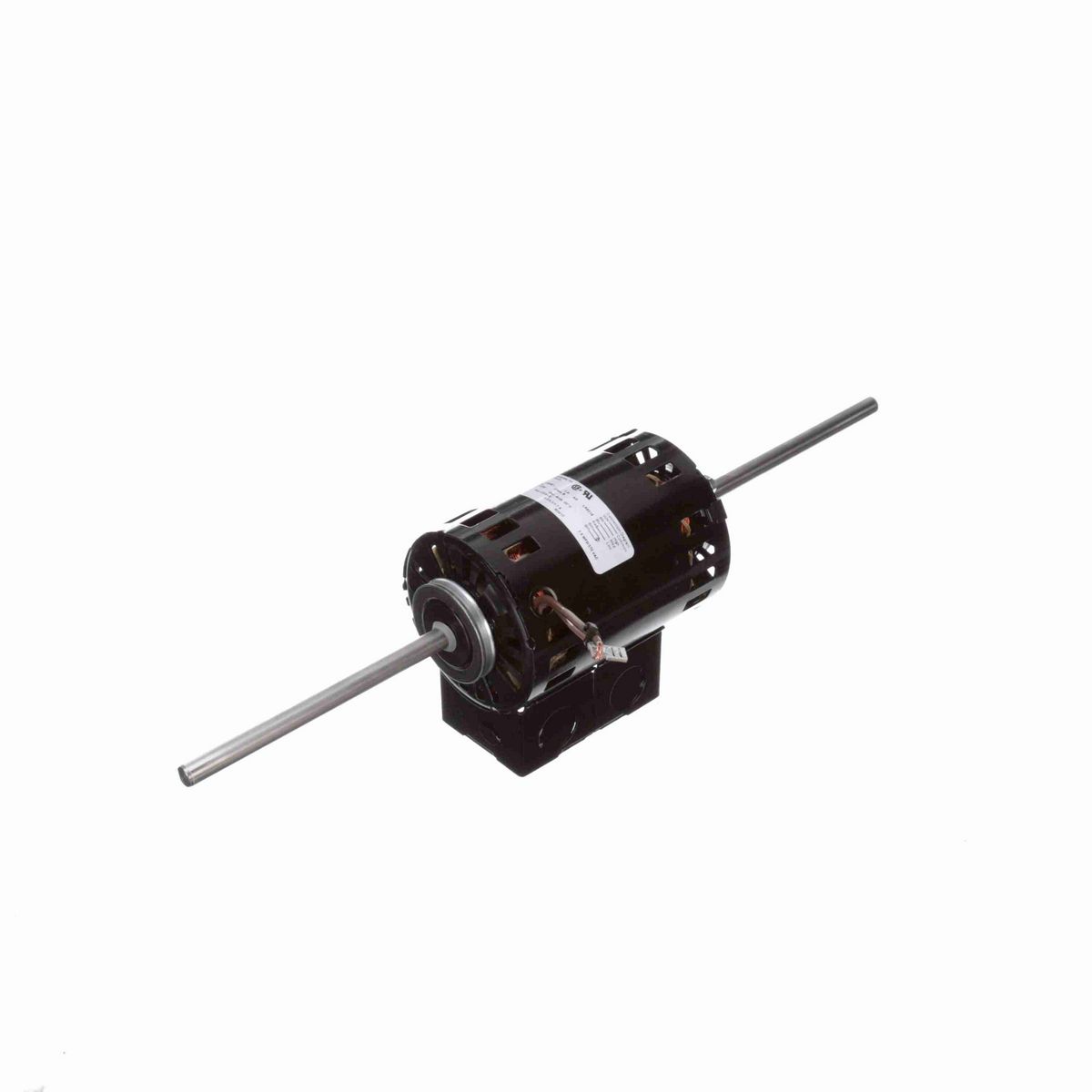

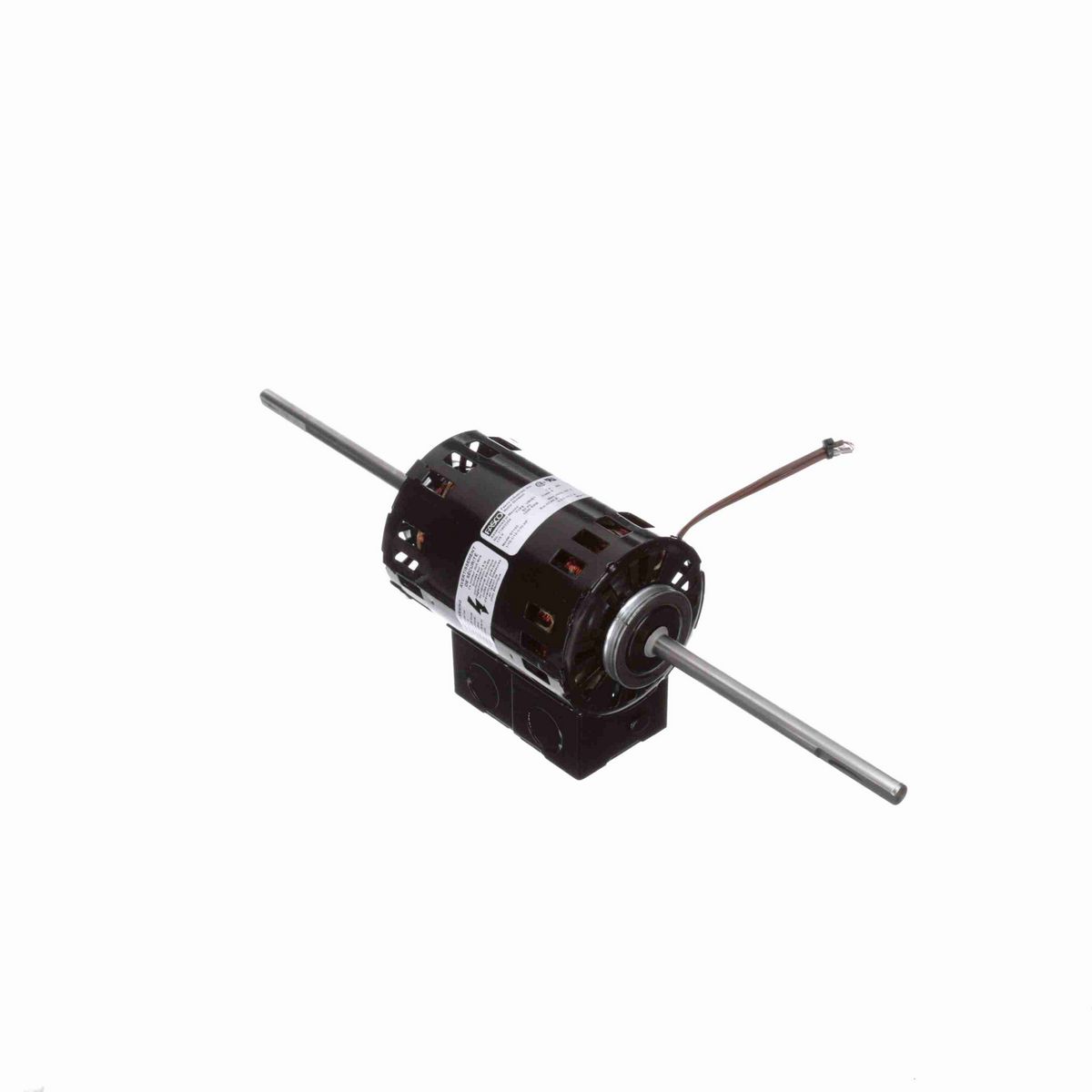

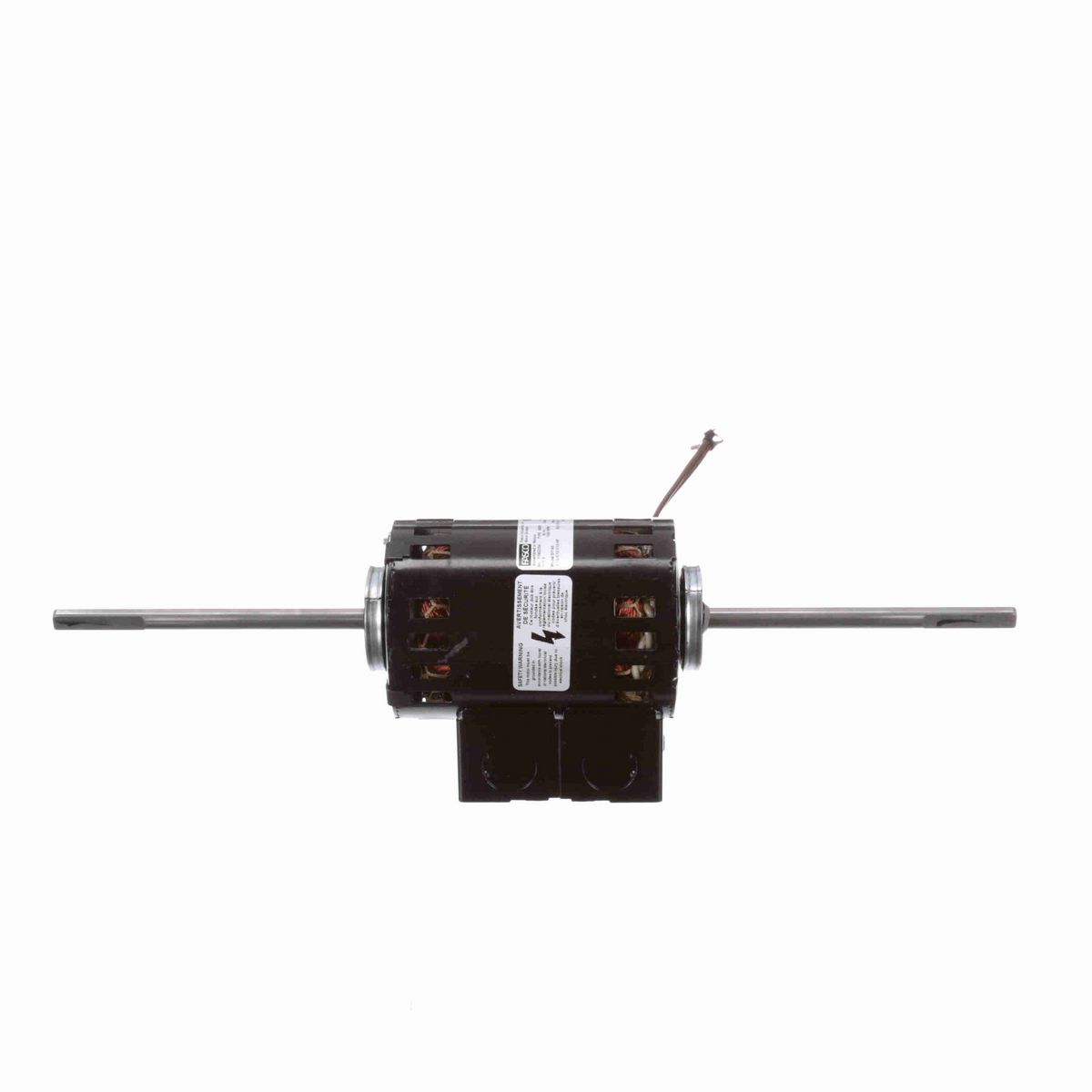

• OEM Direct Replacement Motor
• 3.3" Diameter
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 3/8" Double Shaft with Flat
• 8" Leads
• Resilient Ring Mounting

Nameplate Specifications

Phase	1
Output HP	1/10-1/12-1/15 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	1500 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.20/2.10/1.70 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	Resilient Rings
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Flat
Overall Length	16.05 in
Frame Length	4.51 in
Shaft Diameter	0.375 in
Shaft Extension	5.625 in

General Specifications

UPC	818508022062
Weight	6.00 LB
Packaged Length	17.00 IN
Packaged Width	4.50 IN
Packaged Height	3.31 IN
Country of Origin	Mexico
