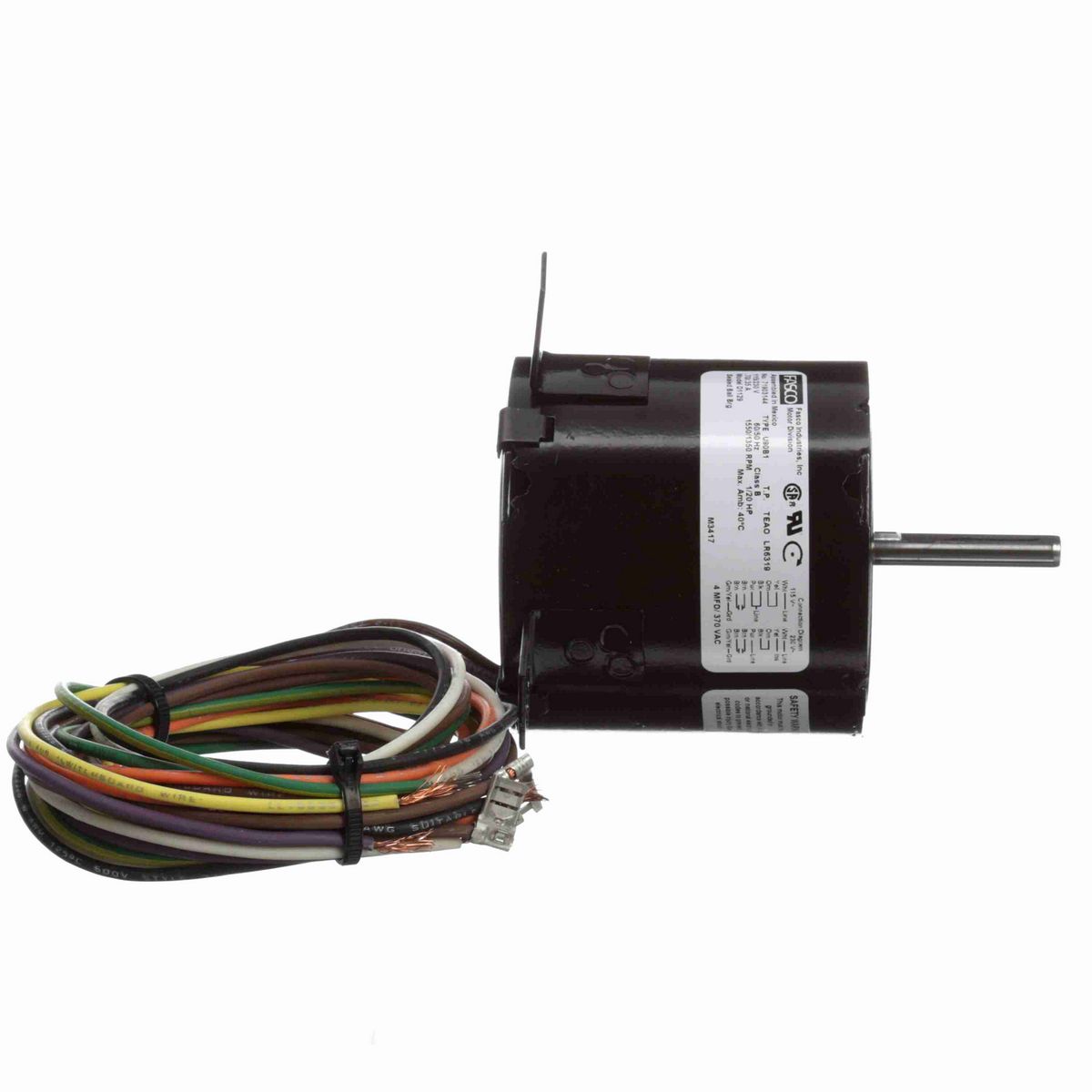

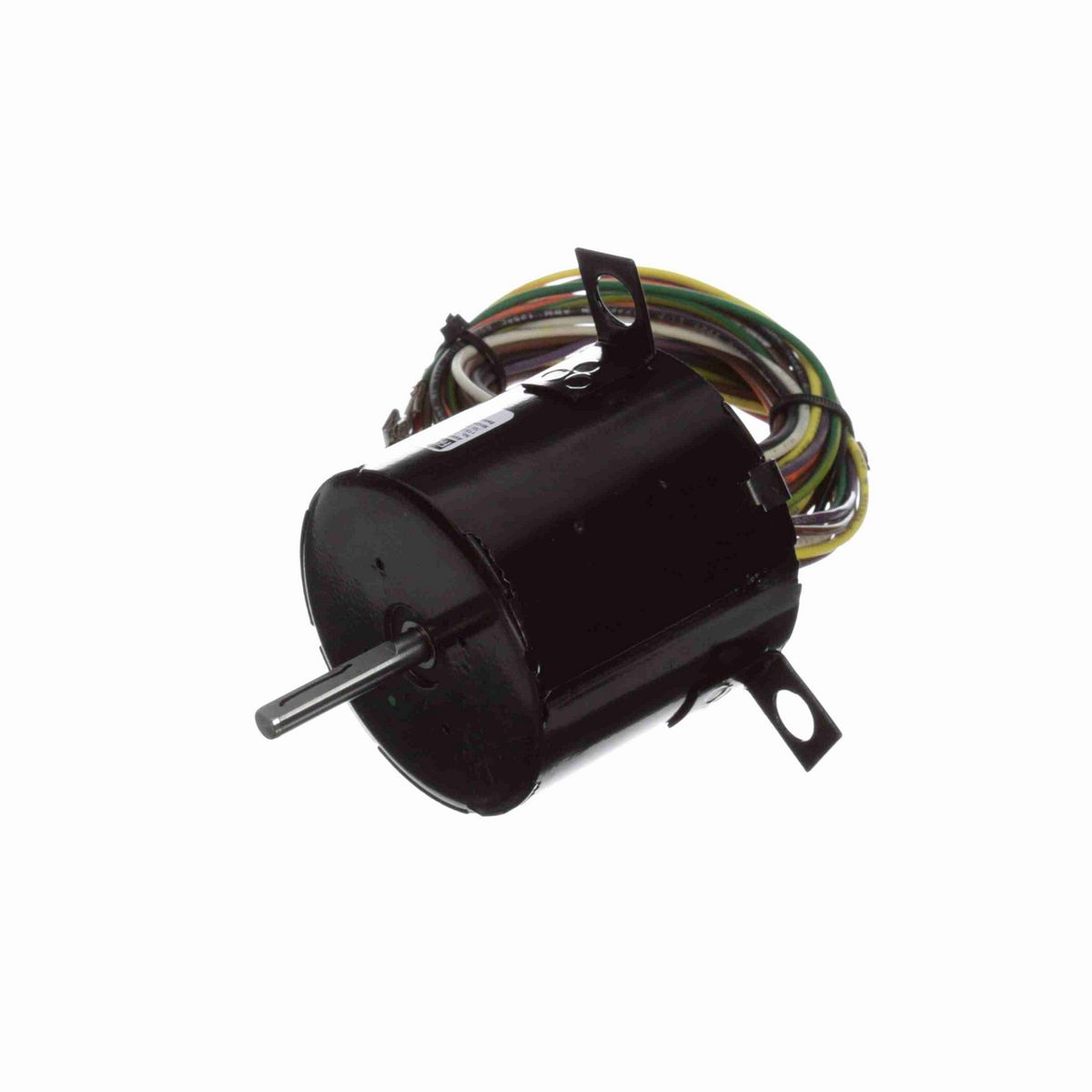

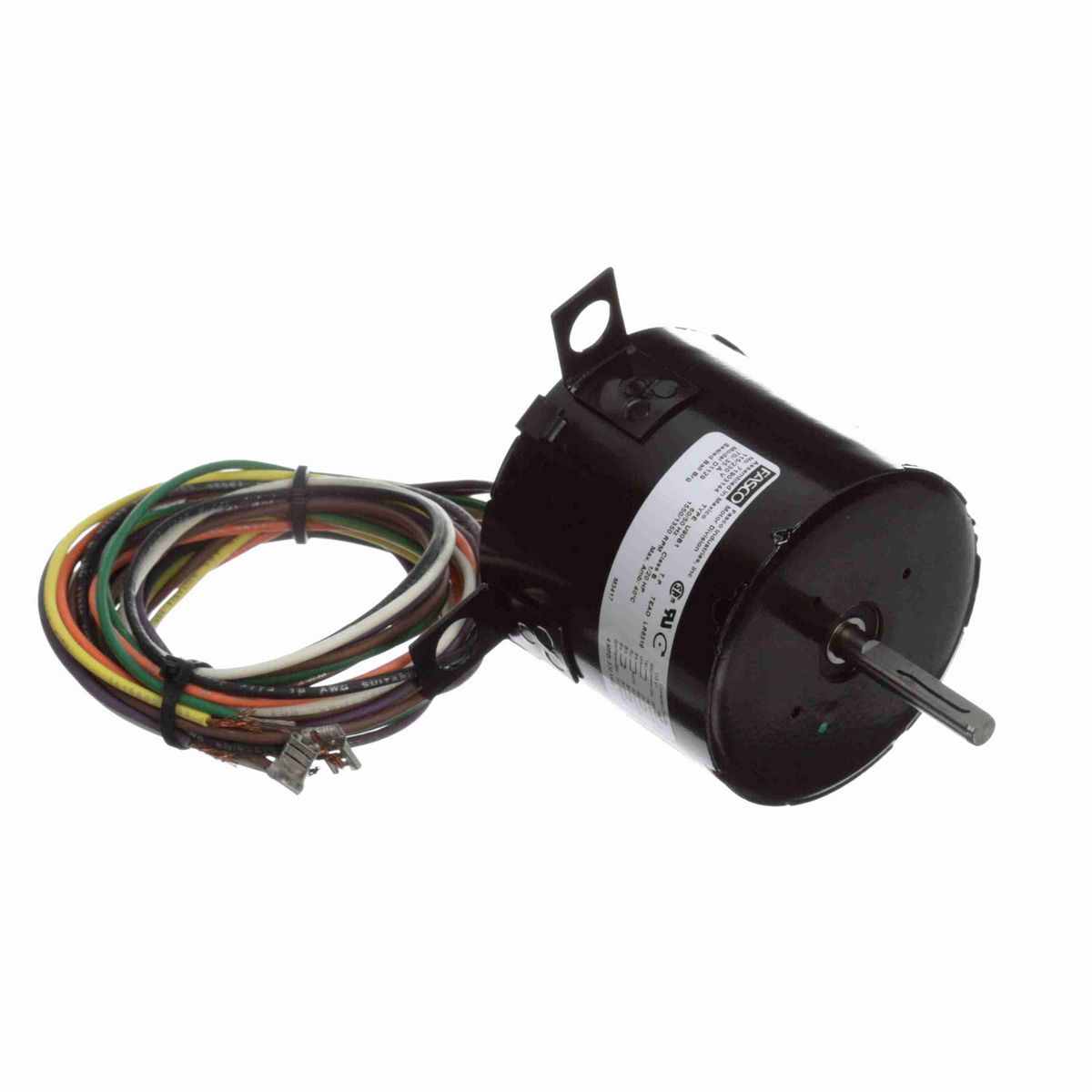

• Refrigeration Fan Motor
• 3.3" Diameter
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sealed Ball Bearing
• .5/16" Diameter Shaft with Flat
• 42" Leads
• Lug Mounting

Nameplate Specifications

Phase	1
Output HP	1/20 Hp
Output KW	0.04 kW
Voltage	115/230 V
Speed	1550/1350 rpm
Service Factor	1
Frame	3.3
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	50 Hz
Current	0.70/0.35 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Shaft End
Mounting	Lug
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	4.86 in
Frame Length	2.95 in
Shaft Diameter	0.312 in
Shaft Extension	1.63 in

General Specifications

UPC	818508021959
Weight	4.00 LB
Packaged Length	6.81 IN
Packaged Width	6.81 IN
Packaged Height	8.50 IN
Country of Origin	Mexico
