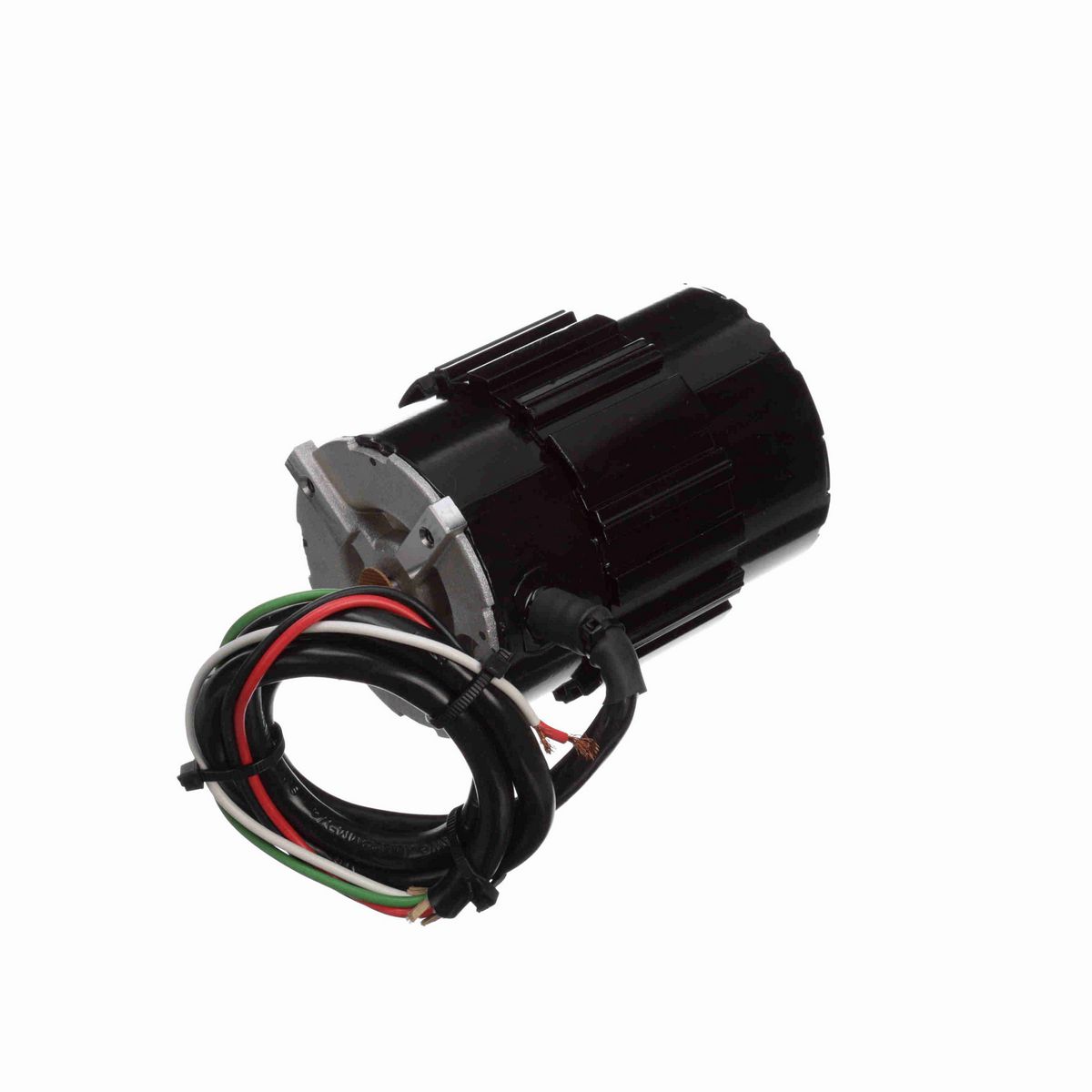

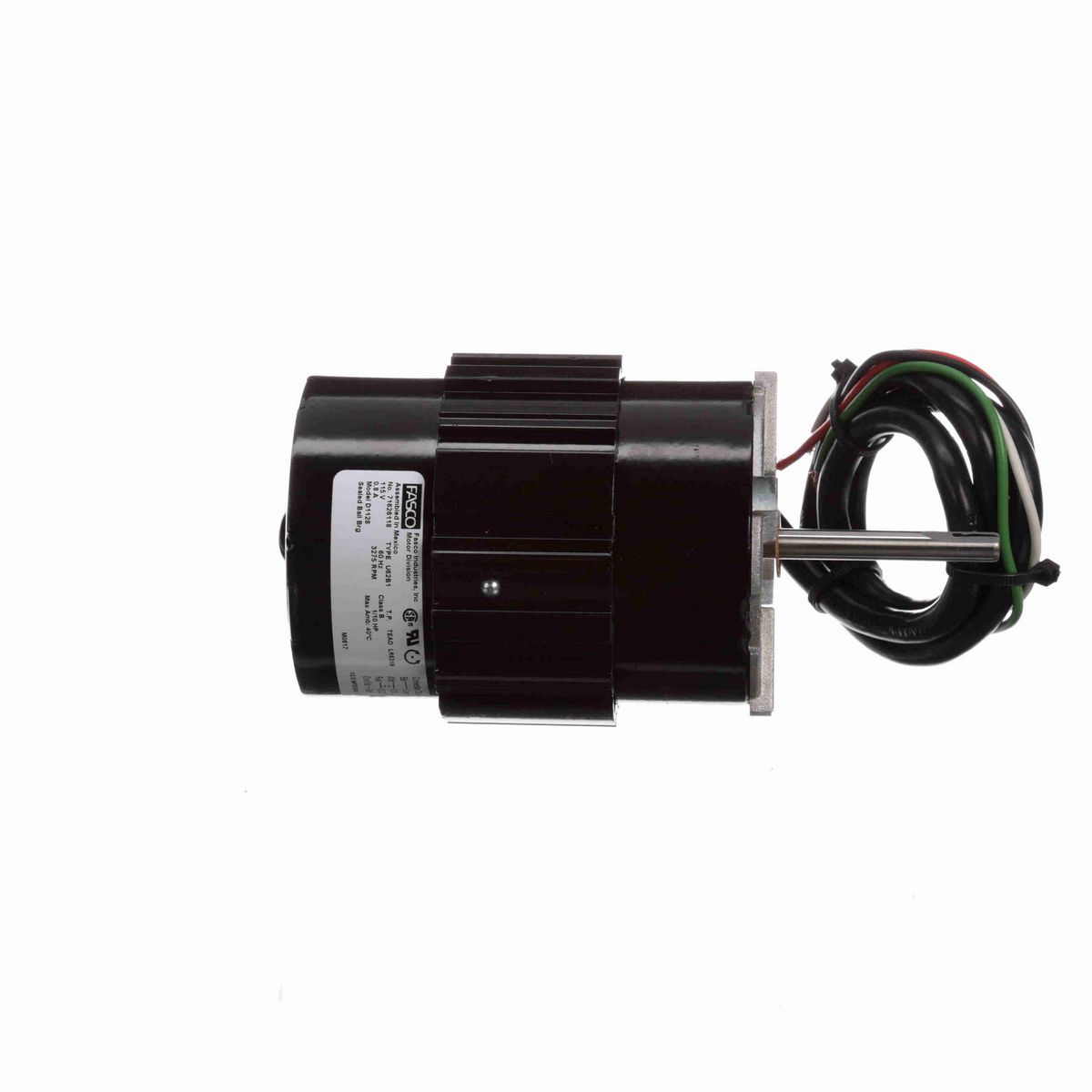

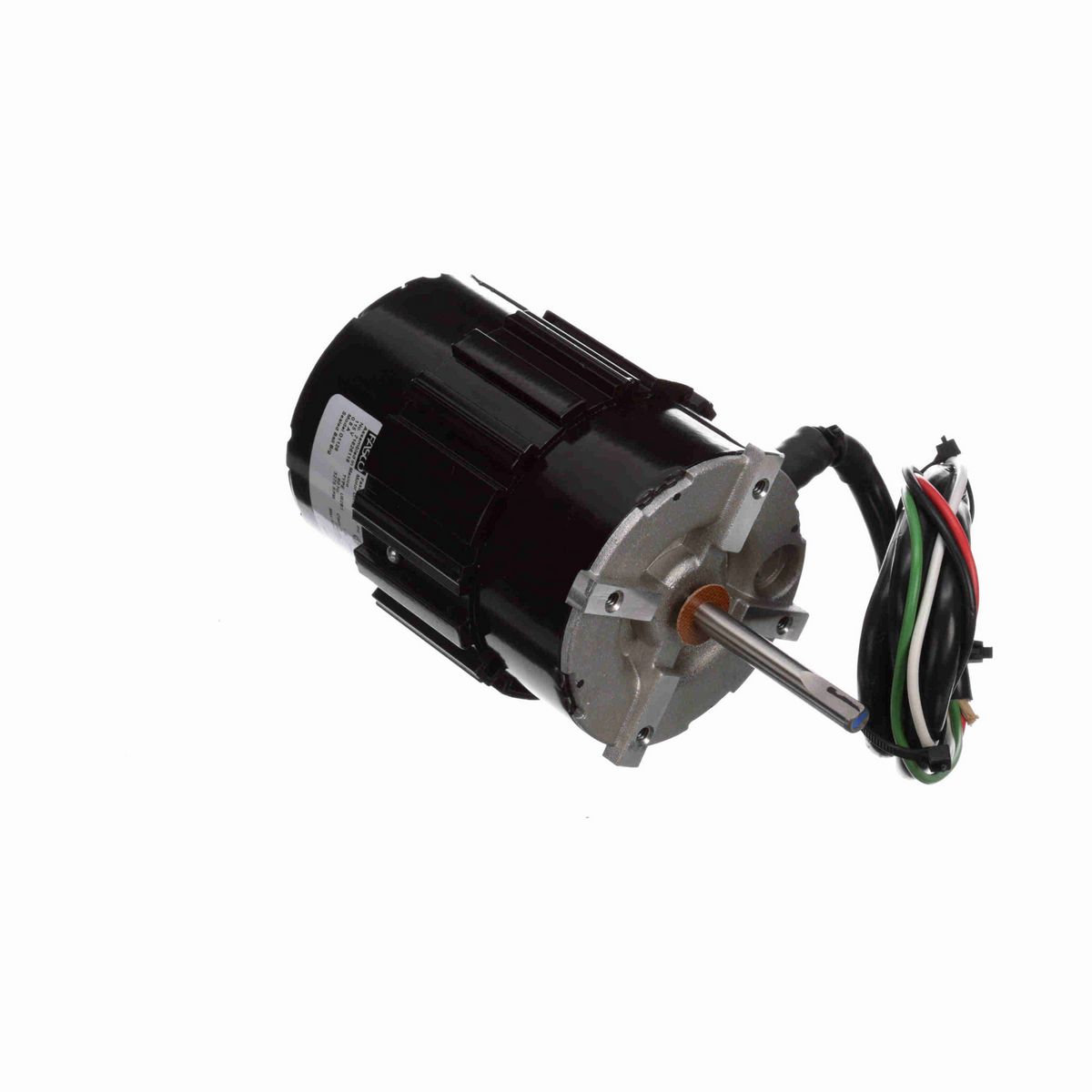

• OEM Direct Replacement Motor
• 3.3" Diameter
• Permanent Split Capacitor (PSC); Capacitor Required: 12.5 Mfd-300 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sealed Ball Bearing
• .5/16" Diameter Shaft with Flat
• 36" Leads
• 4X #10-24 UNC-2B Thread 2.844BC

Nameplate Specifications

Phase	1
Output HP	1/10 Hp
Output KW	0.07 kW
Voltage	115 V
Speed	3275 rpm
Service Factor	1
Frame	3.3
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	.8 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	2
Rotation	Reversible
Mounting	Round Belly Band
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	7.15 in
Frame Length	4.58 in
Shaft Diameter	0.313 in
Shaft Extension	2.30 in

General Specifications

UPC	818508021942
Weight	5.80 LB
Packaged Length	8.75 IN
Packaged Width	5.38 IN
Packaged Height	4.38 IN
Country of Origin	Mexico
