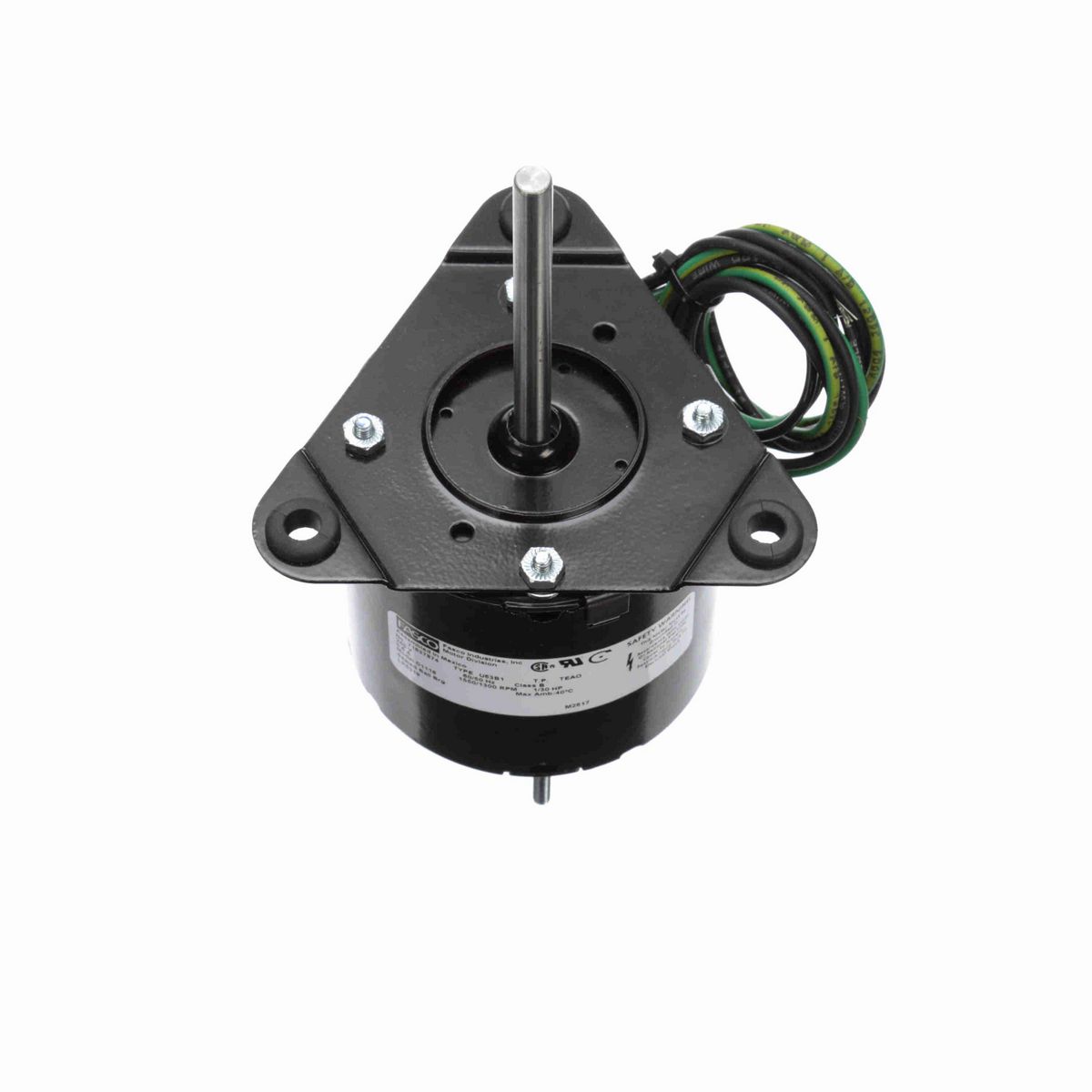

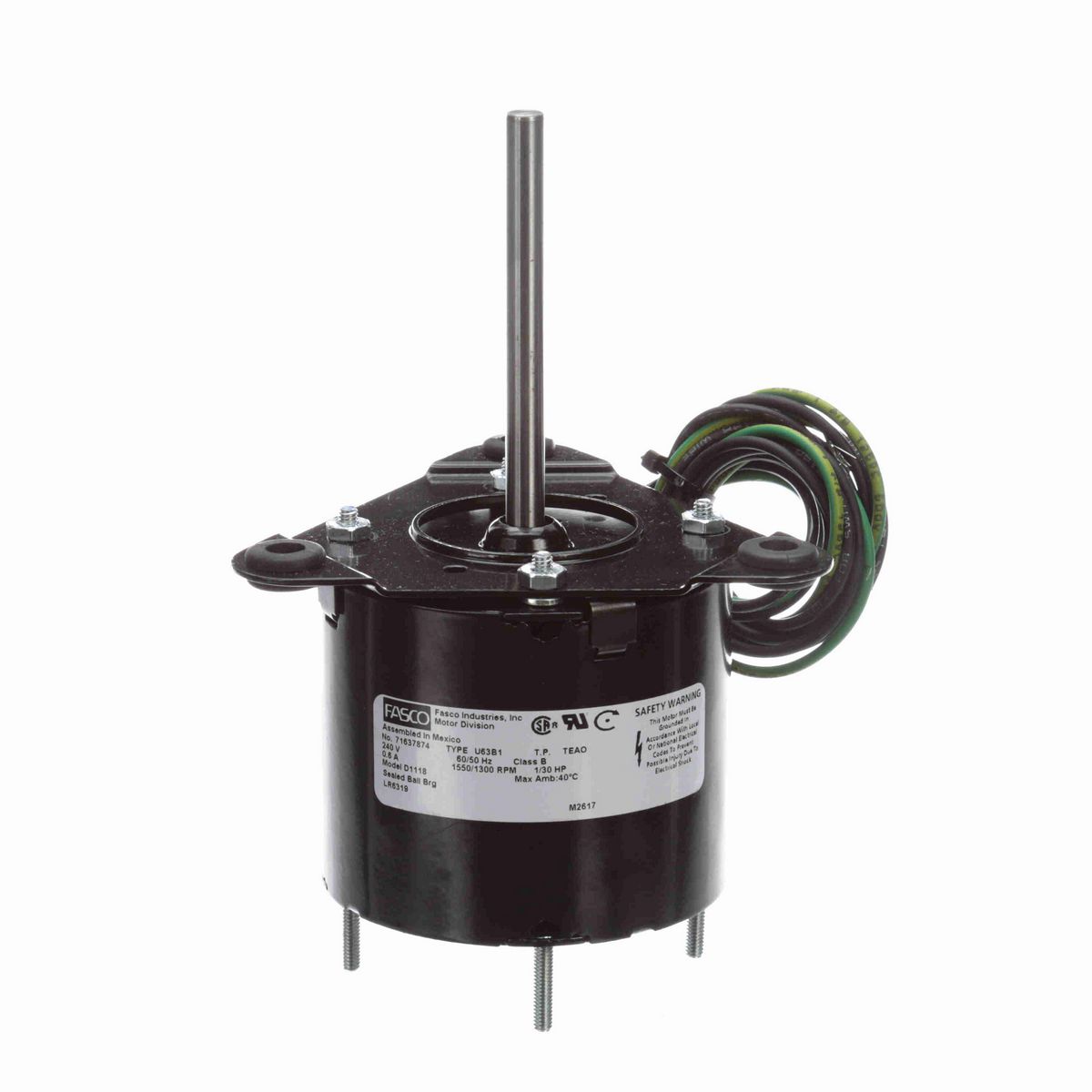

• OEM Direct Replacement Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/16" Diameter Shaft with Flat
• 23" Leads
• Extended Studs Opposite Shaft End, Mounting Plate Shaft End

Nameplate Specifications

Phase	1
Output HP	1/30 Hp
Output KW	0.02 kW
Voltage	240 V
Speed	1550/1300 rpm
Service Factor	1
Frame	3.3
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.60 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Shaft End
Mounting	Lug
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	6.65 in
Frame Length	2.62 in
Shaft Diameter	0.312 in
Shaft Extension	3.5 in

General Specifications

UPC	815585028321
Weight	4.00 LB
Packaged Length	8.00 IN
Packaged Width	5.63 IN
Packaged Height	5.00 IN
Country of Origin	Mexico
