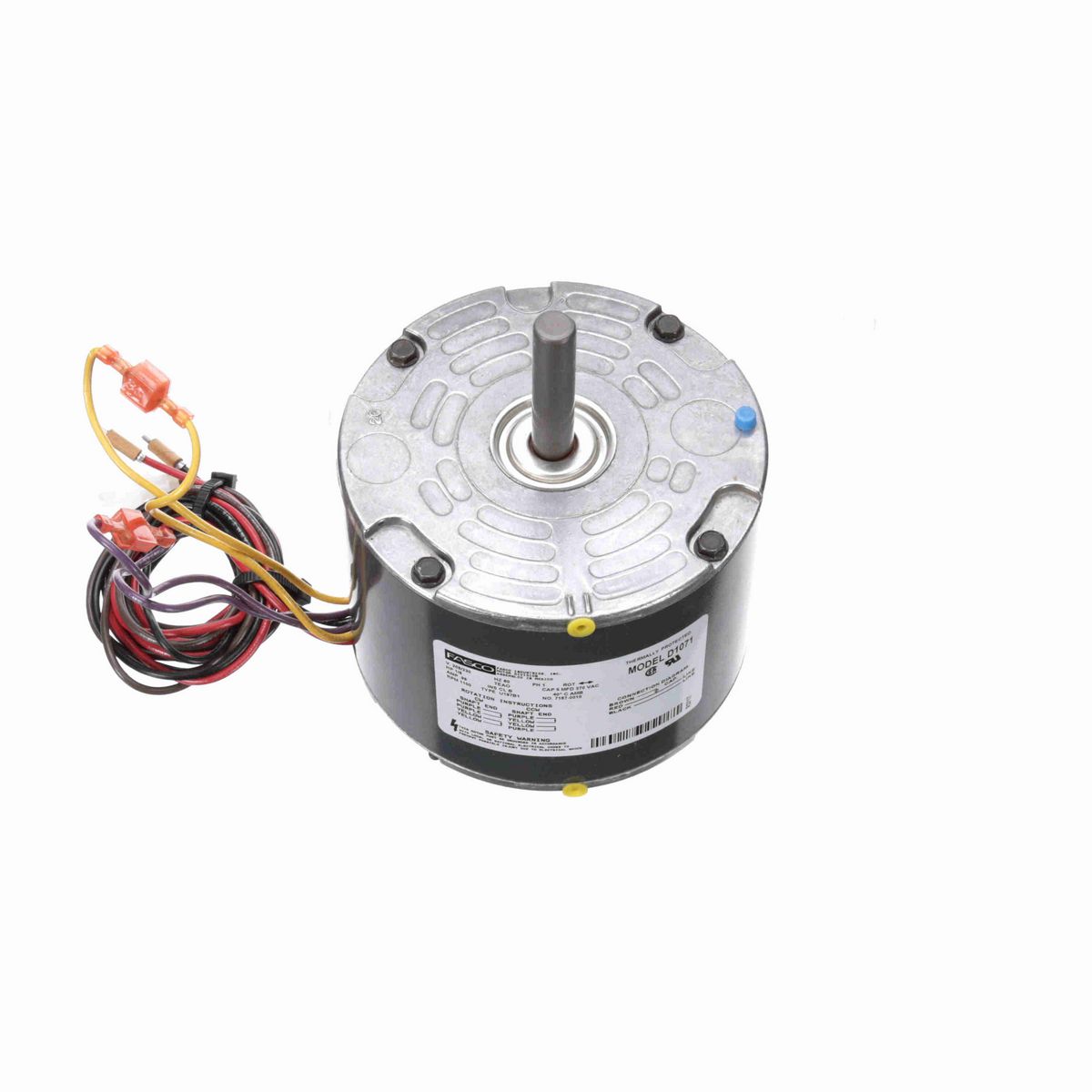

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 42" Leads with Teminal Housing
• Extended Studs Lead End, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/6 Hp
Output KW	0.13 kW
Voltage	208/230 V
Speed	1100 rpm
Service Factor	1
Frame	42
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	0.99 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	6.02 in
Frame Length	3.38 in
Shaft Diameter	0.500 in
Shaft Extension	2.2 in

General Specifications

UPC	815585027898
Weight	8.50 LB
Packaged Length	5.13 IN
Packaged Width	5.13 IN
Packaged Height	10.00 IN
Country of Origin	Mexico
