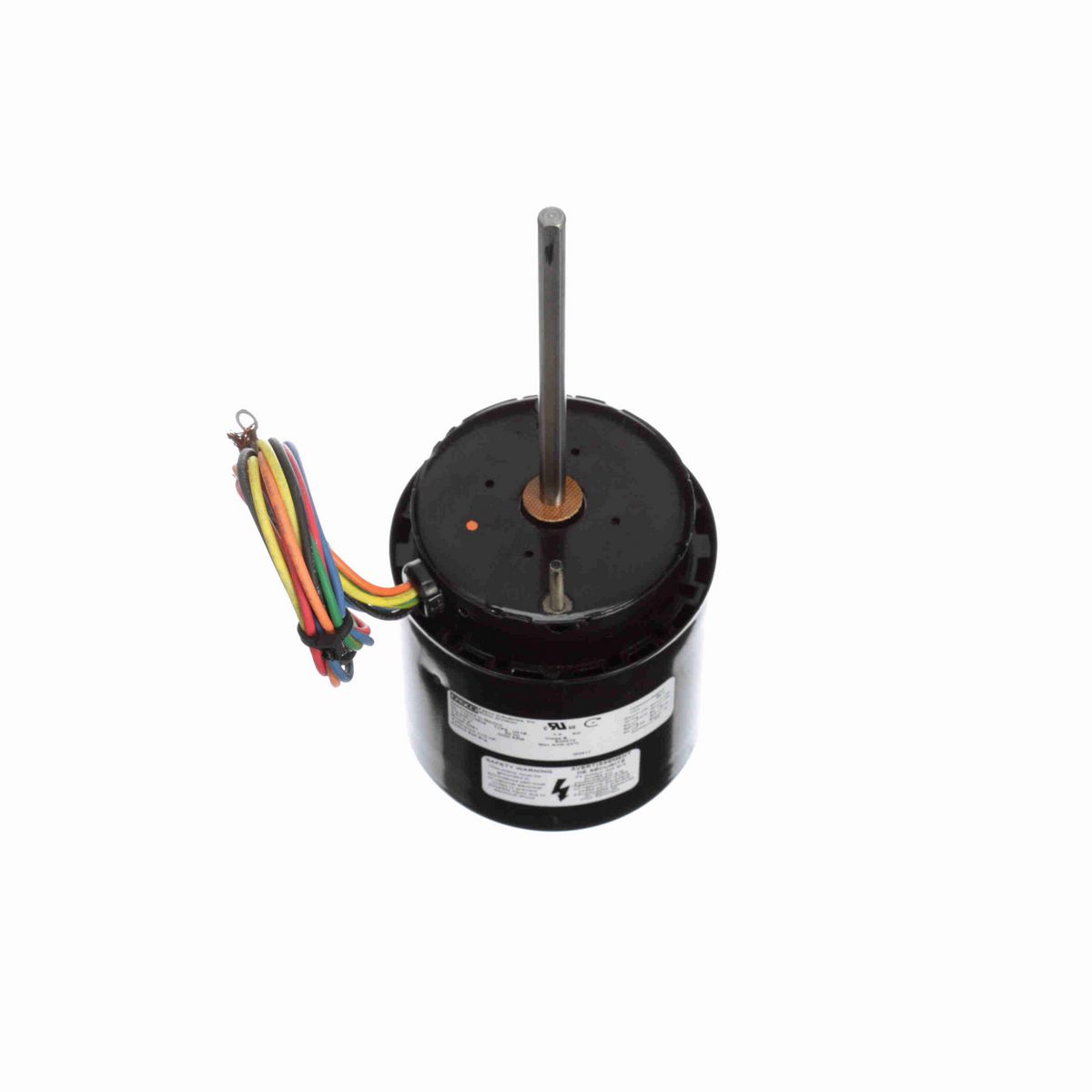

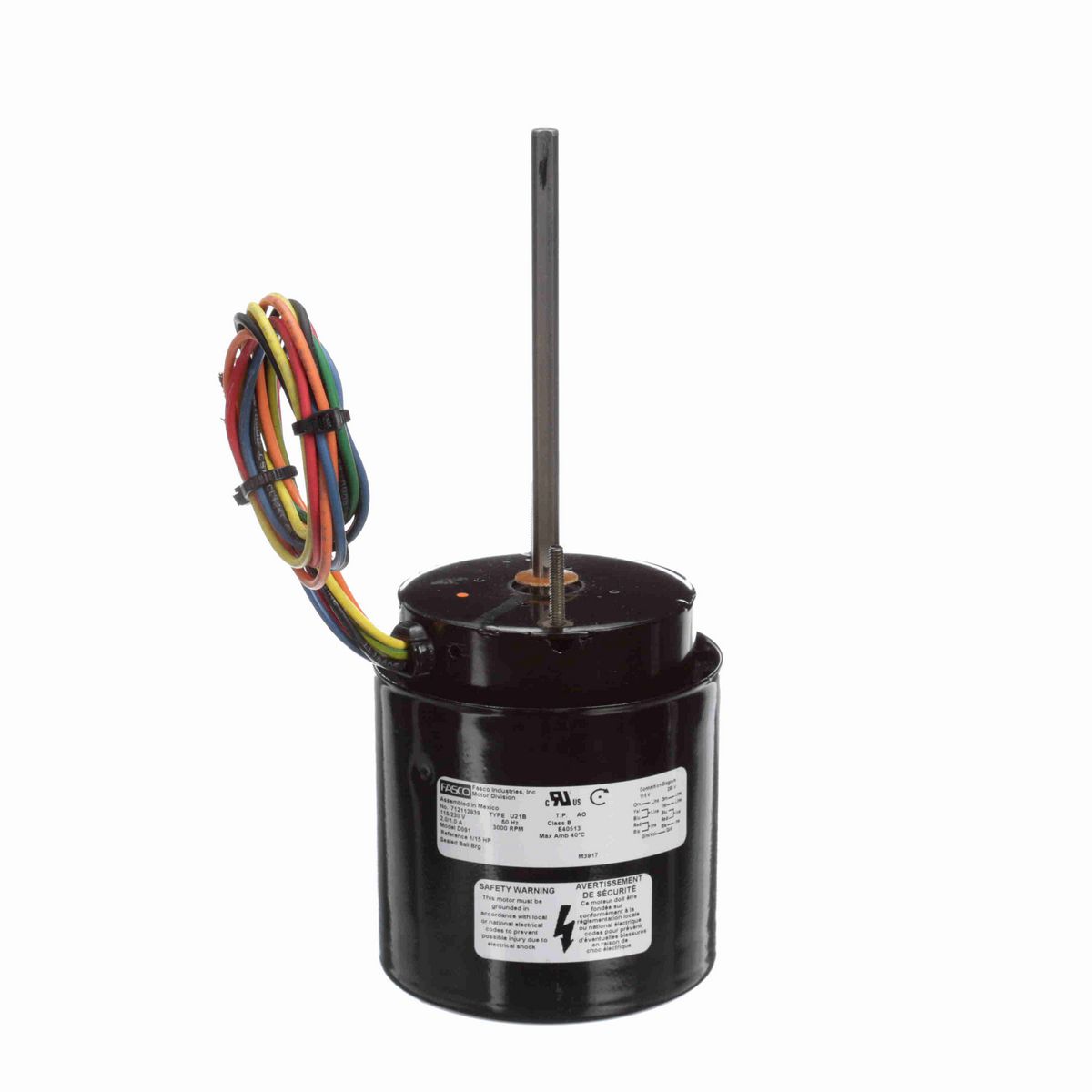

• Fan and Blower Duty Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Totally Enclosed, Internal Fan, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 5/16" Diameter Shaft with Flat
• 20" Leads
• Extended Studs, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/15 Hp
Output KW	0.05 kW
Voltage	115/230 V
Speed	3000 rpm
Service Factor	1
Frame	3.3
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.00/1.00 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	N
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	2
Rotation	Clockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	9.55 in
Frame Length	4.50 in
Shaft Diameter	0.312 in
Shaft Extension	5.0 in

General Specifications

UPC	815585027409
Weight	5.00 LB
Packaged Length	4.13 IN
Packaged Width	4.13 IN
Packaged Height	12.63 IN
Country of Origin	Mexico
