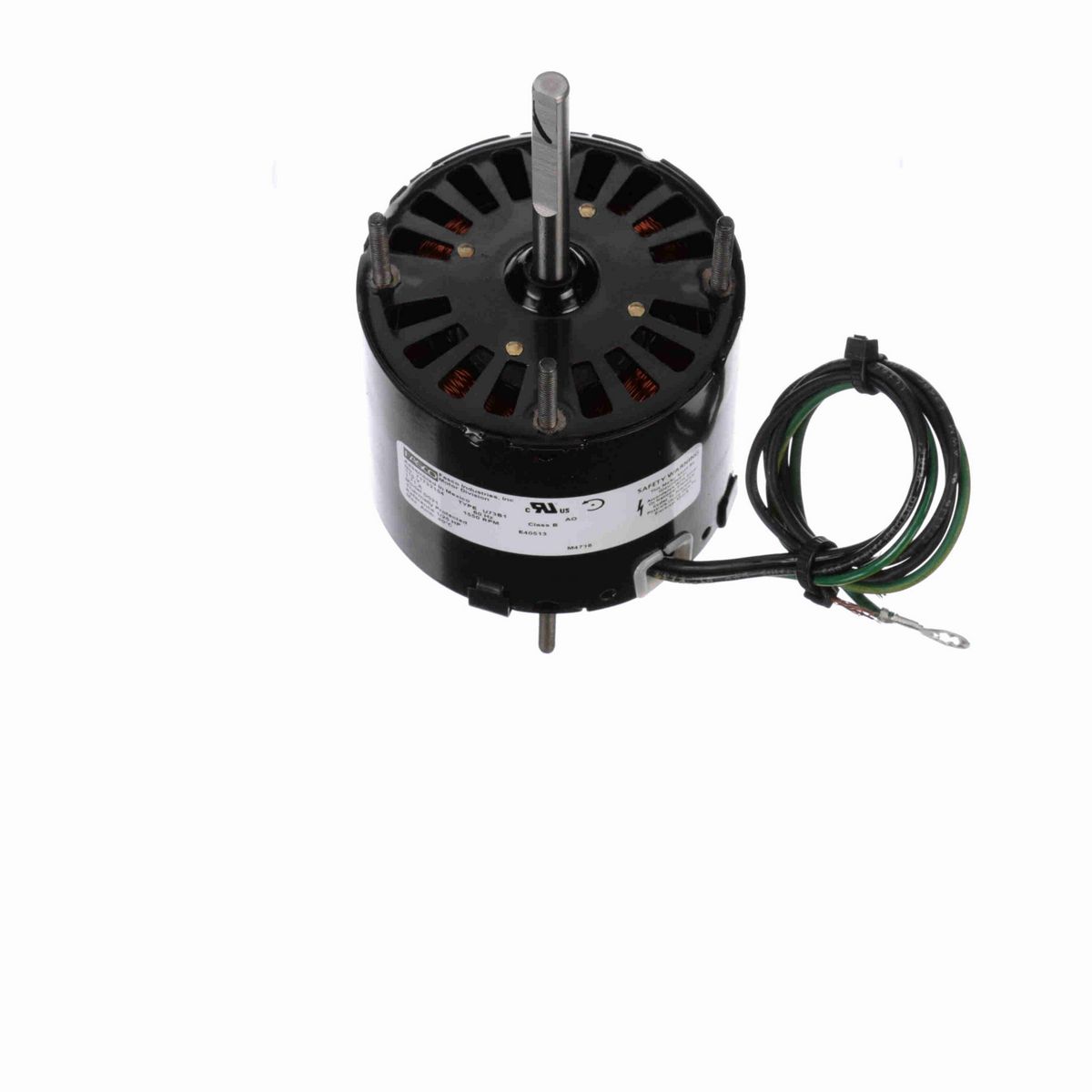

• Fan and Blower Duty Motor
• 3.3" Diameter
• Shaded Pole
• Thermally Protected
• Open Shaft End End-Frame and Lead End End-Frame, Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 5/16" Diameter Shaft with Flat
• 12" Leads
• Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/25 Hp
Output KW	0.03 kW
Voltage	115 V
Speed	1550 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.71 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Shaft End
Mounting	Extended Studs
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Flat
Overall Length	5.62 in
Frame Length	2.81 in
Shaft Diameter	0.312 in
Shaft Extension	2.56 in

General Specifications

UPC	815585027249
Weight	3.00 LB
Packaged Length	8.00 IN
Packaged Width	3.38 IN
Packaged Height	3.38 IN
Country of Origin	Mexico
