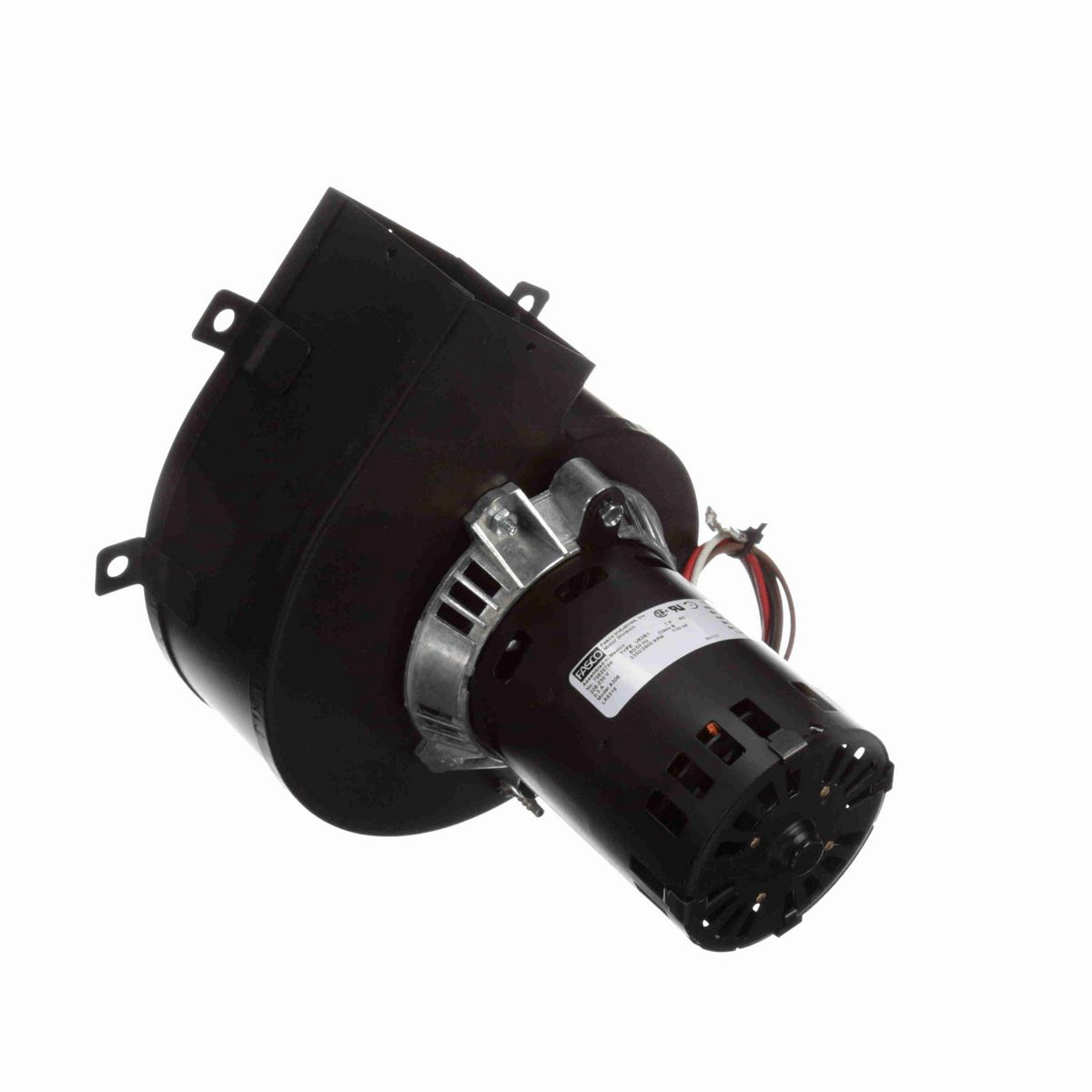

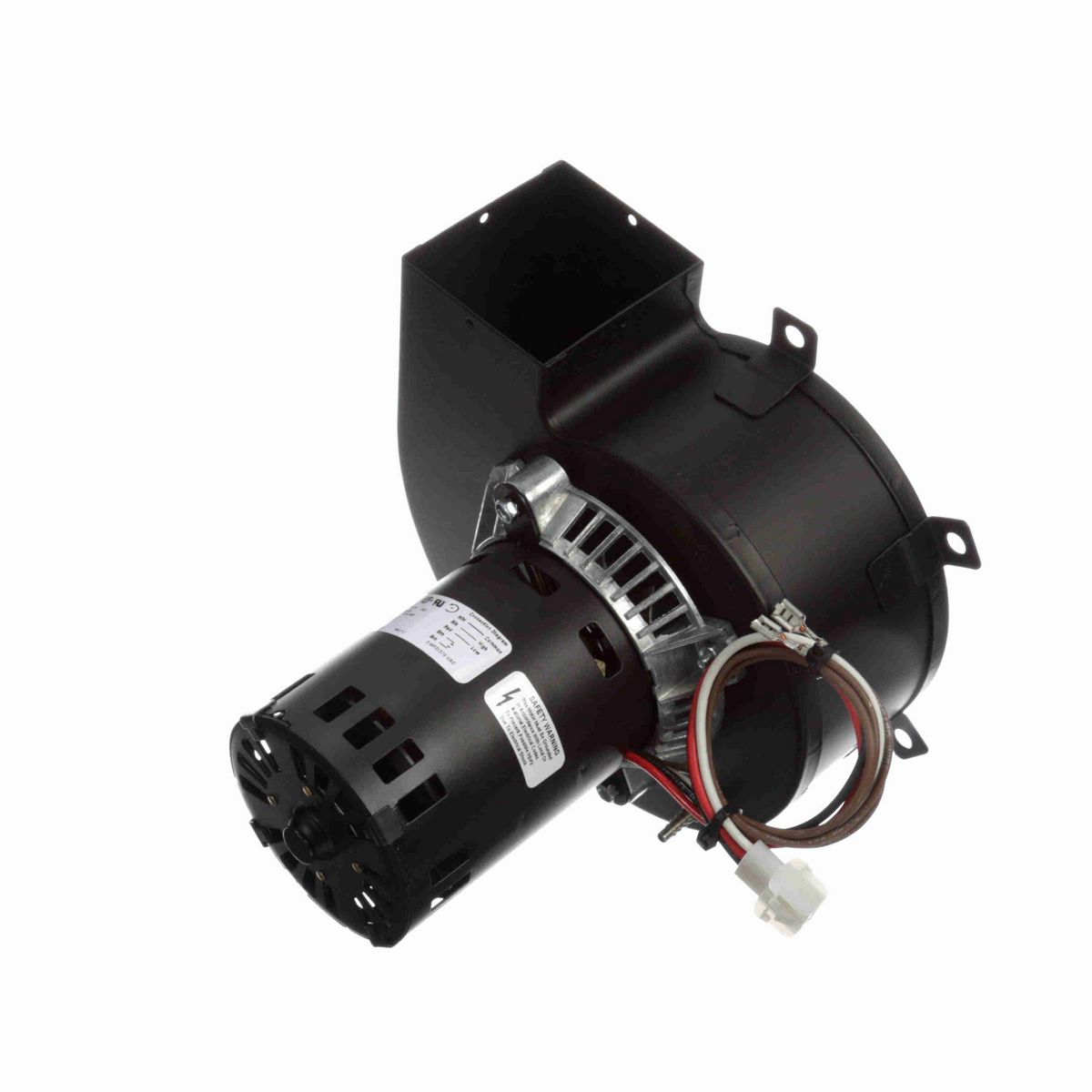

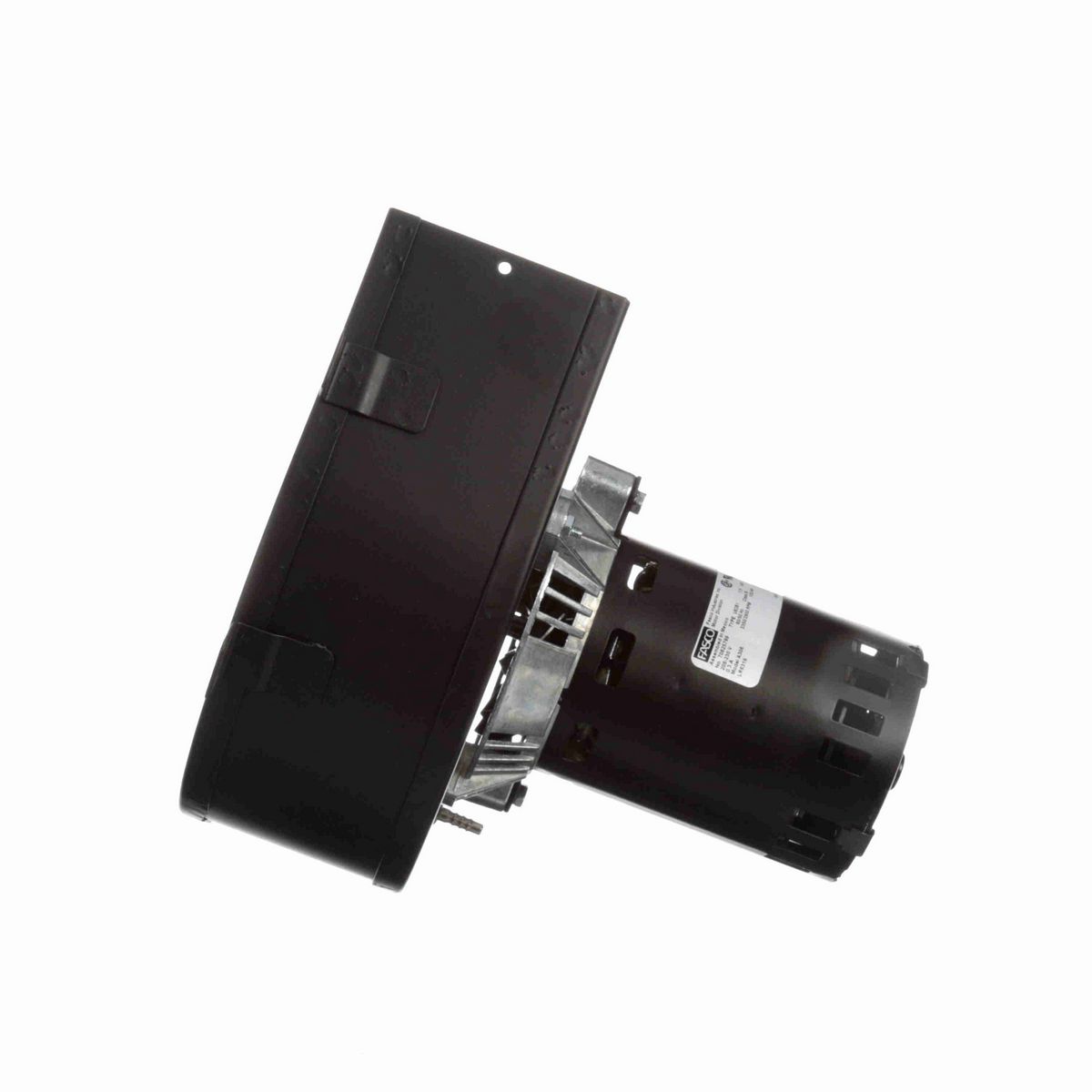

• OEM Direct Replacement - Draft Inducer Blower
• 3.3" Diameter
• Permanent Split Capacitor (PSC); Capacitor Required: 3 Mfd-370 Volts (Not Supplied with Blower)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 11-9" Leads with Connector, 15-13" Capacitor Leads with F Spade Terminals

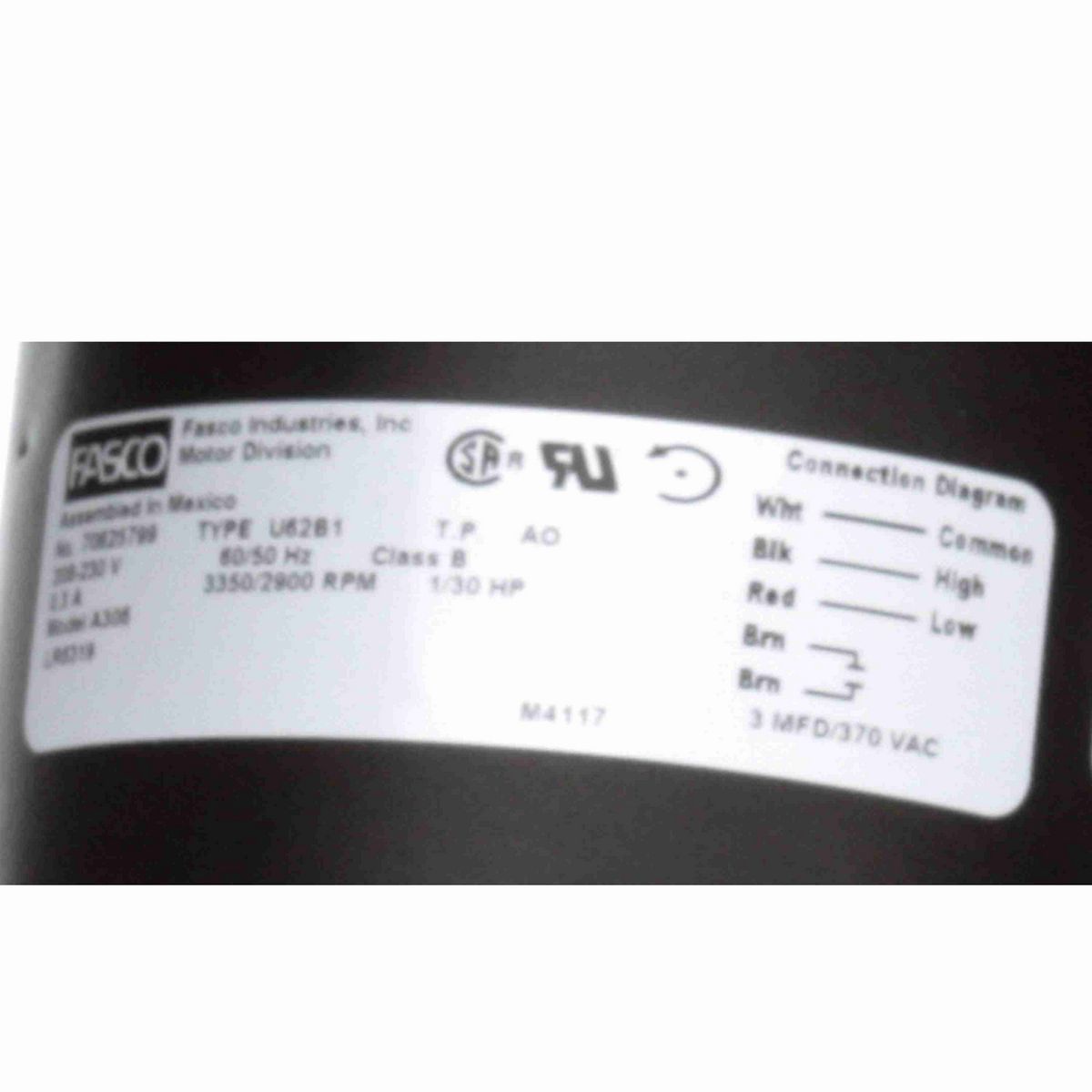

Nameplate Specifications

Voltage	208-230 V
Motor Type	Permanent Split Capacitor
Thermal Protection	Thermally
Speed	3350/2900 rpm
Current	0.3 A
Number of Speeds	2
Frequency	60/50 Hz
Phase	1
Ambient Temperature	40 °C
UL	Yes
Insulation Class	B
CSA	Yes

Technical Specifications

Blower Outlet Shape	Rectangle
Motor Enclosure	Open Fan Cooled
Blower Outlet Flange	No
Bearing Type	Sleeve

General Specifications

UPC	815585026631
Weight	6.40 LB
Packaged Length	11.38 IN
Packaged Width	8.25 IN
Packaged Height	9.88 IN
Country of Origin	Mexico
