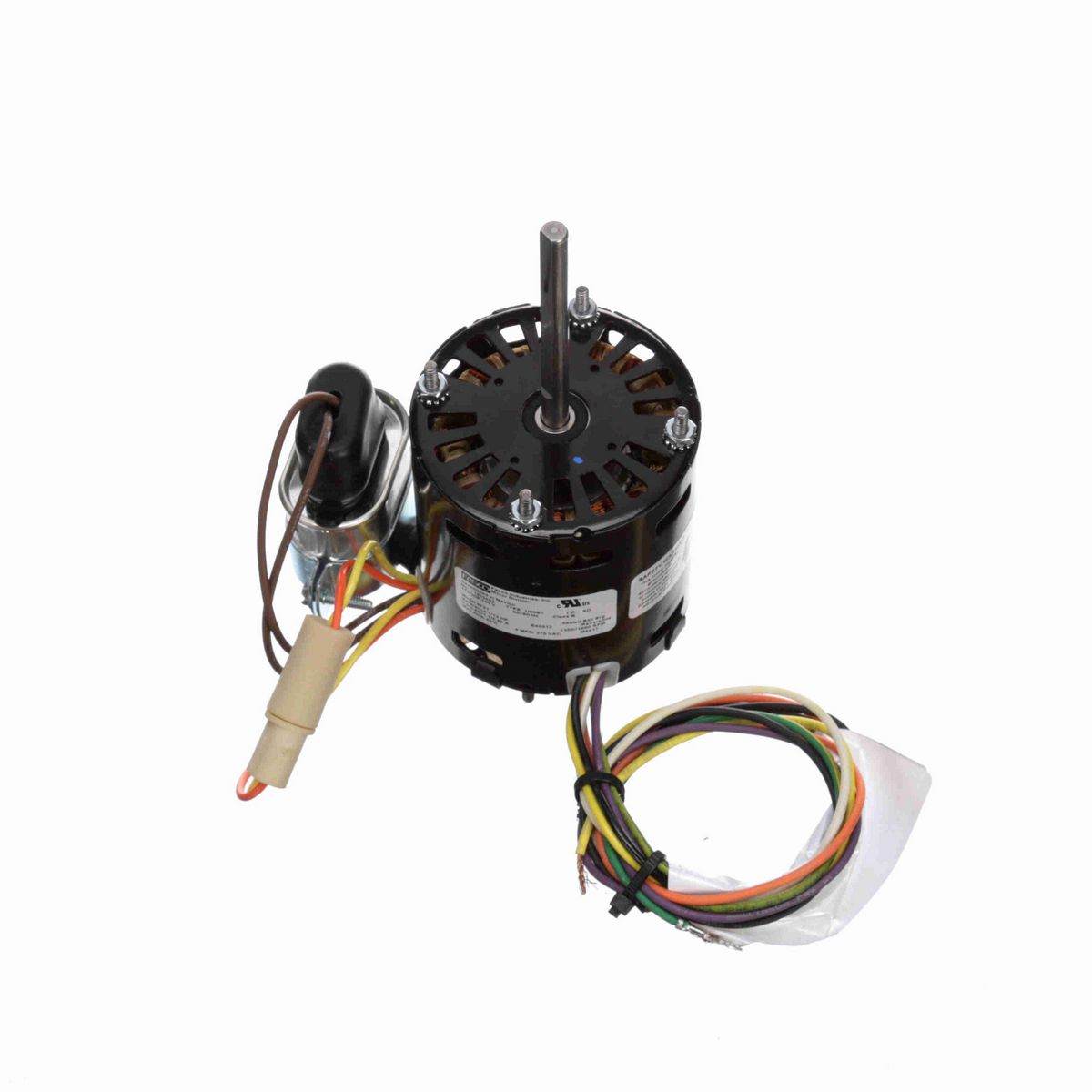

• 3-IN-1 (1/12-1/15-1/20HP) - Refrigeration Motor
• 3.3" Diameter
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient, 50/60 Hertz
• Ball Bearing
• 5/16" Diameter Flat Shaft
• 21" Leads
• Extended Studs Shaft End and Lead End, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/12 Hp
Output KW	0.06 kW
Voltage	115/208-230 V
Speed	1350//1550 rpm
Service Factor	1
Frame	3.3
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	50//60 Hz
Current	0.9/0.43//1.1/0.49 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Extended Studs
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Steel
Shaft Type	Flat
Overall Length	6.86 in
Frame Length	3.56 in
Shaft Diameter	0.312 in
Shaft Extension	3.25 in

General Specifications

UPC	815585020578
Weight	5.00 LB
Packaged Length	8.81 IN
Packaged Width	5.88 IN
Packaged Height	5.81 IN
Country of Origin	China
