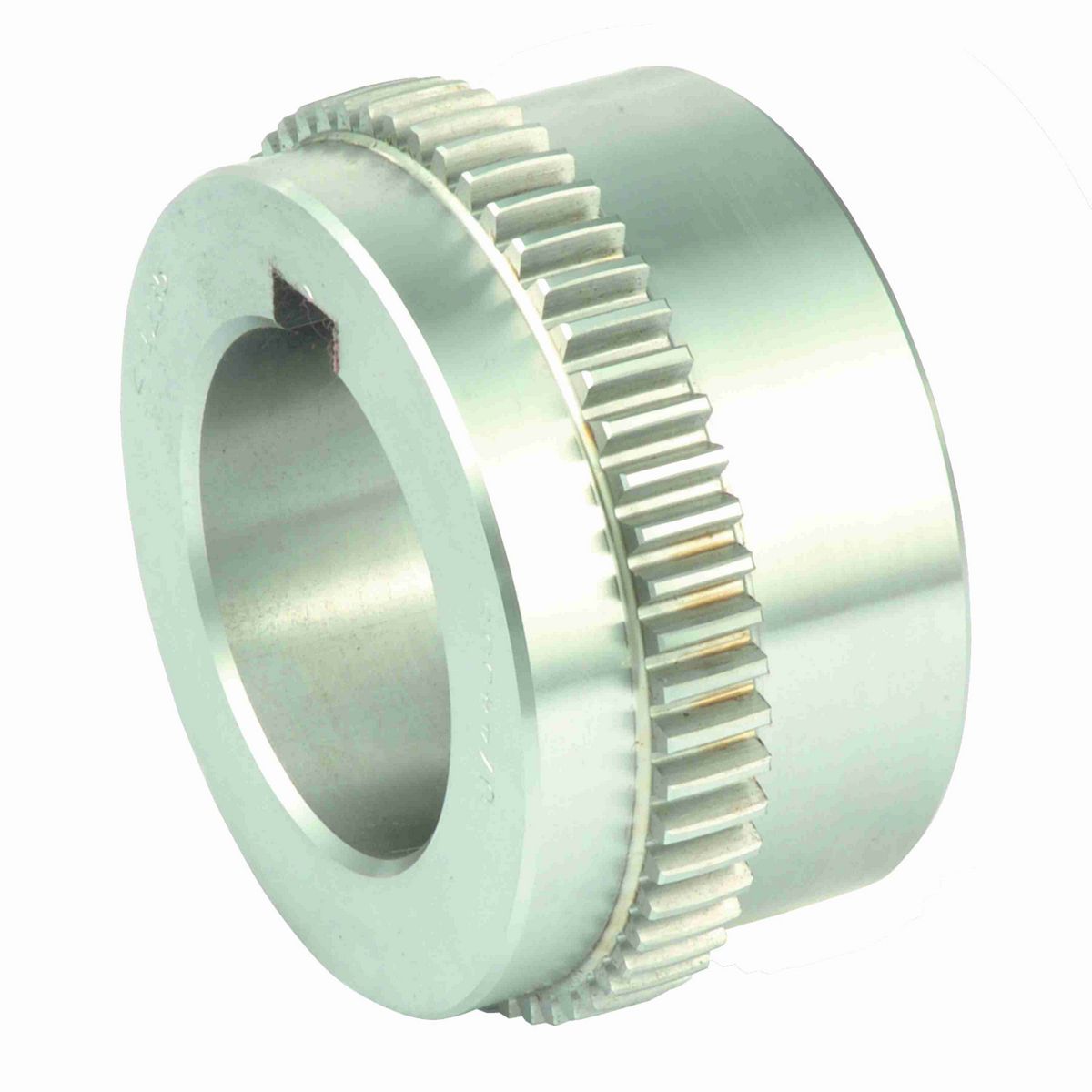

• Falk G Series Stock Flex Hubs size(s) 1020G with a 4.140-inch outside barrel diameter and 2.44-inch length for gear couplings.

Technical Specifications

Hub Straight Bore Diameter [Min] (in)	1.8735 in
Product	G Series Standard Bore Flex Hubs
Coupling Size	1020G
Hub Type	Flex
Series	Hubs-Flex
Number of Set Screws	0
Keyway Width (in)	0.5 in
Keyway Depth (in)	0.25 in
Hub Straight Bore Diameter [Max] (in)	1.874 in
Keyway Fit	Commercial
Number of Keyways	1
Hub Material	Steel
Hub Style	Standard
Hub Length through Bore (in)	2.44 in
Hub Straight Bore Diameter [Nom] (in)	1.875 in

General Specifications

UPC	782934005039
Weight	9.00 LB
Packaged Length	12.00 IN
Packaged Width	12.00 IN
Packaged Height	12.00 IN
HTC	8483908010
Country of Origin	China
