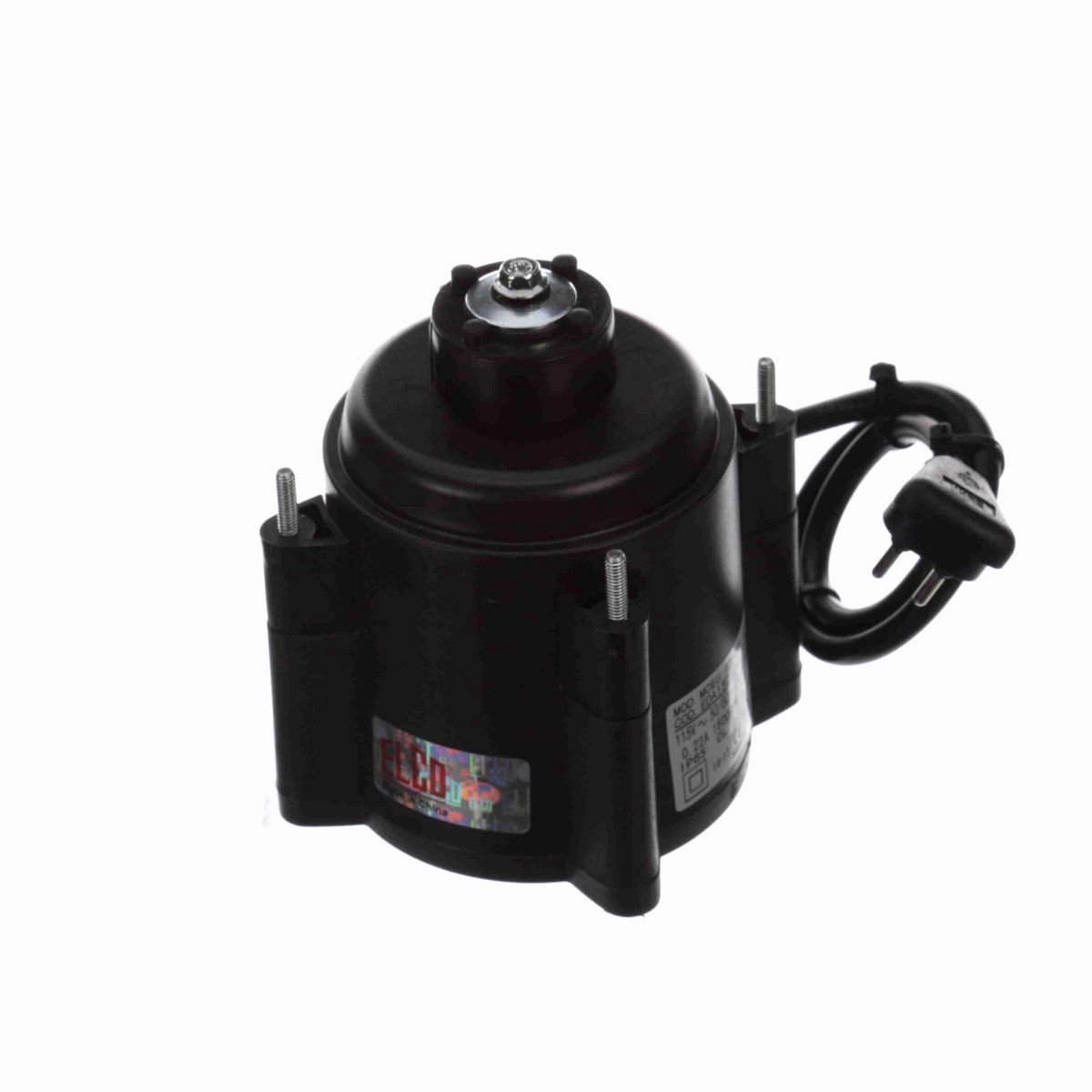

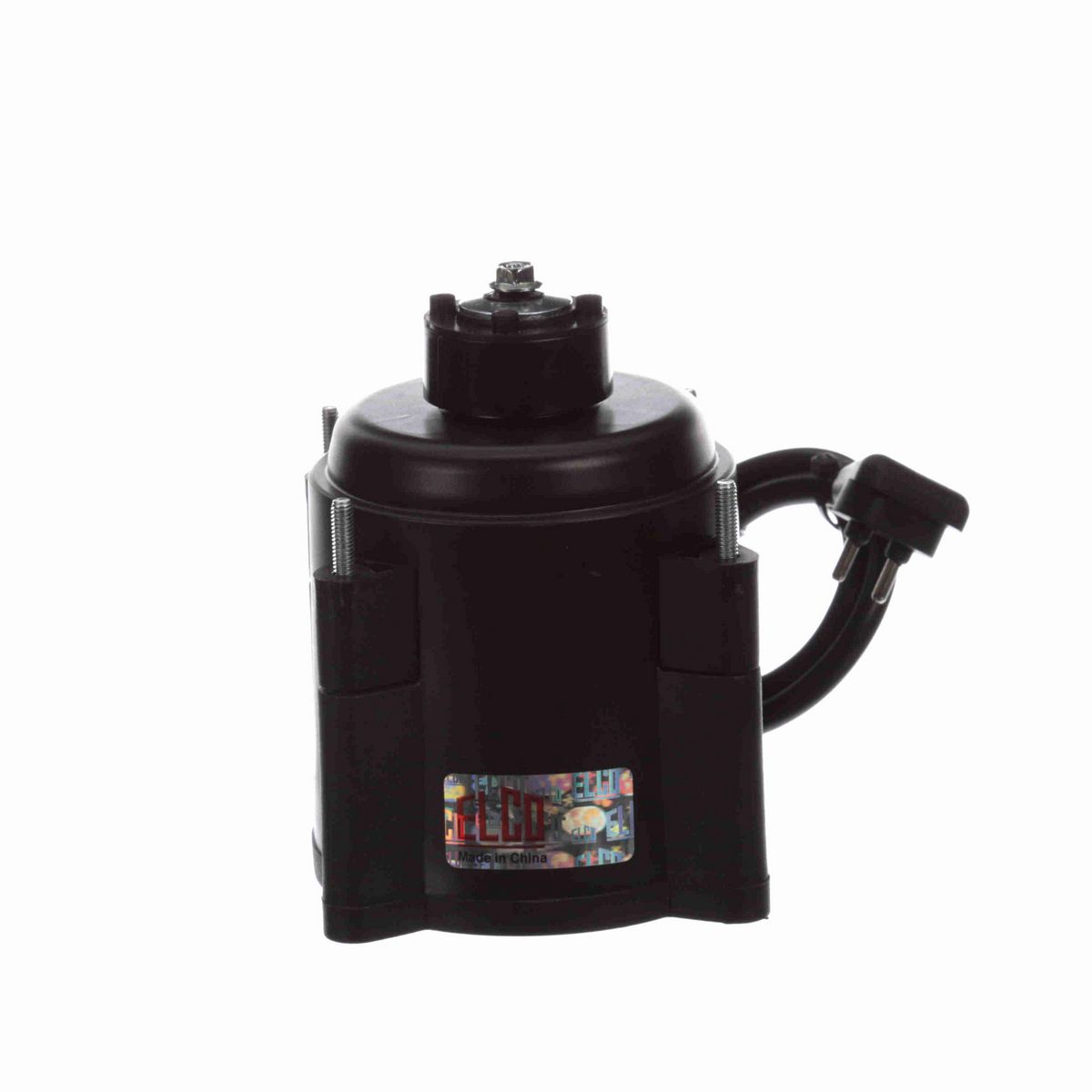

• OEM Direct Replacement Motor
• 3.3" Diameter
• Electronically Commutated (ECM)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, IP65
• Ball Bearing
• Shaft with 4 End-Studs
• 16" Leads with 2-Pin Molded Plug
• Shell Mounted 4 Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output Watts	15 W
Voltage	115 V
Speed	1600 rpm
Frame	UNIT BEARING
Enclosure	Totally Enclosed Air Over
Thermal Protection	No Protection
Ambient Temperature	60 °C
Frequency	60 Hz
Current	0.22 A
Duty	Continuous Air Over
Insulation Class	B
UL	Yes
CSA	Y
CE	Y

Technical Specifications

Electrical Type	Electronically Commutated Motor
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Shaft End
Mounting	Extended Studs
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Plastic
Shaft Type	Flat
Overall Length	4.00 in
Frame Length	3.38 in
Shaft Diameter	0.275 in
Shaft Extension	0.6 in

General Specifications

UPC	818508023687
Weight	2.35 LB
Packaged Length	5.00 IN
Packaged Width	5.31 IN
Packaged Height	5.00 IN
