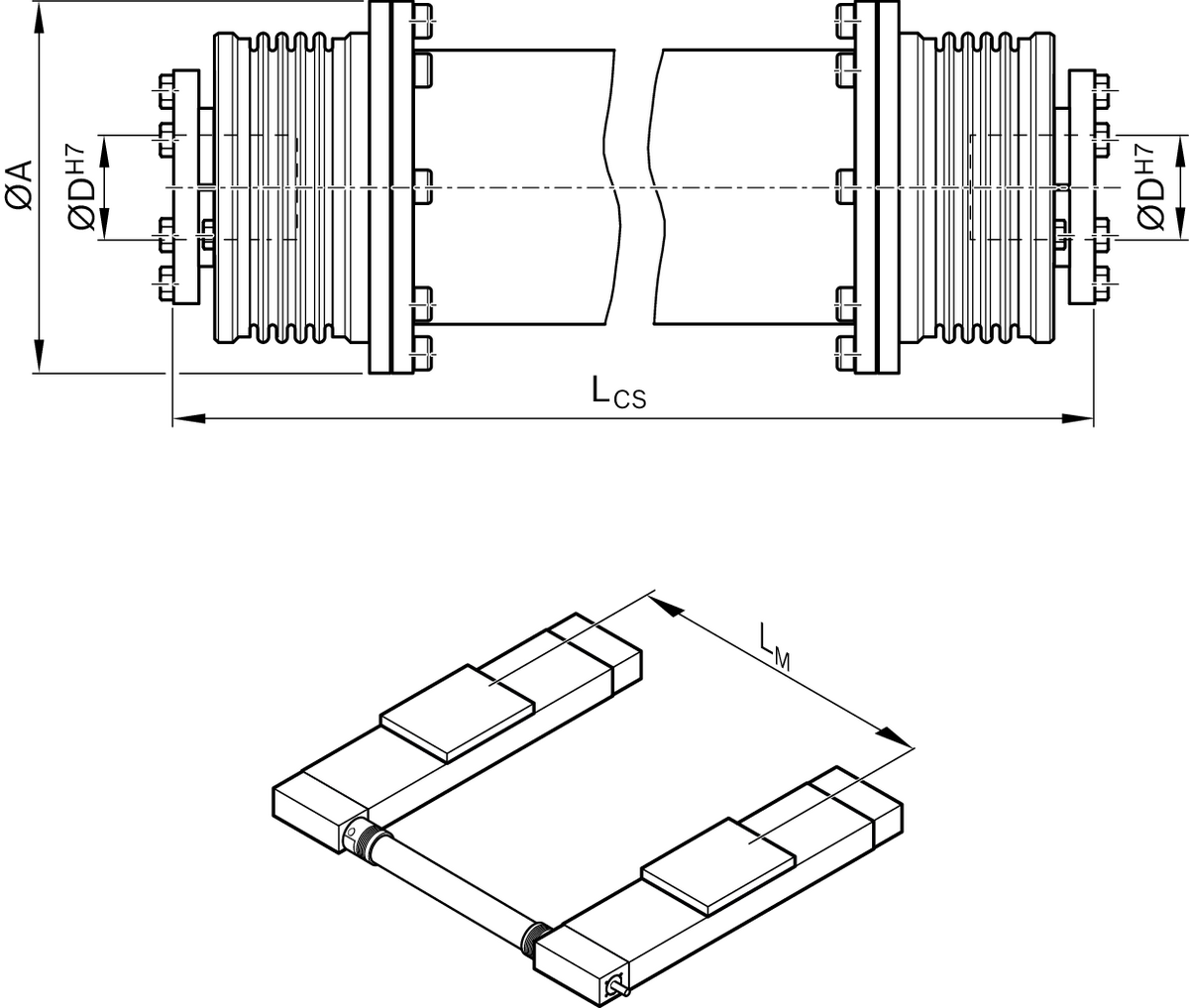

Соединительный вал Bosch Rexroth MKR-140 / -165 [R039151011]

Mechanical accessories for linear axes

Connecting shafts

Nominal size [mm]

140,165

Outer diameter D [mm]

35

Axial flexibility ∆ka [mm]

2.6

Torque [Nm]

400

Weight [kg]

29.43

Overall length of the connecting shaft Lcs

LM – 220 mm

Mass m

12.8 + 0.0115 x (Lcs – 180)

Mass moment of inertia

32320 + 38.5 x (Lcs – 180)

Shaft design for connecting shafts

1

Angled flexibility ∆kw [°]

1

Dimension A (profiled rail systems) [mm]

149

Dimension D [mm]

35

Dimension Lcs max. [mm]

4000

Dimension Lcs min. [mm]

280
