Соединительный вал Bosch Rexroth MKR-080 / MLR-080 [R039151014]

Mechanical accessories for linear axes

Connecting shafts

Nominal size [mm]

80

Outer diameter D [mm]

18

Torque [Nm]

60

Weight [kg]

1.8

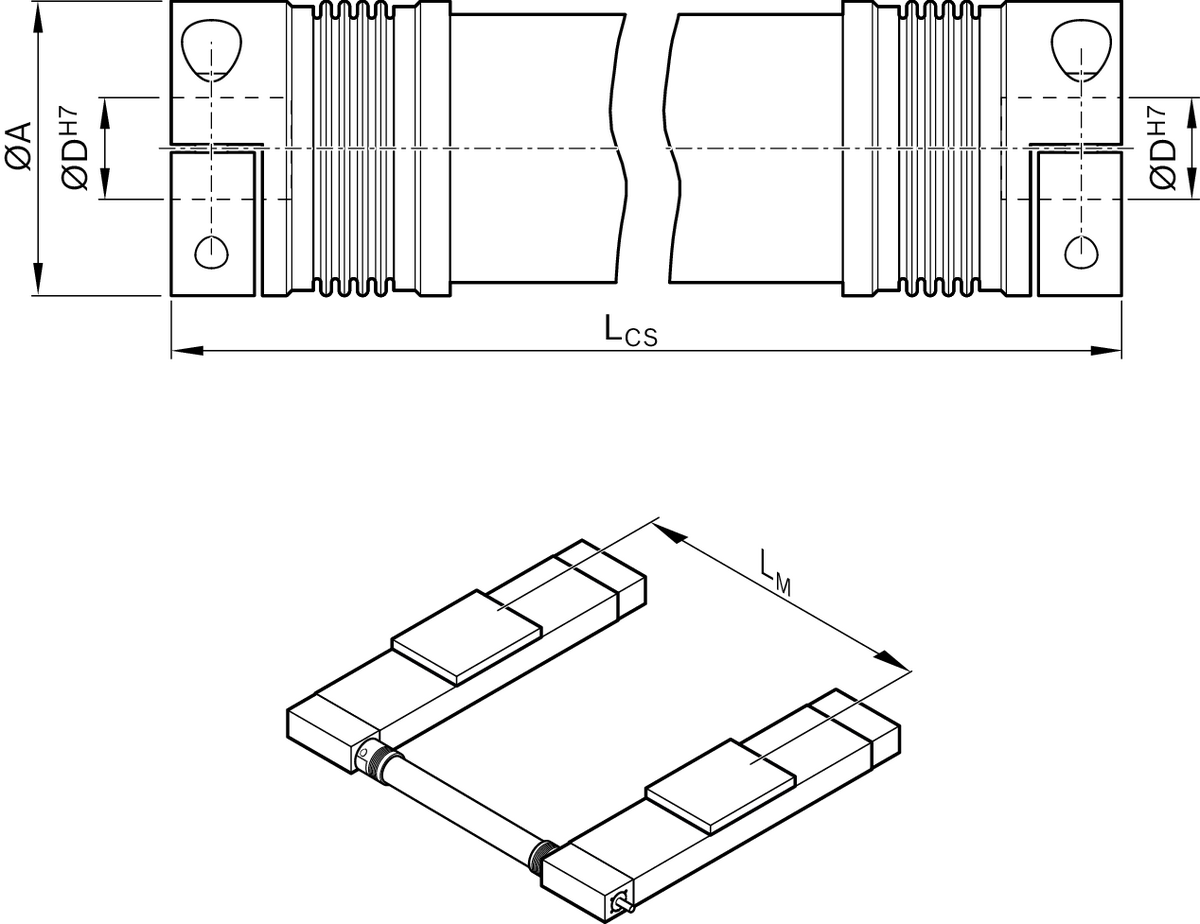

Overall length of the connecting shaft Lcs

LM – 144 mm

Mass m

0.85 + 0.00145 x (Lcs – 120)

Mass moment of inertia

510 + 1.18 x (Lcs – 120)

Shaft design for connecting shafts

4

Dimension A (profiled rail systems) [mm]

66

Dimension D [mm]

18

Dimension Lcs max. [mm]

4000

Dimension Lcs min. [mm]

171
