Соединительная пластина Bosch Rexroth CKK 9-70 BG [R037520010]

Mechanical accessories for linear axes

Connection plates

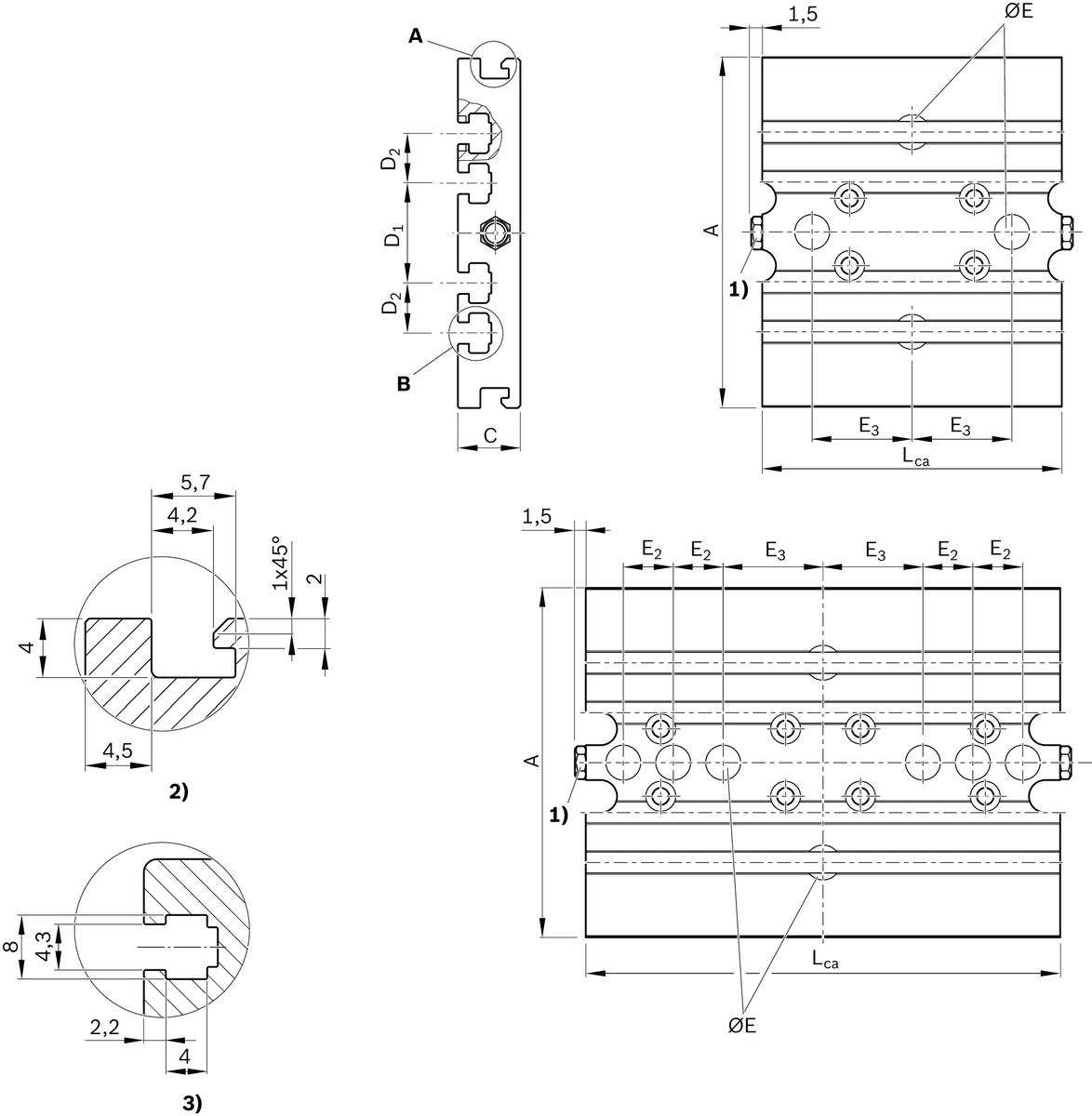

Nominal size [mm]

70

Weight [kg]

0.17

Length of the carriage Lca [mm]

95

Dimension A (profiled rail systems) [mm]

70

Dimension C [mm]

12.5

Dimension D1 [mm]

20

Dimension D2 [mm]

10

Dimension E H7 [mm]

7

Dimension E H7 thread depth [mm]

1.6

Dimension E H7 thread depth (text)

deep

Dimension E H7 with thread depth

7 mm ‒ 1.6 mm deep

Dimension E2 [mm]

10

Dimension E2 tolerance [mm]

±0.01

Dimension E3 (profiled rail systems) [mm]

20

Dimension E3 tolerance [mm]

±0.01

Dimension EH7 thread depth tolerance [mm]

+0.2
