Соединительная пластина Bosch Rexroth CKK 20-145 L BG [R037550010]

Mechanical accessories for linear axes

Connection plates

Nominal size [mm]

145

Weight [kg]

1.15

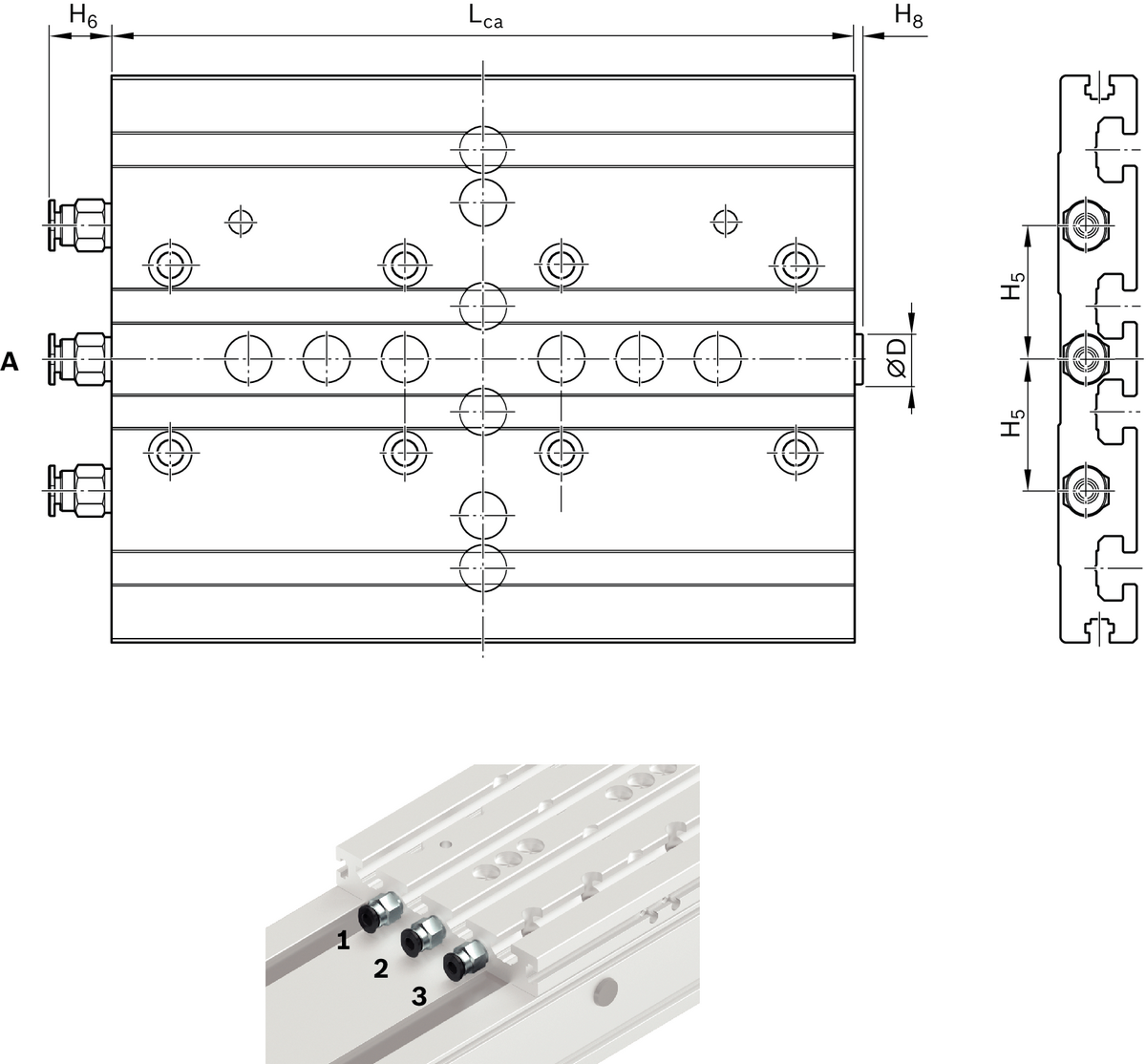

Length of the carriage Lca [mm]

190

Lubrication type

LSS, LPG

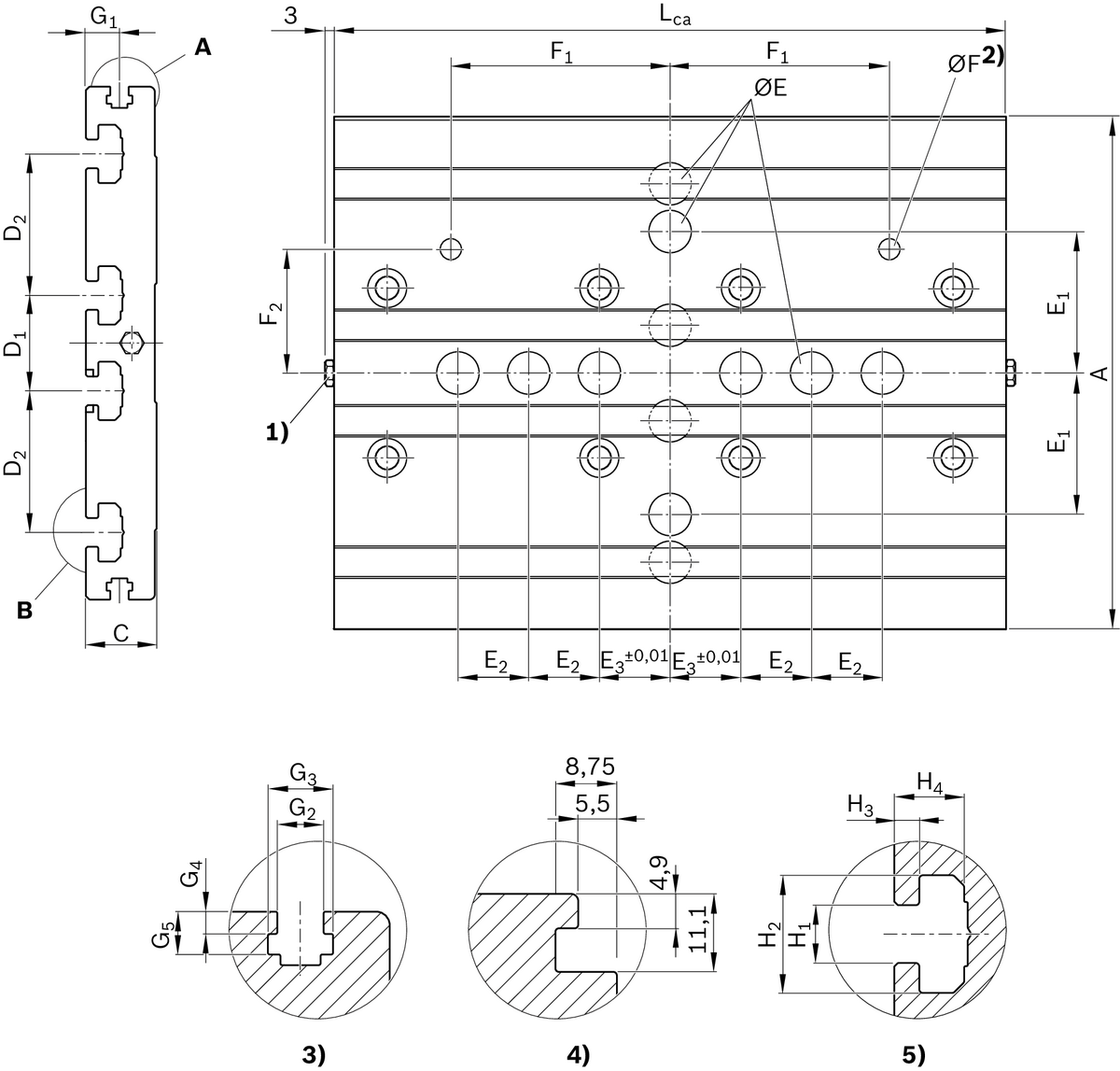

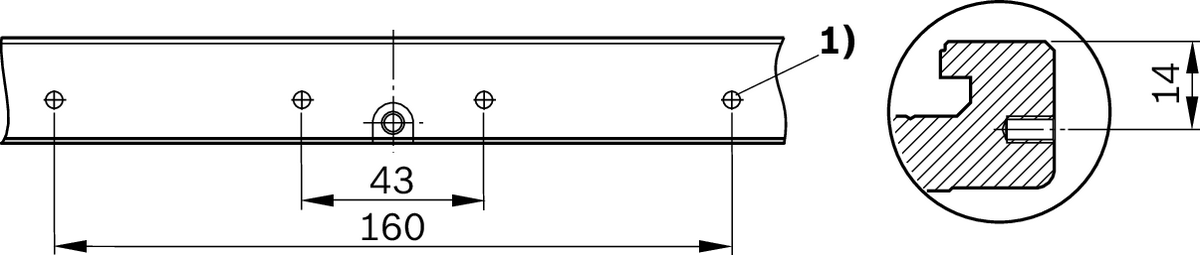

Dimension A (profiled rail systems) [mm]

145

Dimension C [mm]

20

Dimension D1 [mm]

27

Dimension D2 [mm]

40

Dimension E H7 [mm]

12

Dimension E H7 thread depth [mm]

2.1

Dimension E H7 thread depth (text)

deep

Dimension E H7 with thread depth

12 mm ‒ 2.1 mm deep

Dimension E1 [mm]

40

Dimension E1 tolerance [mm]

±0.01

Dimension E2 [mm]

20

Dimension E2 tolerance [mm]

±0.01

Dimension E3 (profiled rail systems) [mm]

20

Dimension E3 tolerance [mm]

±0.01

Dimension F H7 [mm]

6

Dimension F H7 thread depth [mm]

12

Dimension F H7 thread depth (text)

deep

Dimension F H7 with thread depth

6 mm ‒ 12 mm deep

Dimension F1 [mm]

62

Dimension F1 tolerance [mm]

±0.01

Dimension F2 [mm]

35

Dimension F2 tolerance [mm]

±0.01

Dimension G1 [mm]

9.5

Dimension G2 [mm]

5.2

Dimension G3 [mm]

7.3

Dimension G4 [mm]

2.5

Dimension G5 [mm]

4.8

Dimension H1 (profiled rail systems) [mm]

8

Dimension H3 [mm]

3.5

Dimension H4 [mm]

9.8

Dimension H5 [mm]

26

Dimension H6 [mm]

12.5
