Зажимной блок Bosch Rexroth MKS 3505 AR & [R181034060]

Accessories for

Runner block

Nominal size [mm]

35

Note: spring energy holding force with standard air port

Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

Permissible ambient temperature (min. ... max.)

​0 °C ... +70 °C

Weight [kg]

1.02

Footnote for spring energy holding force with air-plus port

Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

Air consumption (normal liter) standard air port [dm³/stroke]

0.031

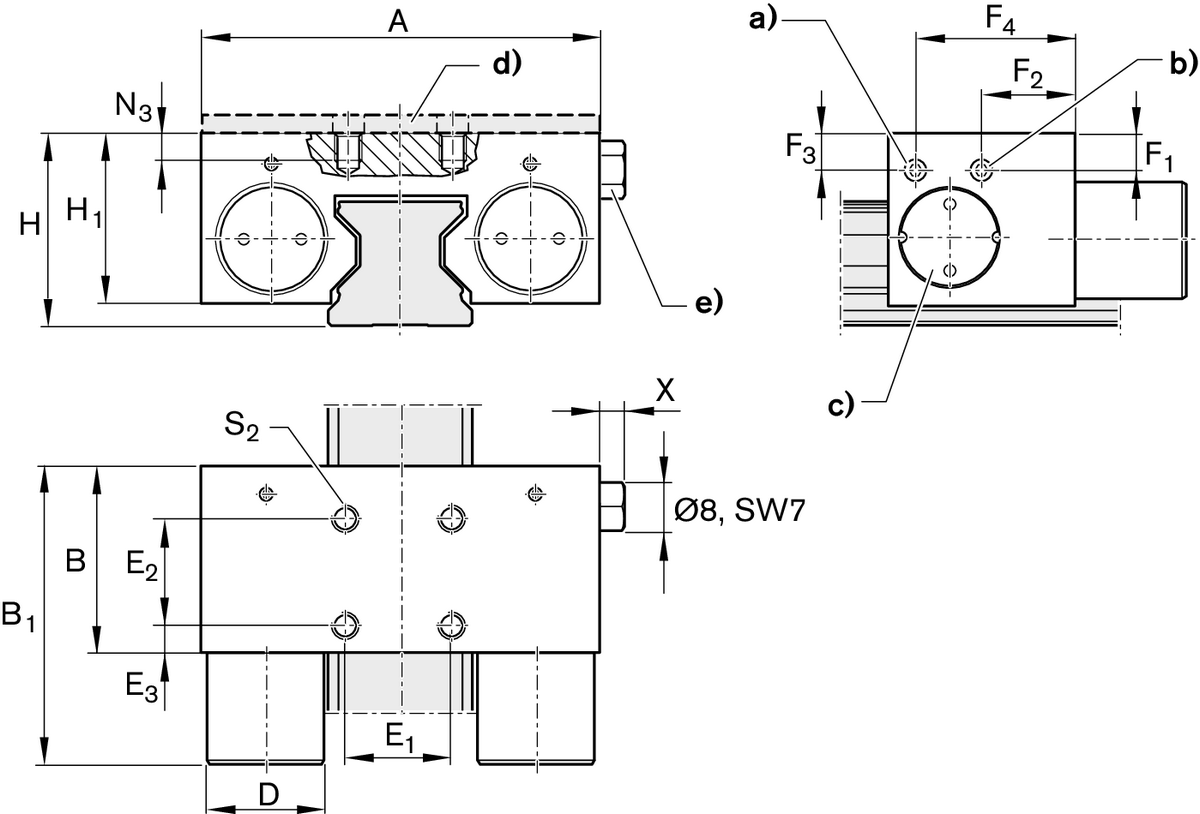

Dimension A (profiled rail systems) [mm]

100

Dimension A1 (profiled rail systems) [mm]

68

Dimension B (profiled rail systems) [mm]

39

Dimension B1 [mm]

67.5

Dimension D [mm]

28

Dimension E1 [mm]

24

Dimension E2 (profiled rail systems) [mm]

24

Dimension E3 (profiled rail systems) [mm]

7.5

Dimension F1 [mm]

12

Dimension F2 [mm]

24.5

Dimension H [mm]

48

Dimension H1 (profiled rail systems) [mm]

44

Dimension H2 (profiled rail systems) [mm]

28

Dimension H2 with cover strip (profiled rail systems) [mm]

28

Dimension N3 (profiled rail systems) [mm]

10

Dimension S2 thread diameter (profiled rail systems) [mm]

M8

Dimension X (profiled rail systems) [mm]

5.5

Footnote Dimension H1

For roller runner block .H. (...High...) Spacer plate necessary.

Height of guide rail H2 [mm]

28
