Зажимной блок Bosch Rexroth MKS 2005 AK & [R161984060]

Accessories for

Runner block

Version

All ball guide rails SNS

Nominal size [mm]

20

Note: spring energy holding force with standard air port

Holding force achieved by spring energy. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

Permissible ambient temperature (min. ... max.)

​0 °C ... +70 °C

Weight [kg]

0.4

Footnote for spring energy holding force with air-plus port

Increased holding force by additional air admission at air-plus port with 6.0 bar. Switching via 5/2 or 5/3-way directional control valve.

Air consumption (normal liter) standard air port [dm³/stroke]

0.019

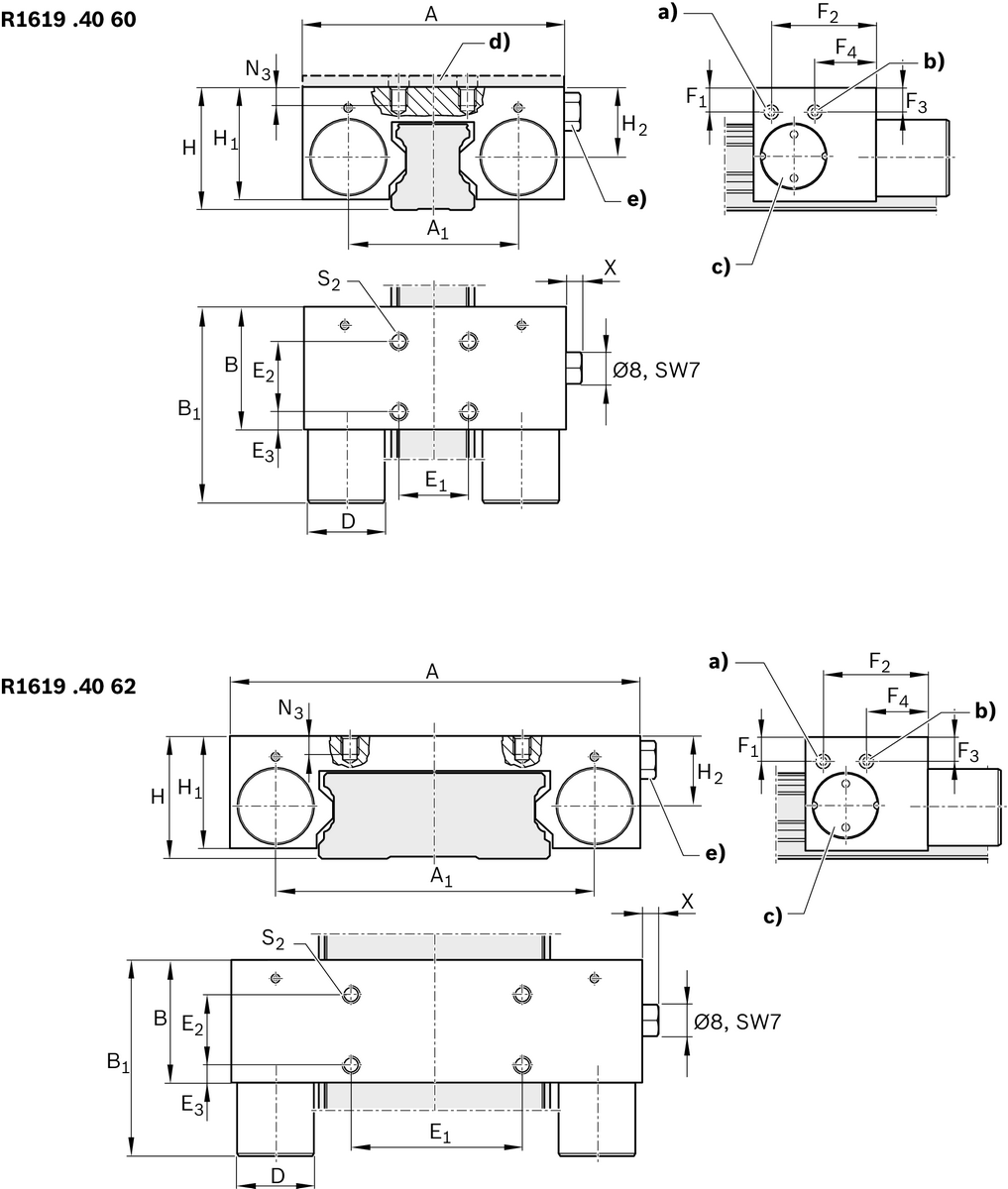

Dimension A (profiled rail systems) [mm]

66

Dimension A1 (profiled rail systems) [mm]

43

Dimension B (profiled rail systems) [mm]

39

Dimension D [mm]

20

Dimension E1 [mm]

20

Dimension E2 (profiled rail systems) [mm]

20

Dimension E3 (profiled rail systems) [mm]

9

Dimension F1 [mm]

6

Dimension F2 [mm]

34.5

Dimension H [mm]

30

Dimension H1 (profiled rail systems) [mm]

27

Dimension H2 (profiled rail systems) [mm]

15.5

Dimension N3 (profiled rail systems) [mm]

6

Dimension S2 thread diameter (profiled rail systems) [mm]

M6

Dimension X (profiled rail systems) [mm]

5.5

Footnote Dimension H1

Ball runner block .H. (...High...) Spacer plate necessary.

Height of guide rail H2 [mm]

15.5
