Зажимной блок Bosch Rexroth MK 3005 AK & [R161974260]

Accessories for

Runner block

Version

All ball guide rails SNS

Nominal size [mm]

30

Note: spring energy holding force with standard air port

Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

Permissible ambient temperature (min. ... max.)

​0 °C ... +70 °C

Weight [kg]

0.72

Air consumption (normal liter) standard air port [dm³/stroke]

0.031

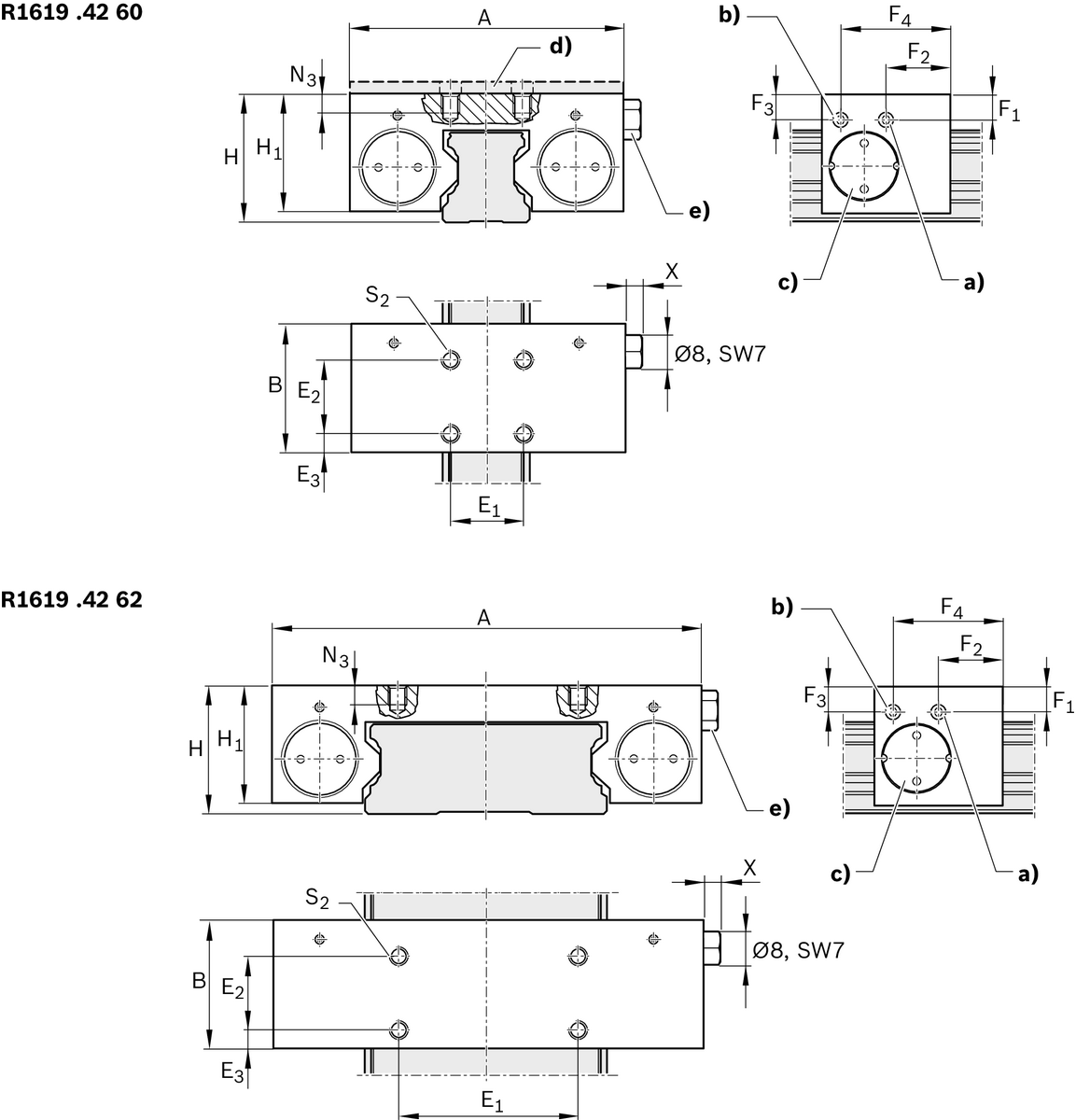

Dimension A (profiled rail systems) [mm]

90

Dimension B (profiled rail systems) [mm]

39

Dimension E1 [mm]

22

Dimension E2 (profiled rail systems) [mm]

22

Dimension E3 (profiled rail systems) [mm]

8.5

Dimension F1 [mm]

8.5

Dimension F2 [mm]

15

Dimension H [mm]

42

Dimension H1 (profiled rail systems) [mm]

38.5

Dimension N3 (profiled rail systems) [mm]

9

Dimension S2 thread diameter (profiled rail systems) [mm]

M8

Dimension X (profiled rail systems) [mm]

5.5

Footnote Dimension H1

Ball runner block .H. (...High...) Spacer plate necessary.
