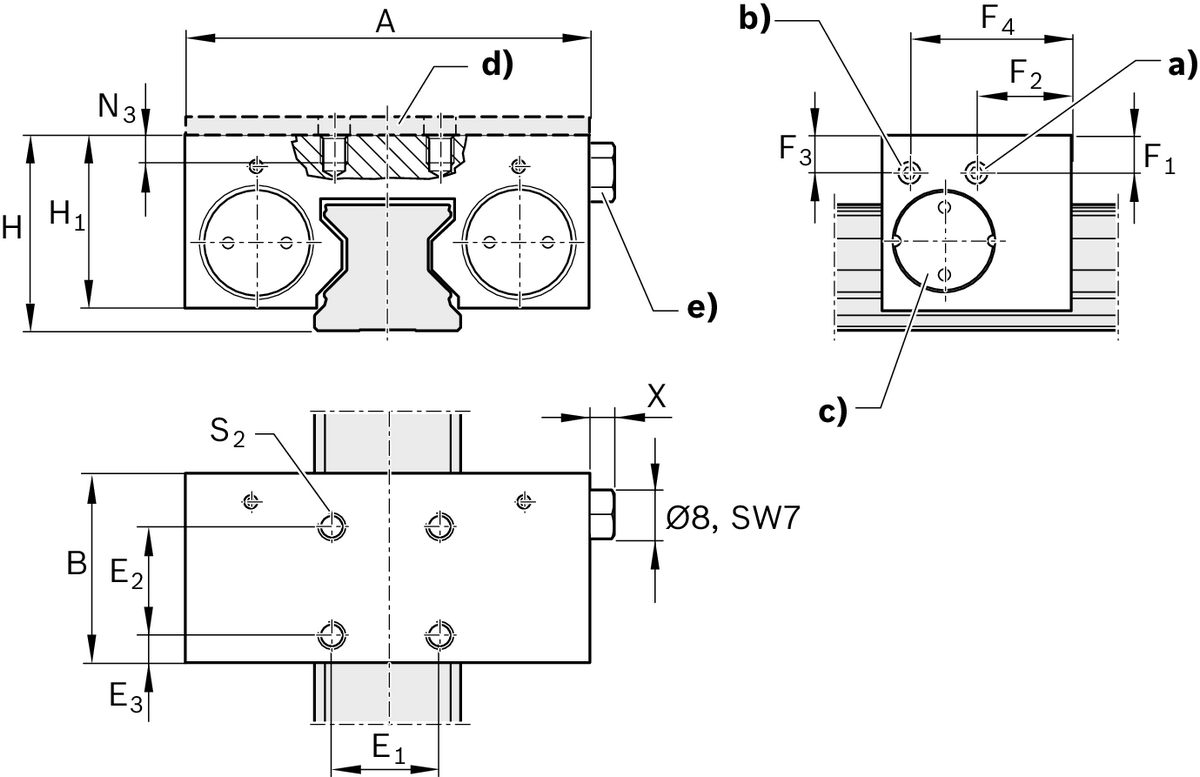

Зажимной блок Bosch Rexroth MK 2505 AR & [R181024260]

Accessories for

Runner block

Nominal size [mm]

25

Note: spring energy holding force with standard air port

Holding force by spring energy at 6 bar. The inspection is done in a mounted state with a lubricated layer (ISO-VG 68).

Permissible ambient temperature (min. ... max.)

​0 °C ... +70 °C

Weight [kg]

0.43

Air consumption (normal liter) standard air port [dm³/stroke]

0.021

Dimension A (profiled rail systems) [mm]

75

Dimension B (profiled rail systems) [mm]

35

Dimension E1 [mm]

20

Dimension E2 (profiled rail systems) [mm]

20

Dimension E3 (profiled rail systems) [mm]

5

Dimension F1 [mm]

6.5

Dimension F2 [mm]

17.5

Dimension H [mm]

36

Dimension H1 (profiled rail systems) [mm]

32.5

Dimension N3 (profiled rail systems) [mm]

8

Dimension S2 thread diameter (profiled rail systems) [mm]

M6

Dimension X (profiled rail systems) [mm]

5.5

Footnote Dimension H1

For roller runner block .H. (...High...) Spacer plate necessary.
