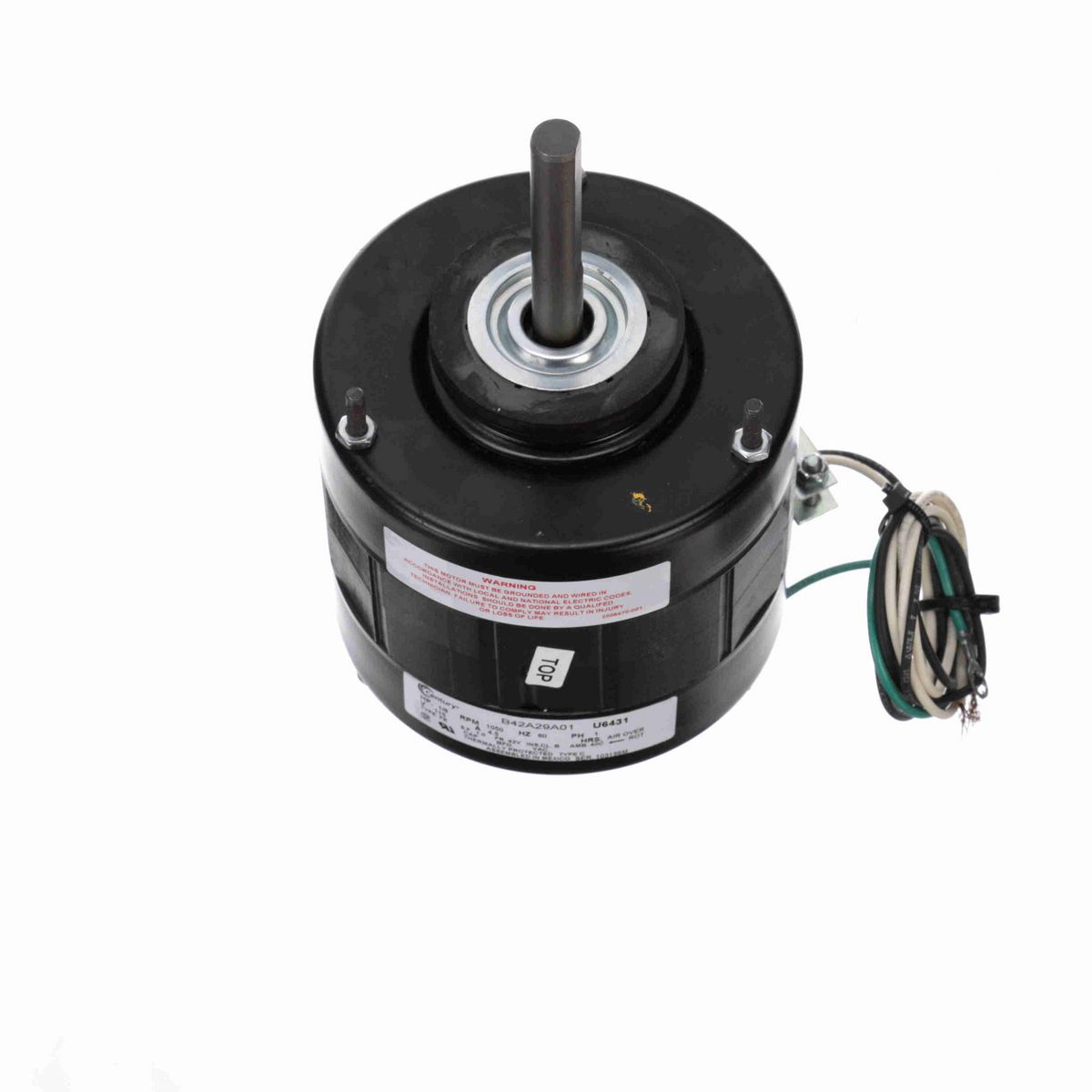

• Unit Heater Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 35" Leads
• Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Lead End

Nameplate Specifications

Phase	1
Output HP	1/8 Hp
Output KW	0.10 kW
Voltage	115 V
Speed	1050 rpm
Service Factor	1
Frame	42Y
Enclosure	Totally Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.5 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	7.89 in
Shaft Diameter	0.500 in
Shaft Extension	3.3 in

General Specifications

UPC	786674032256
Weight	10.00 LB
Packaged Length	8.87 IN
Packaged Width	5.81 IN
Packaged Height	5.81 IN
HTC	8501.40.4040
