• Open Dripproof
• Sealed Ball Bearings
• 40°C Ambient
• Internal Junction Box
• Threaded Shaft
• Stainless Steel Shaft
• 3 Phase
• Jet Pump
• C Face

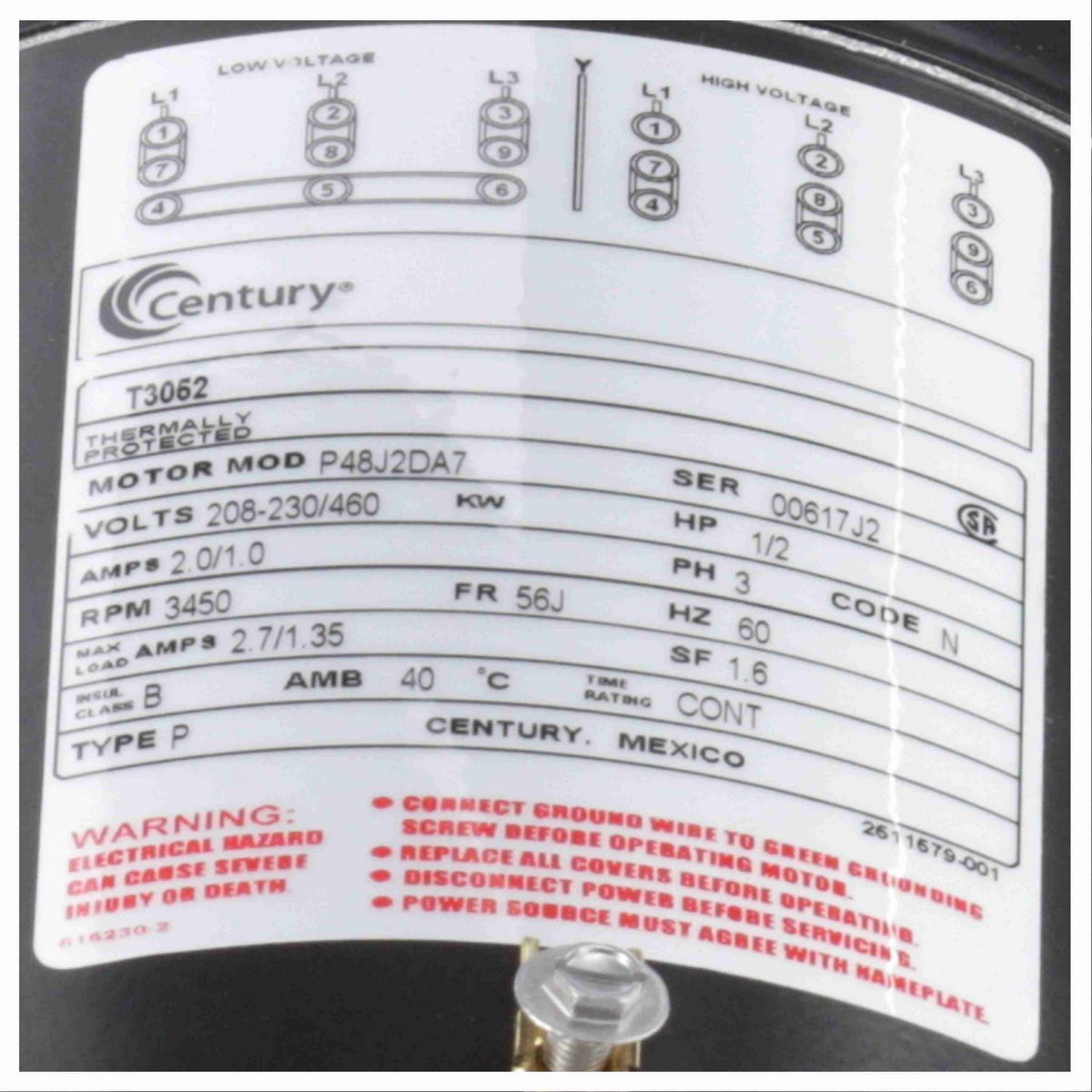

Nameplate Specifications

Phase	3
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	208-230/460 V
Speed	3450 rpm
Service Factor	1.6
Frame	56J
Enclosure	Open Drip Proof
Thermal Protection	No Protection
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.0/1.0 A
Duty	Continuous
Insulation Class	B
UL	No
CSA	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Polyphase
Starting Method	Across The Line
Poles	2
Rotation	Counterclockwise Pump End
Mounting	Round
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	7/16 Thread
Overall Length	11.20 in
Frame Length	5.25 in
Shaft Diameter	0.625 in
Shaft Extension	2.565 in

General Specifications

UPC	786674032096
Weight	16.00 LB
Packaged Length	16.00 IN
Packaged Width	9.50 IN
Packaged Height	9.50 IN
HTC	8501.51.4040
Country of Origin	Mexico
