• UL recognized component listing and CSA certification ensures the product is safe for use.
• Double-shielded bearings extend the service life of the motor.
• Automatic reset thermal protector (as noted) protects against overload.
• Moderate starting torque helps reduce fan stresses.

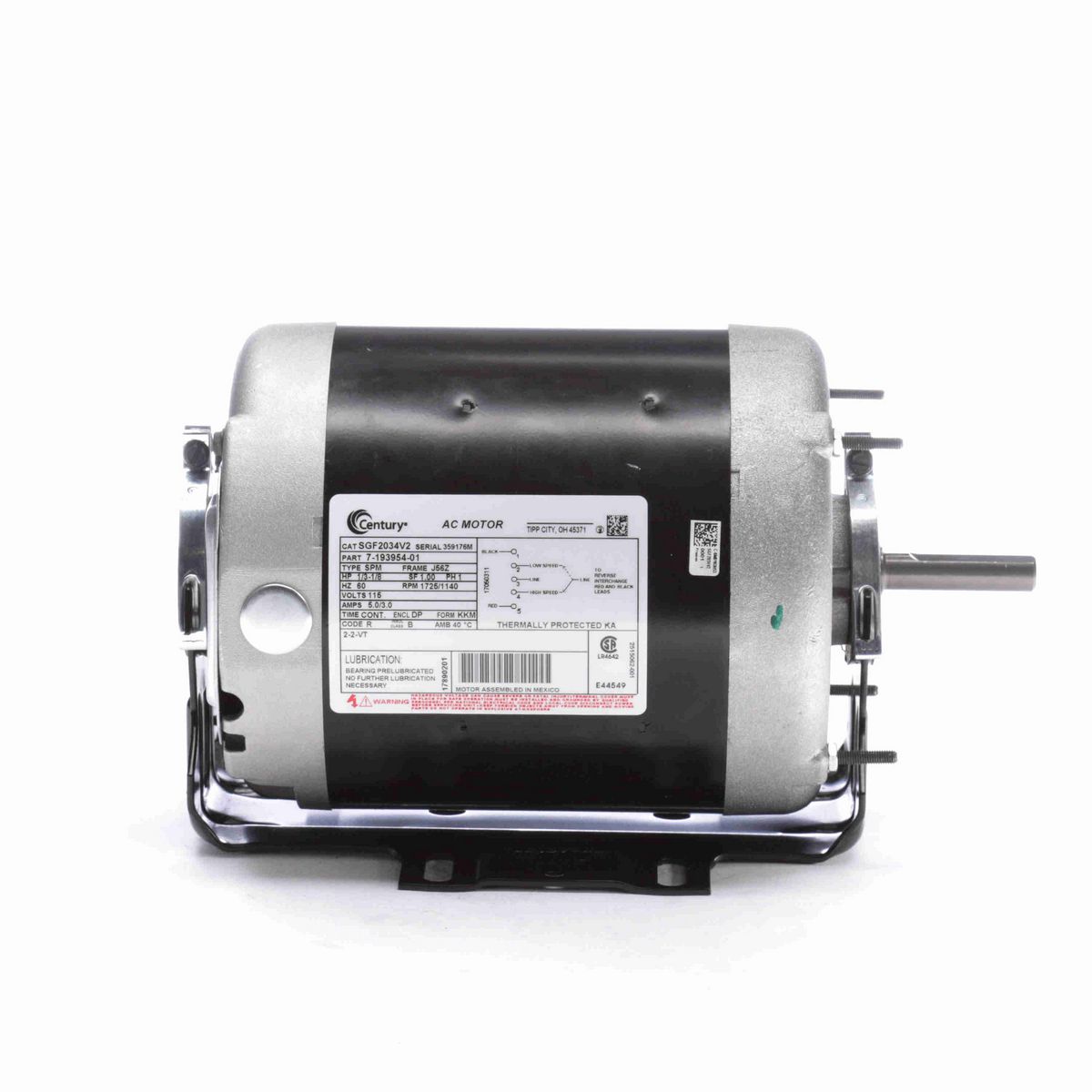

Nameplate Specifications

Phase	1
Output HP	1/3-1/8 Hp
Output KW	0.25 kW
Voltage	115 V
Speed	1725/1140 rpm
Service Factor	1
Frame	J56Z
Enclosure	Drip Proof
Thermal Protection	Thermally Protected
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.0/3.0 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2-2-VT

Technical Specifications

Electrical Type	Split Phase, Induction Run, Multi-Speed
Starting Method	Across The Line
Poles	4/6
Rotation	Reversible Counterclockwise
Mounting	Cushion Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	11.19 in
Frame Length	5.13 in
Shaft Diameter	0.500 in
Shaft Extension	2.06 in

General Specifications

UPC	786674030900
Weight	26.00 LB
Packaged Length	16.00 IN
Packaged Width	8.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
