• Resilient Base
• Continuous duty
• Single and two speed

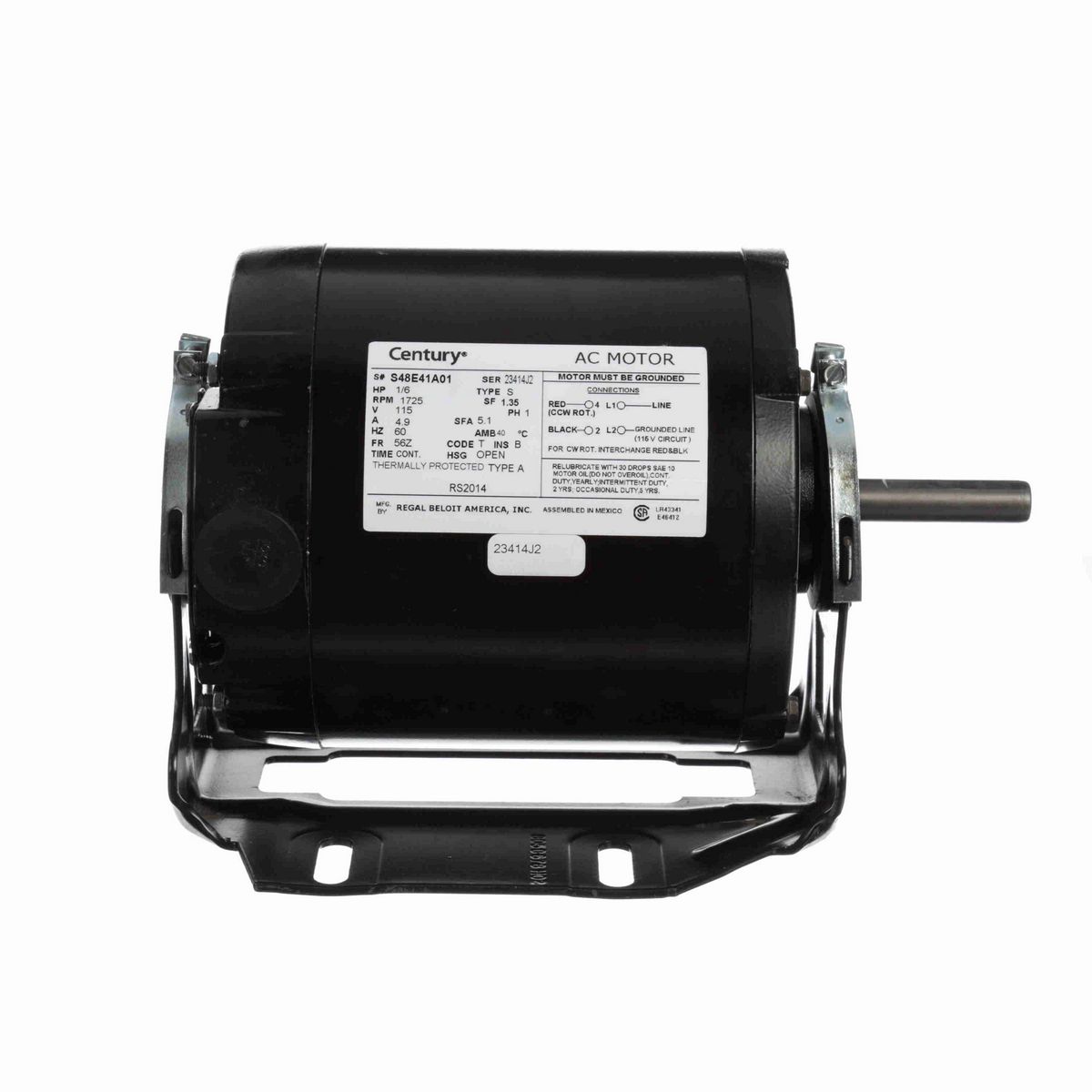

Nameplate Specifications

Phase	1
Output HP	1/6 Hp
Output KW	0.13 kW
Voltage	115 V
Speed	1725 rpm
Service Factor	1.35
Frame	56Z
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	4.9 A
Duty	Continuous
Insulation Class	B
UL	No
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Split Phase
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Resilient Base
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	9.61 in
Frame Length	4.69 in
Shaft Diameter	0.625 in
Shaft Extension	2 in

General Specifications

UPC	786674030726
Weight	13.00 LB
Packaged Length	10.88 IN
Packaged Width	7.81 IN
Packaged Height	8.81 IN
HTC	8501.40.4040
Country of Origin	Mexico
