• Refrigeration - Unit Heater - Space Heater Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Enclosed Shell, Air Over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 3/8" Diameter Shaft with Flat
• 29" Leads

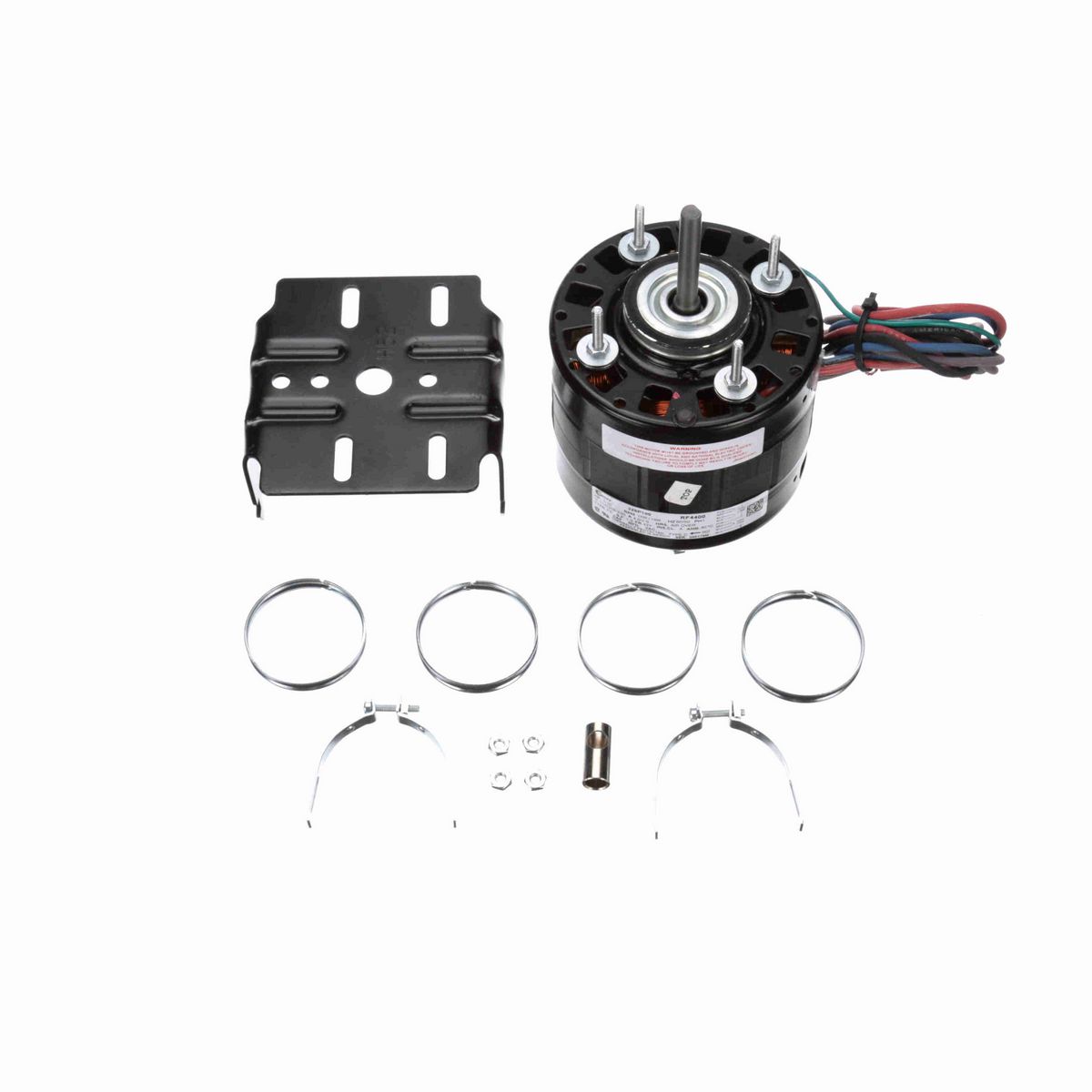

• Extended Studs Shaft End, Resilient Mounting Rings Shaft End and Opposite Shaft End, Resilient Base Mounting Clamps, Mounting Ring Adaptors, and Hex Nuts Included

Nameplate Specifications

Phase	1
Output HP	1/10 Hp
Output KW	0.07 kW
Voltage	115/208-230 V
Speed	1550/1300 rpm
Service Factor	1.0
Frame	42Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	4.0/2.0 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	Extended Studs
Motor Orientation	Any
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	7.17 in
Shaft Diameter	0.375 in
Shaft Extension	2.25 in

General Specifications

UPC	786674030597
Weight	10.00 LB
Packaged Length	8.87 IN
Packaged Width	5.81 IN
Packaged Height	5.81 IN
HTC	8501.40.2040
Country of Origin	Mexico
