• UL recognized component listing and CSA certification ensures the product is safe for use.
• Double-shielded bearings extend the service life of the motor.
• Automatic reset thermal protector (as noted) protects against overload.
• Moderate starting torque helps reduce fan stresses.

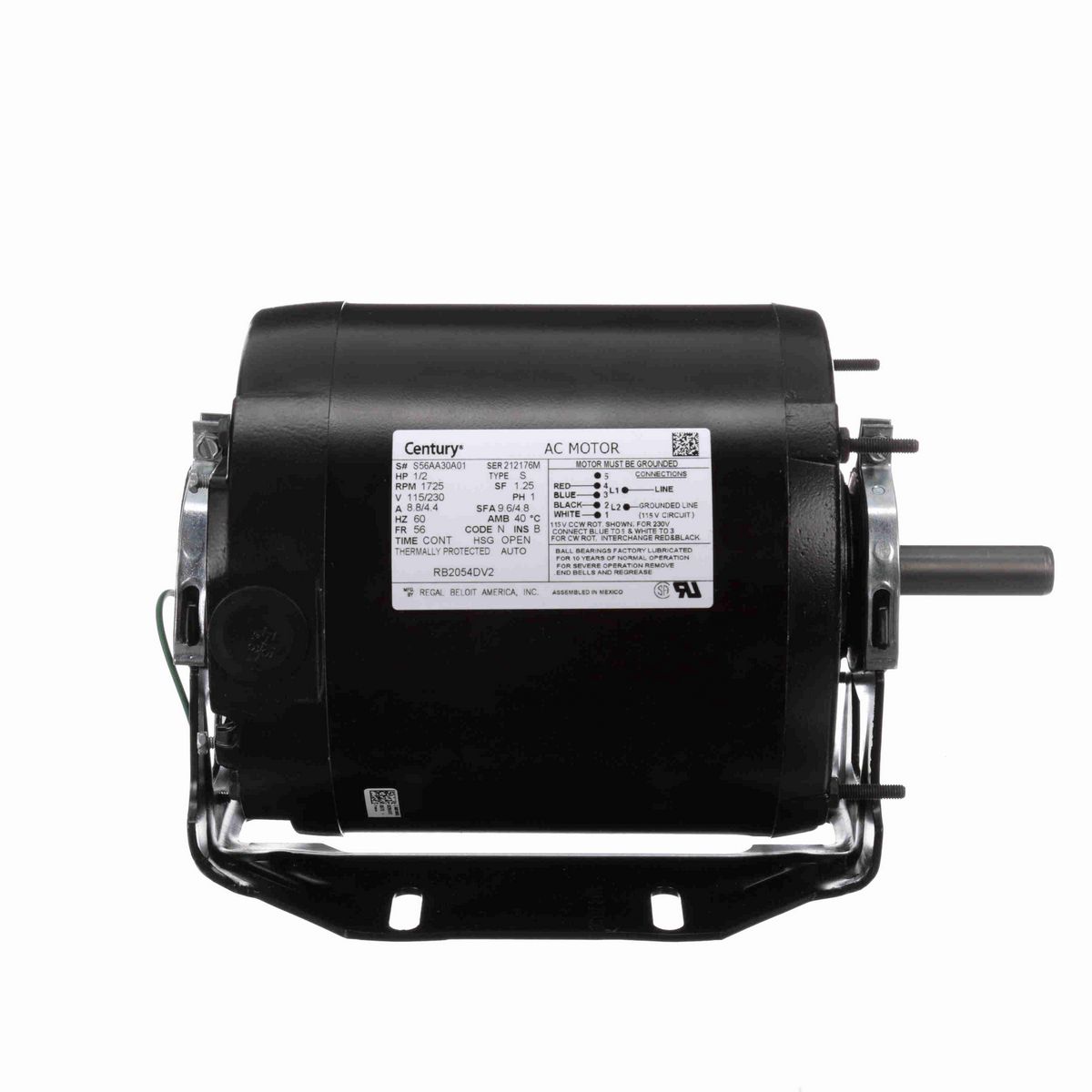

Nameplate Specifications

Phase	1
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	115/230 V
Speed	1725 rpm
Service Factor	1.25
Frame	56
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	8.8/4.4 A
Duty	Continuous
Insulation Class	B
UL	No
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Split Phase
Starting Method	Across The Line
Poles	4
Rotation	Reversible
Mounting	Resilient Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	10.34 in
Frame Length	5.19 in
Shaft Diameter	0.624 in
Shaft Extension	2 in

General Specifications

UPC	786674030498
Weight	20.00 LB
Packaged Length	14.00 IN
Packaged Width	8.00 IN
Packaged Height	8.50 IN
HTC	8501.40.4040
Country of Origin	Mexico
