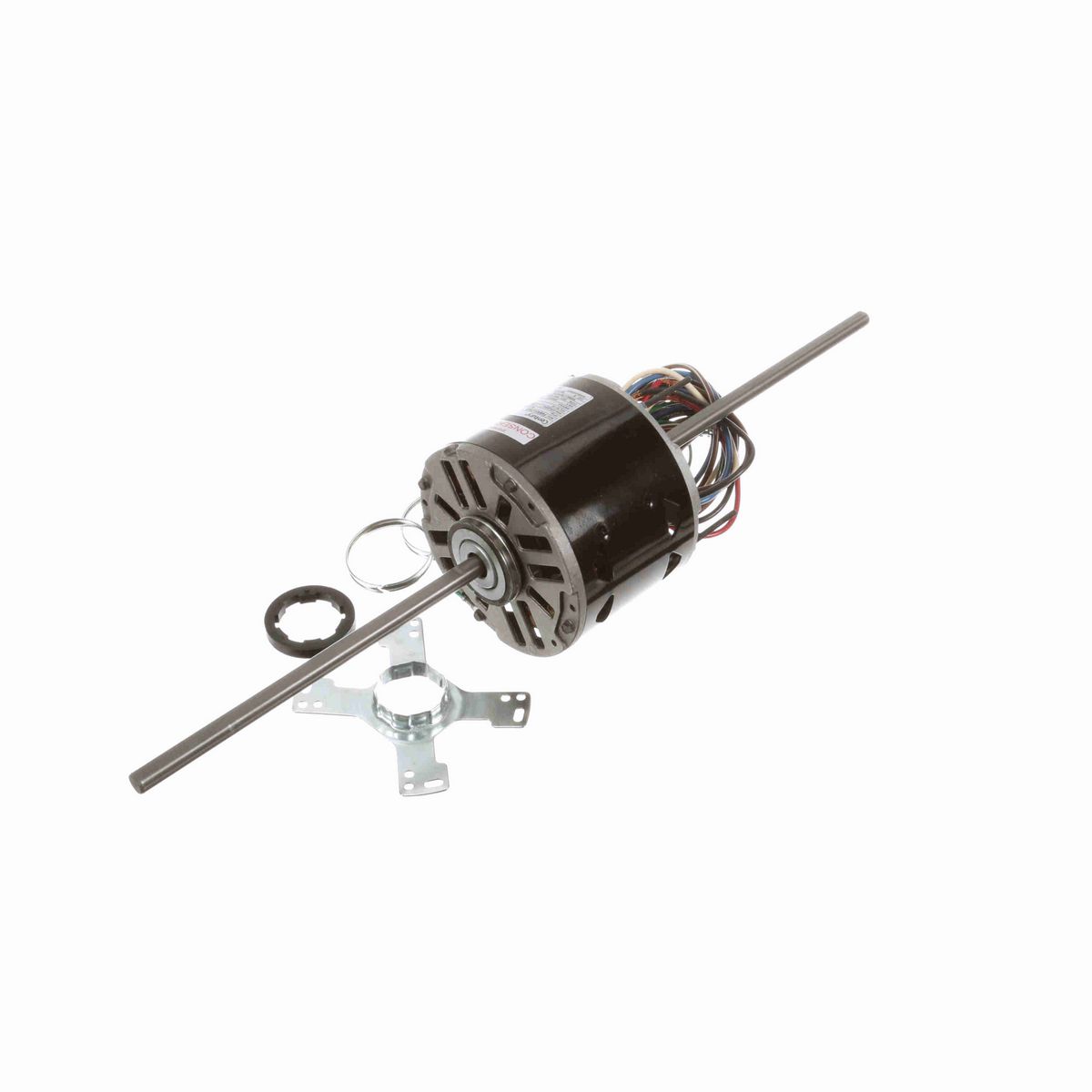

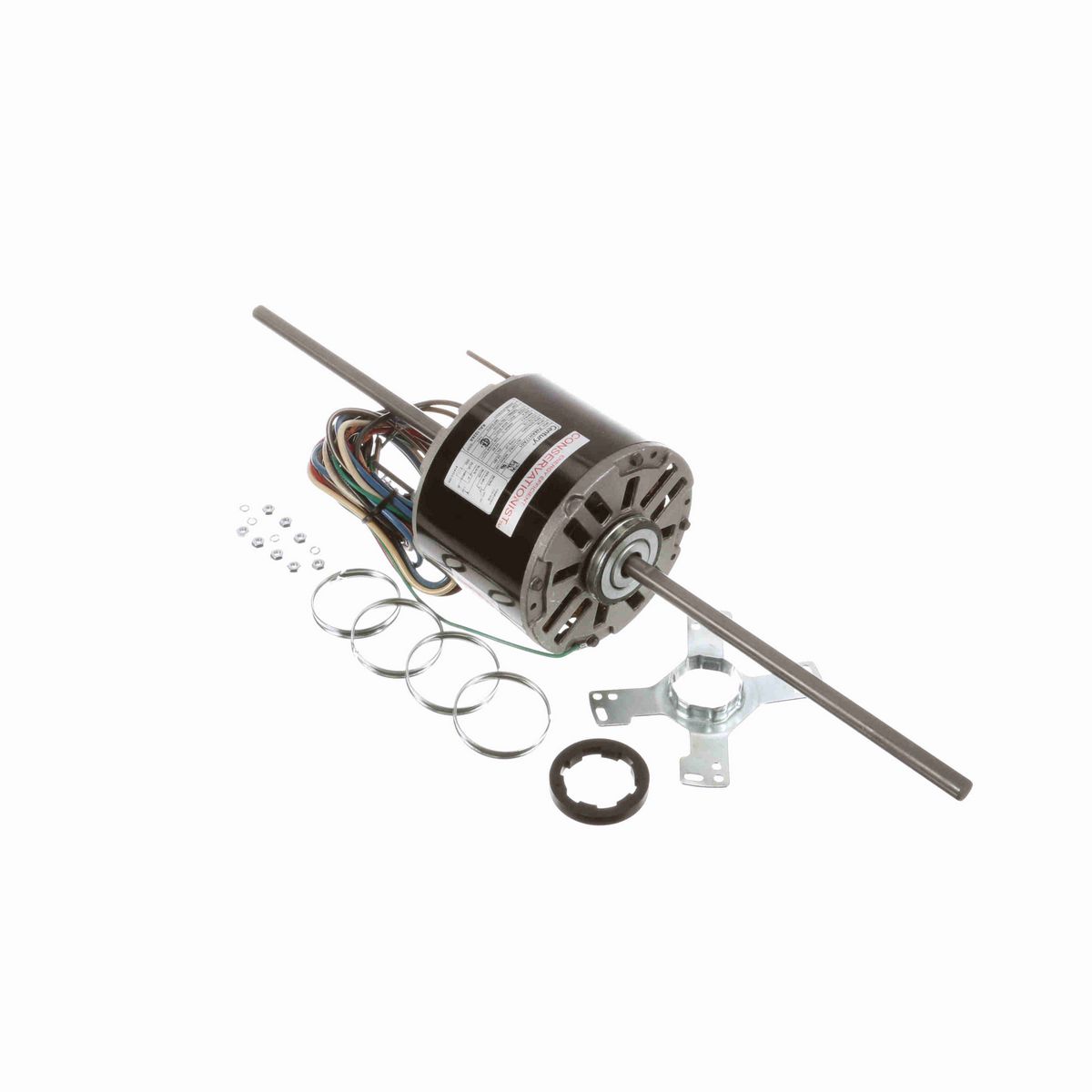

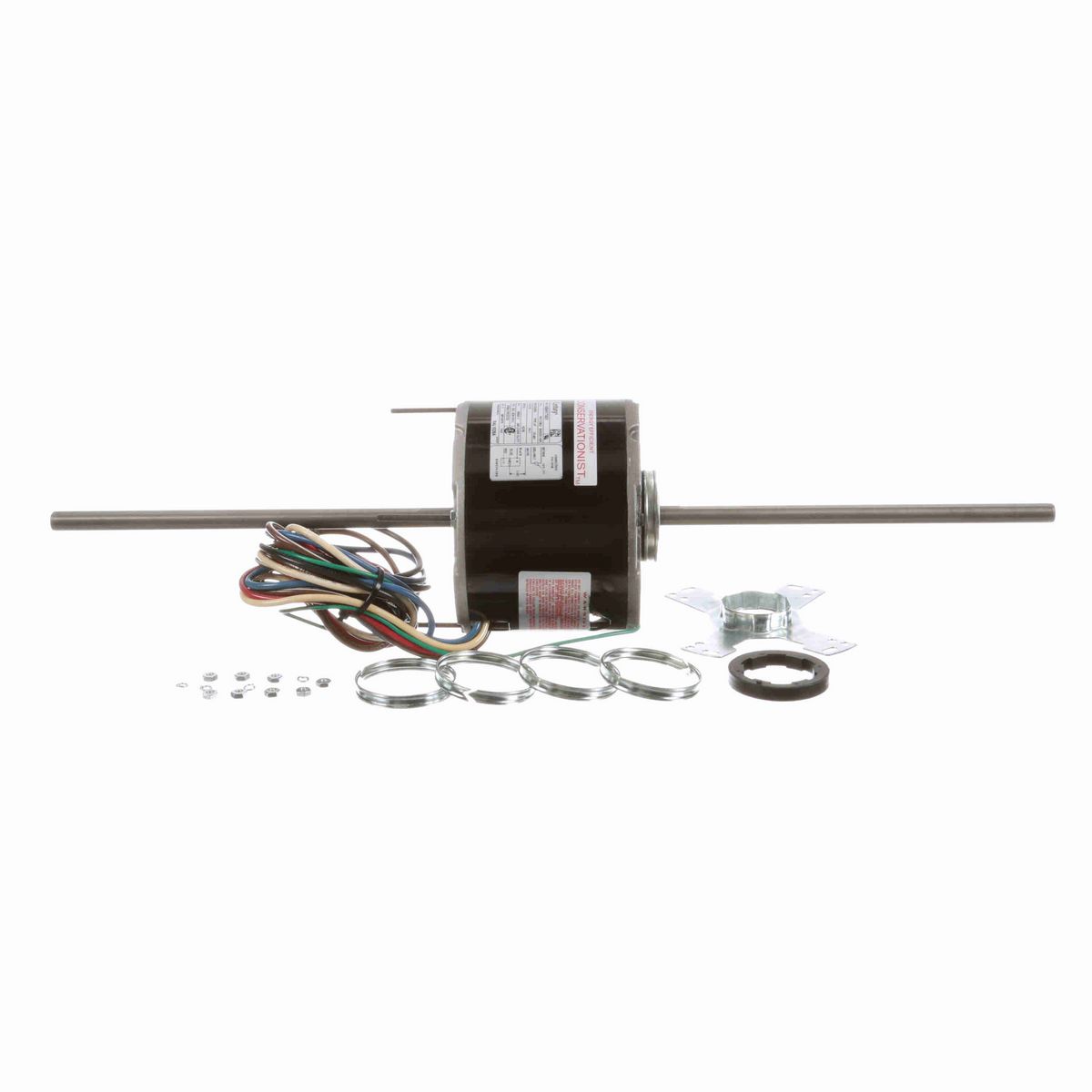

• Fan Coil - Room Air Conditioner - Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Lead End and Opposite Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class A Insulation, 40°C Ambient
• Design Upgrade, Converting From Sleeve Bearing to Ball Bearing
• 1/2" Diameter Double Shaft with Flat
• 35" Leads
• Extended Studs Lead End, Resilient Ring Opposite Lead End, Resilient Mounting Accessories Supplied with Motor

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	115 V
Speed	1075 rpm
Service Factor	1
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	5.0 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Resilient Ring/Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	24.00 in
Frame Length	3.63 in
Shaft Diameter	0.500 in
Shaft Extension	9.88 x .5 x 9.88 in

General Specifications

UPC	786674071873
Weight	20.00 LB
Packaged Length	26.87 IN
Packaged Width	6.81 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
Country of Origin	Mexico
