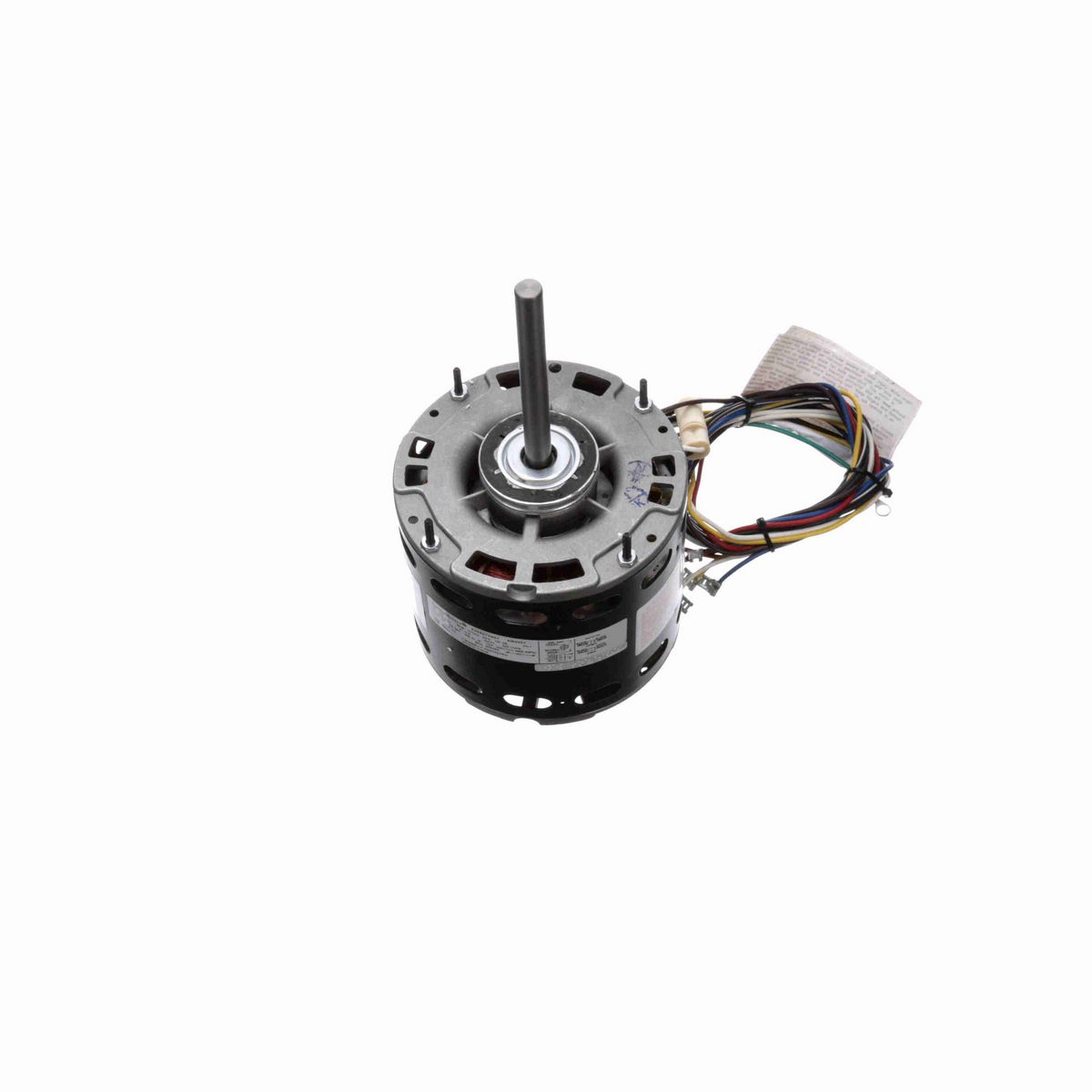

• Pro-E Series® - Direct Drive Fan & Blower Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 10 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 36.5" Leads with Quick Connect Terminals
• Extended Studs Shaft End, Resilient Ring Mounting, Mounting Holes in Shell, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	3/4-1/5 Hp
Output KW	0.56 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.9 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	4

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.36 in
Frame Length	4.93 in
Shaft Diameter	0.500 in
Shaft Extension	4.5 in

General Specifications

UPC	786674060419
Weight	15.00 LB
Packaged Length	13.78 IN
Packaged Width	6.41 IN
Packaged Height	6.81 IN
HTC	8501.40.4040
Country of Origin	India
