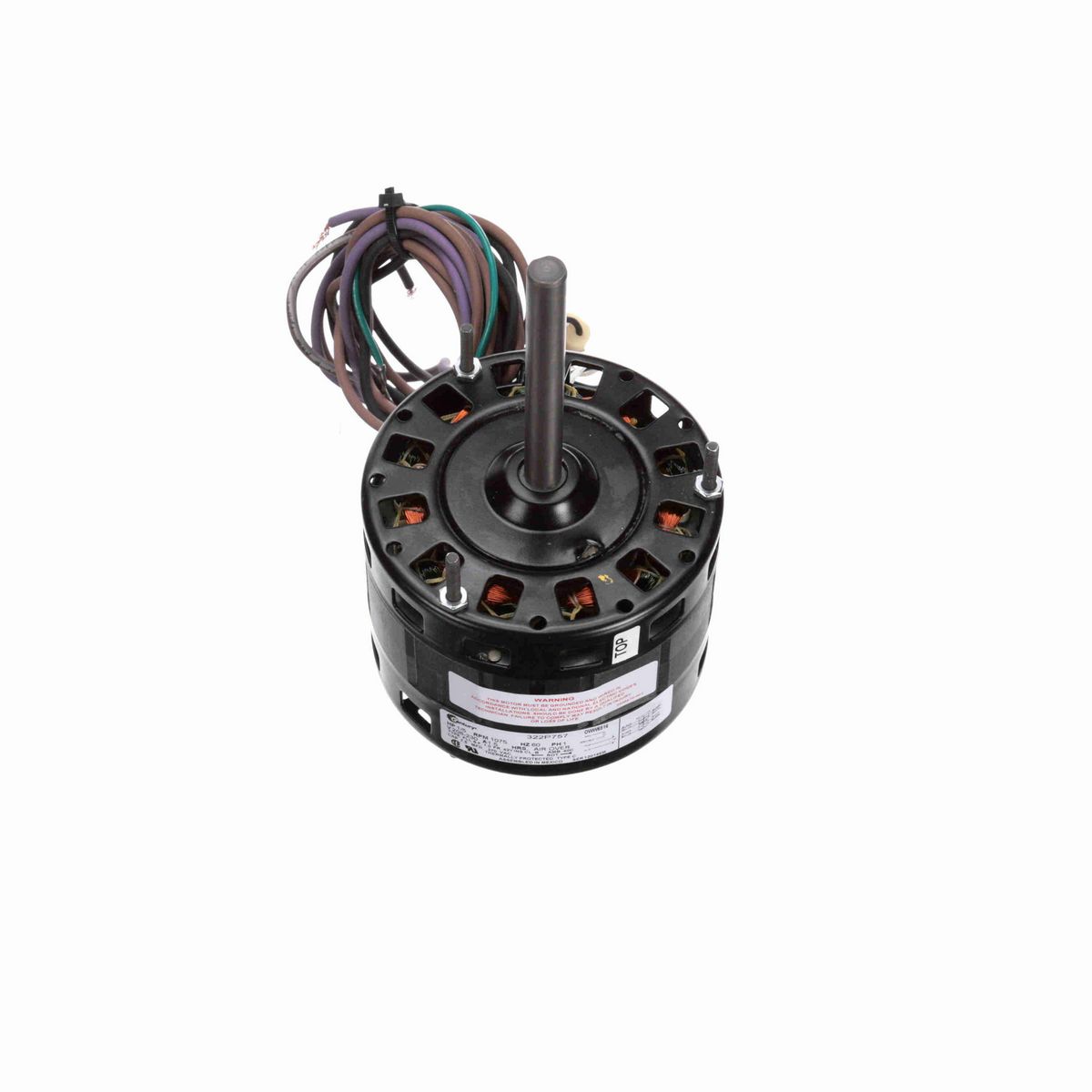

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 34.5" Leads
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/5 Hp
Output KW	0.15 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1
Frame	42Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.5 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	8.15 in
Shaft Diameter	0.500 in
Shaft Extension	4.3 in

General Specifications

UPC	786674028686
Weight	9.00 LB
Packaged Length	8.87 IN
Packaged Width	5.81 IN
Packaged Height	5.81 IN
HTC	8501.40.4040
