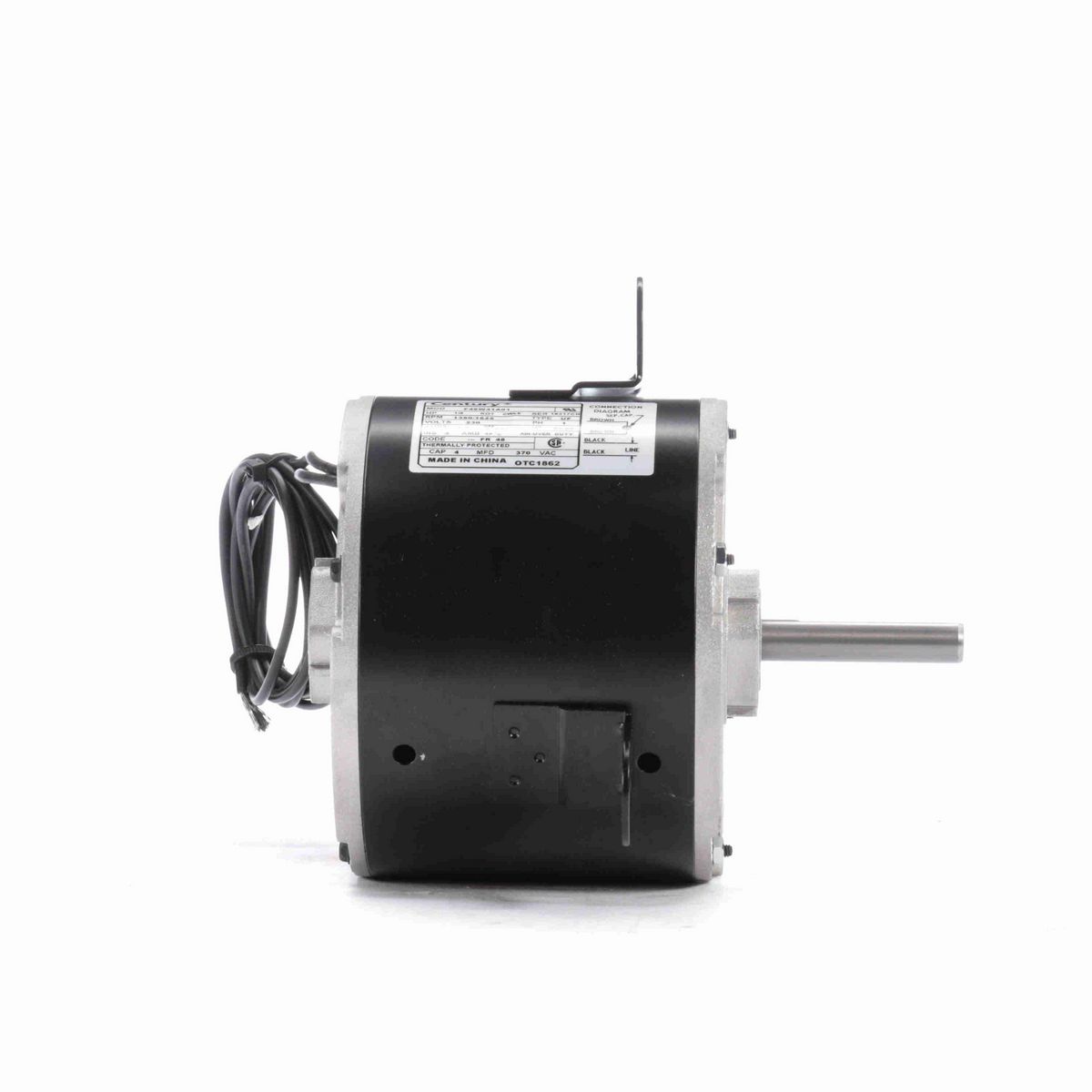

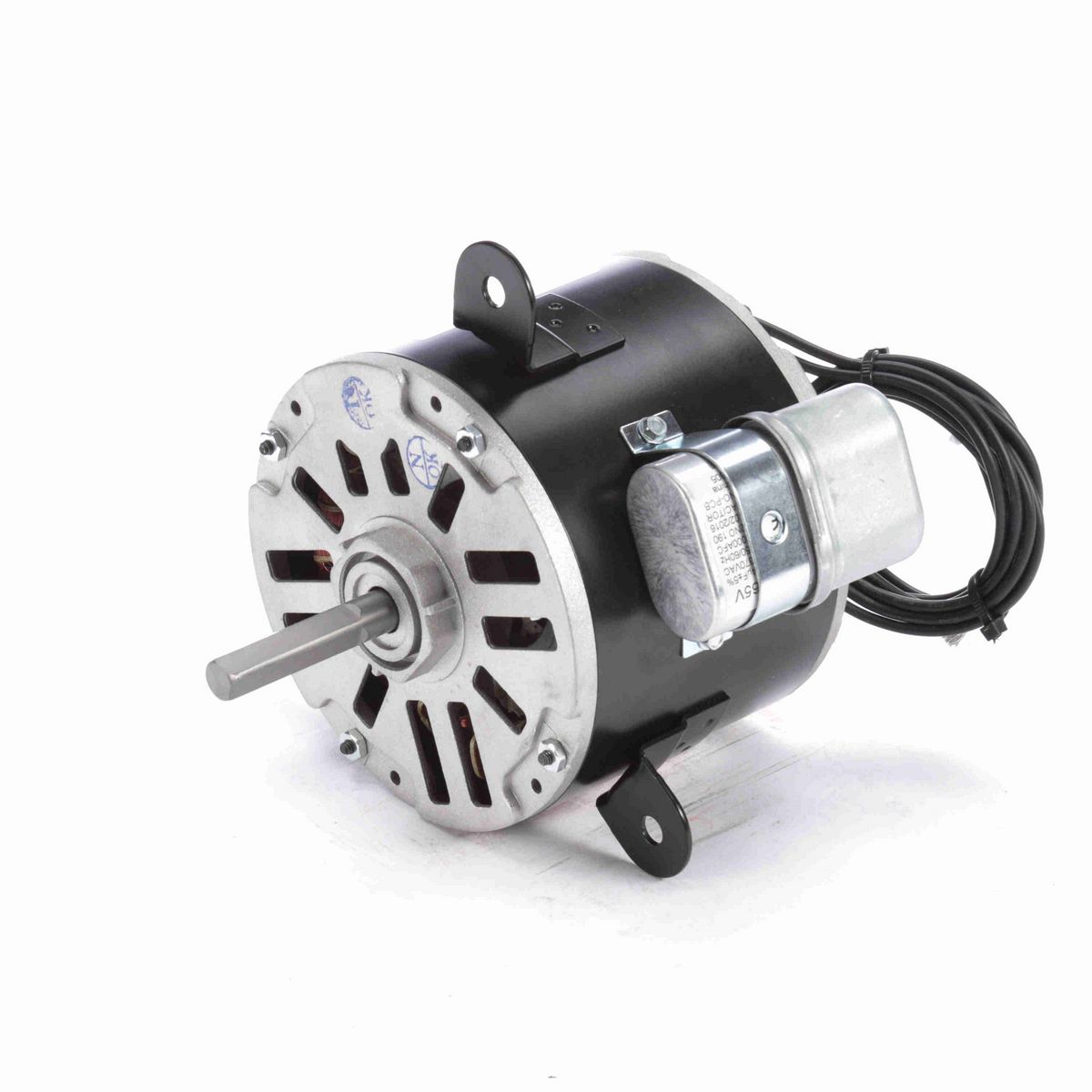

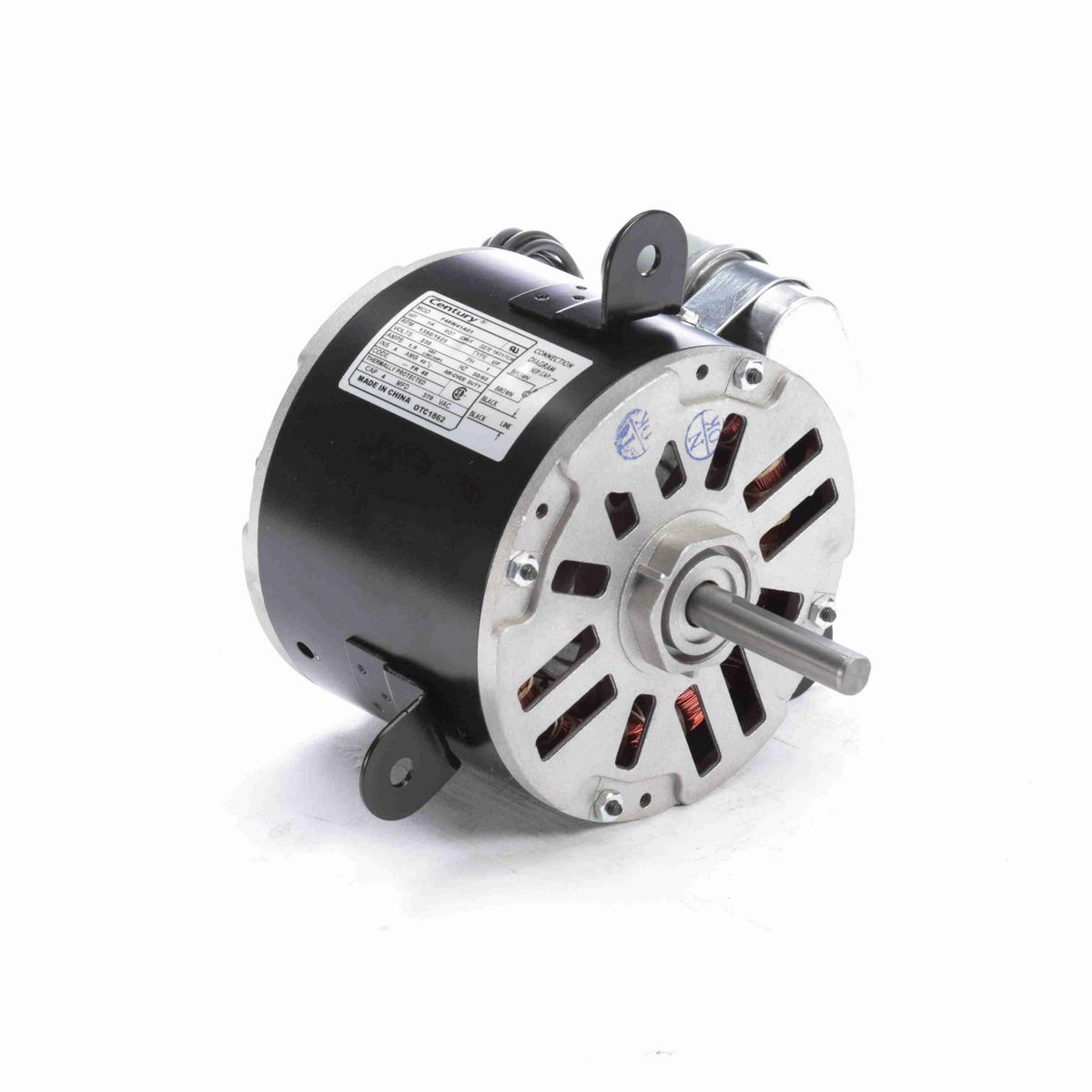

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 4 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class A Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Double Flats
• 39" Leads
• Lug Mount, Hex Mounting Hub Shaft end and Lead End

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	230 V
Speed	1350/1625 rpm
Service Factor	1
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	50 Hz
Current	1.9 A
Duty	Continuous Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	Lug
Motor Orientation	Vertical Shaft Down
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	7.55 in
Frame Length	3.75 in
Shaft Diameter	0.500 in
Shaft Extension	1/2 X 2 3/4 in

General Specifications

UPC	786674028518
Weight	11.00 LB
Packaged Length	10.20 IN
Packaged Width	9.10 IN
Packaged Height	9.40 IN
HTC	8501.40.4040
Country of Origin	India
