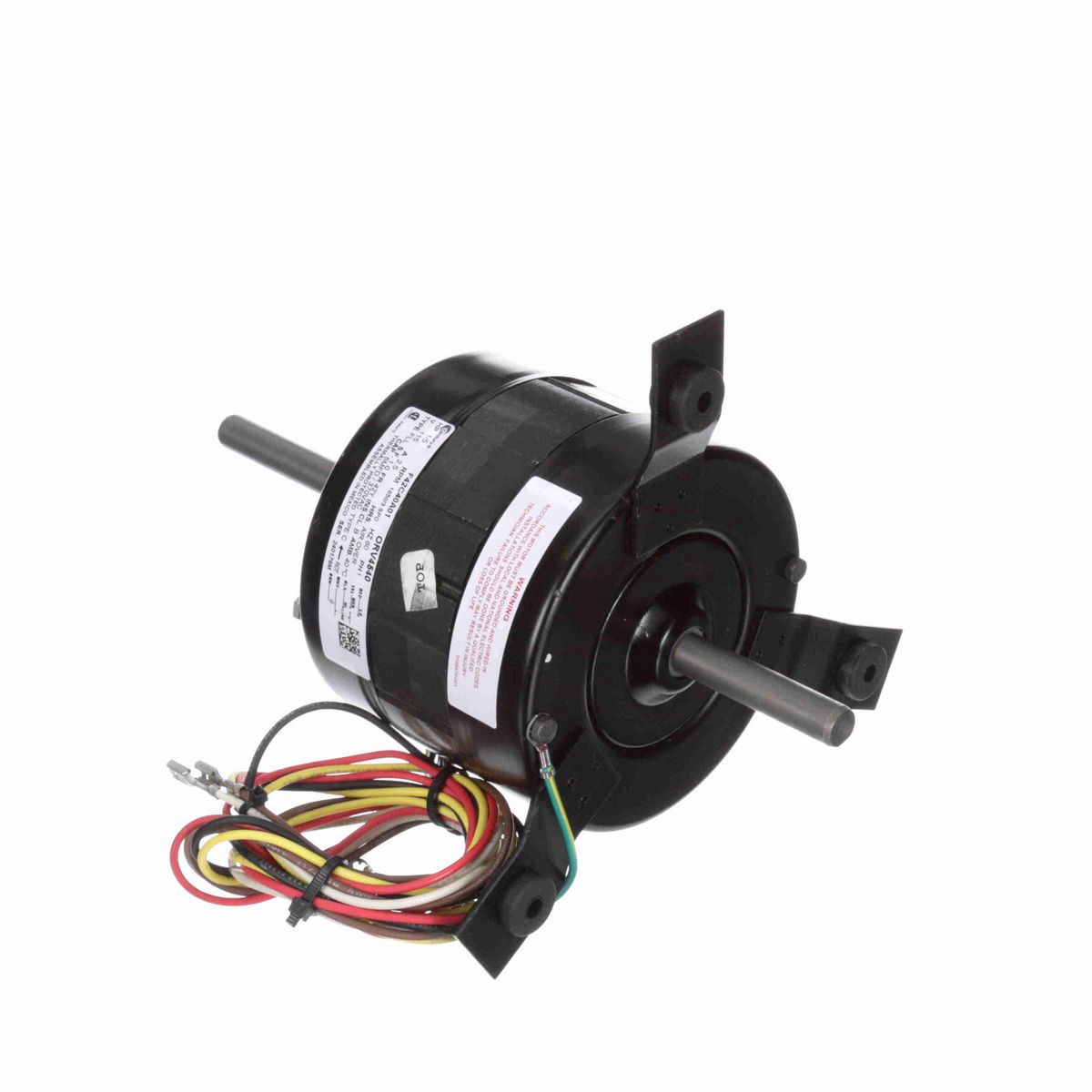

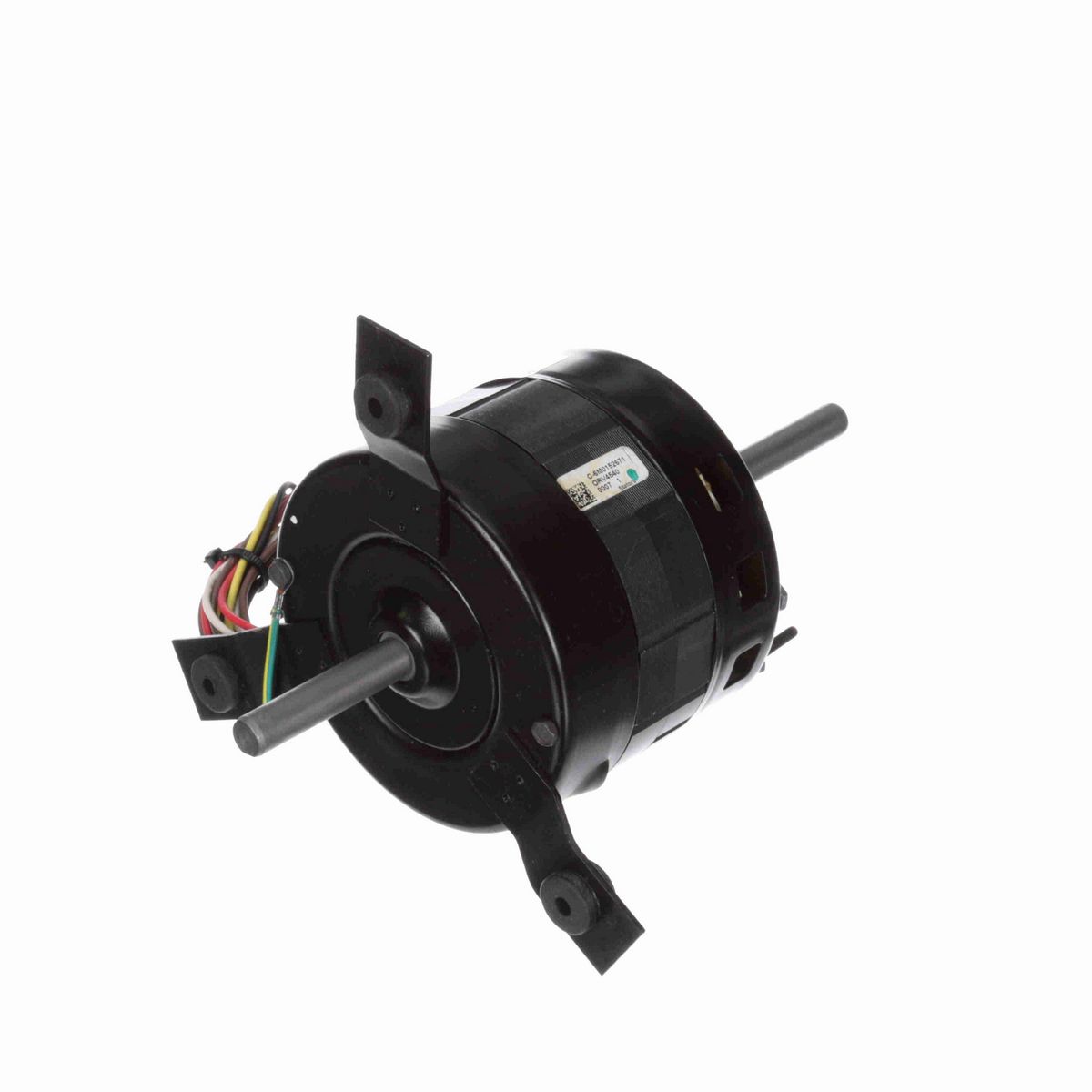

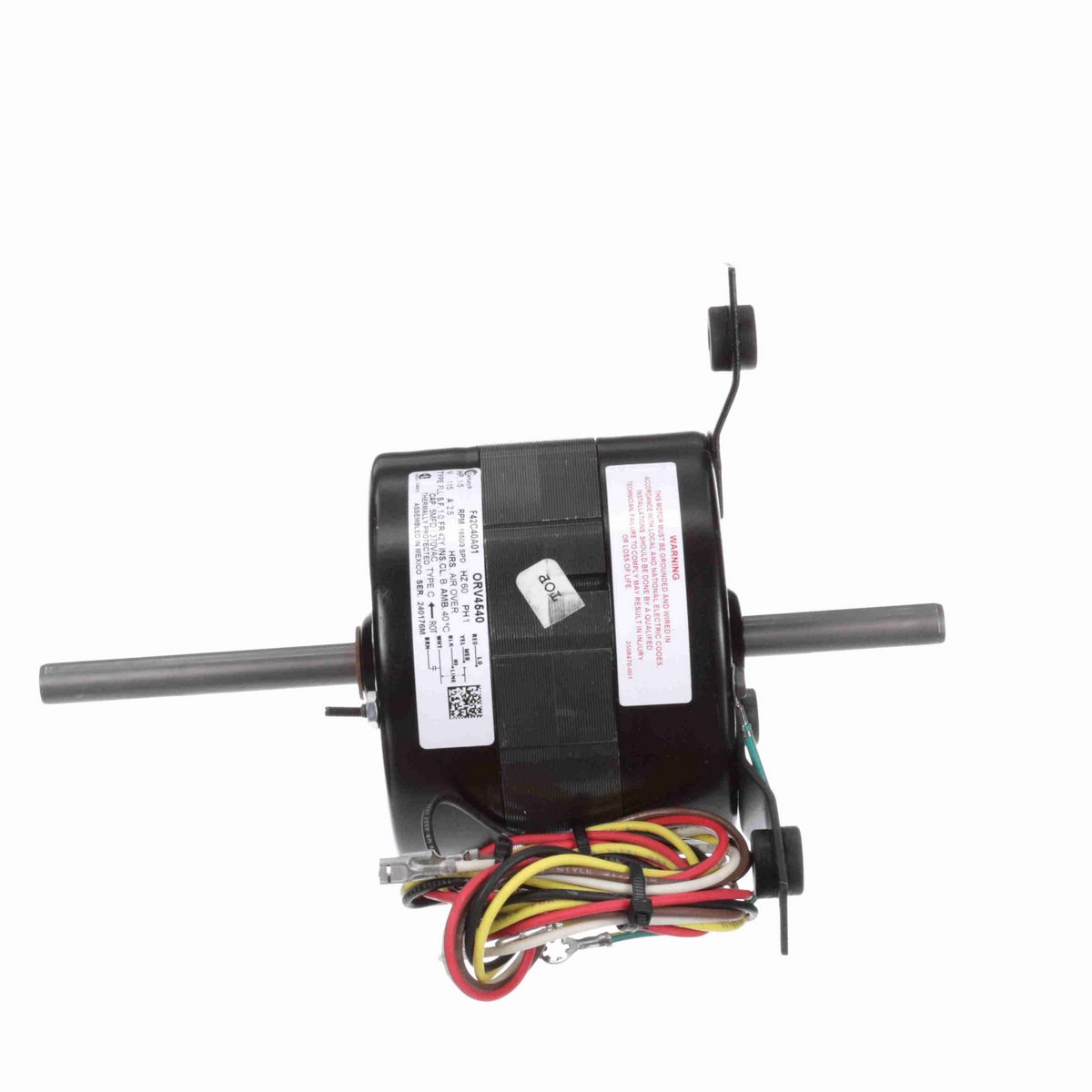

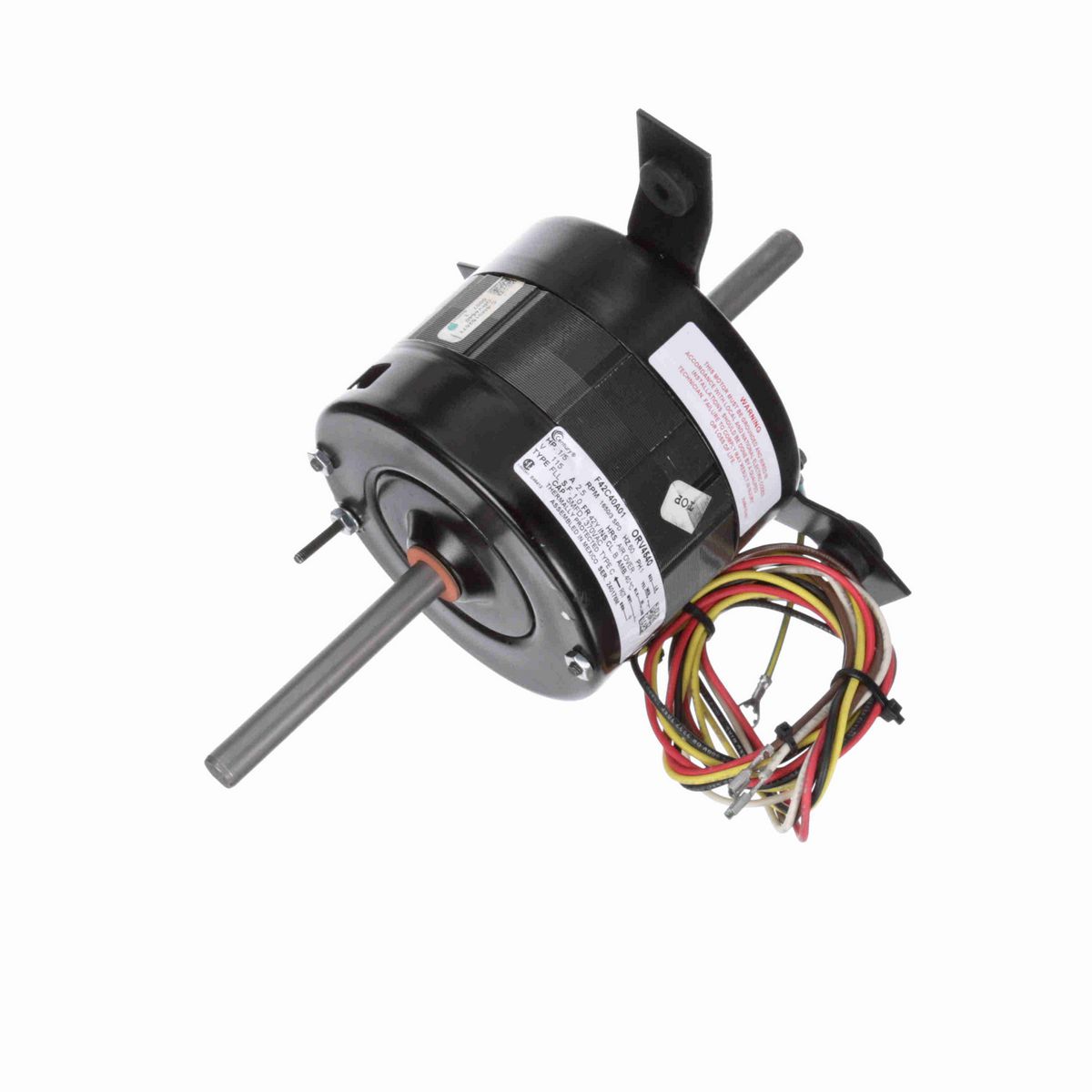

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Enclosed Lead End End-Frame and Opposite Lead End, Semi-Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Flat
• 42" Leads with AMP PINS, 26" Leads with Female Spade Terminals
• Lug Mount Opposite Lead End

Nameplate Specifications

Phase	1
Output HP	1/5 Hp
Output KW	0.15 kW
Voltage	115 V
Speed	1650 rpm
Service Factor	1
Frame	42Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.5 A
Duty	Air Over
Insulation Class	B
UL	No
CSA	Y
CE	N
Number of Speeds	3

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Counterclockwise Lead End
Mounting	Lug
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Na
Shaft Type	Flat
Overall Length	10.44 in
Shaft Diameter	0.500 in
Shaft Extension	4.0X.5X2.6 in

General Specifications

UPC	786674028426
Weight	11.00 LB
Packaged Length	11.00 IN
Packaged Width	8.00 IN
Packaged Height	9.00 IN
HTC	8501.40.4040
