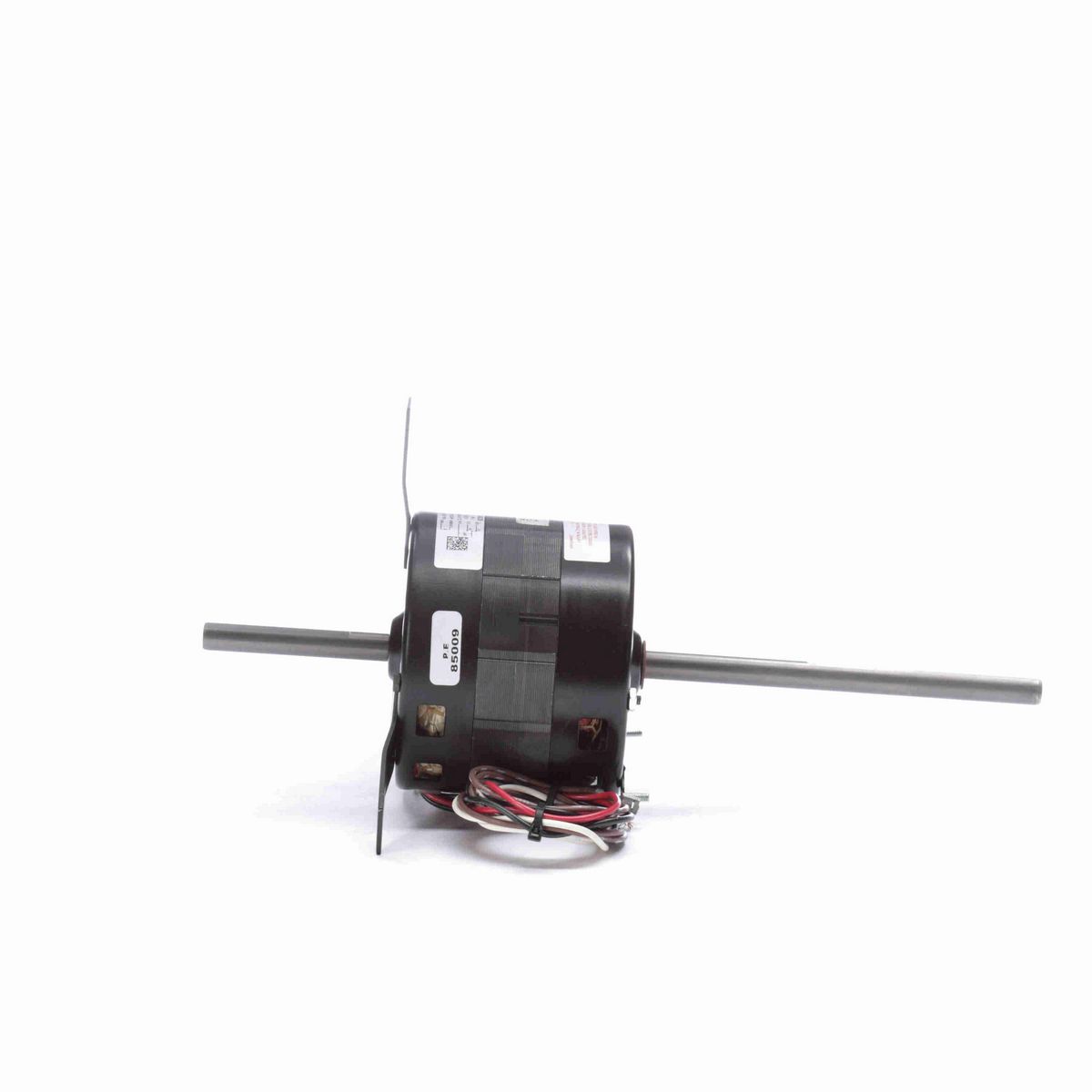

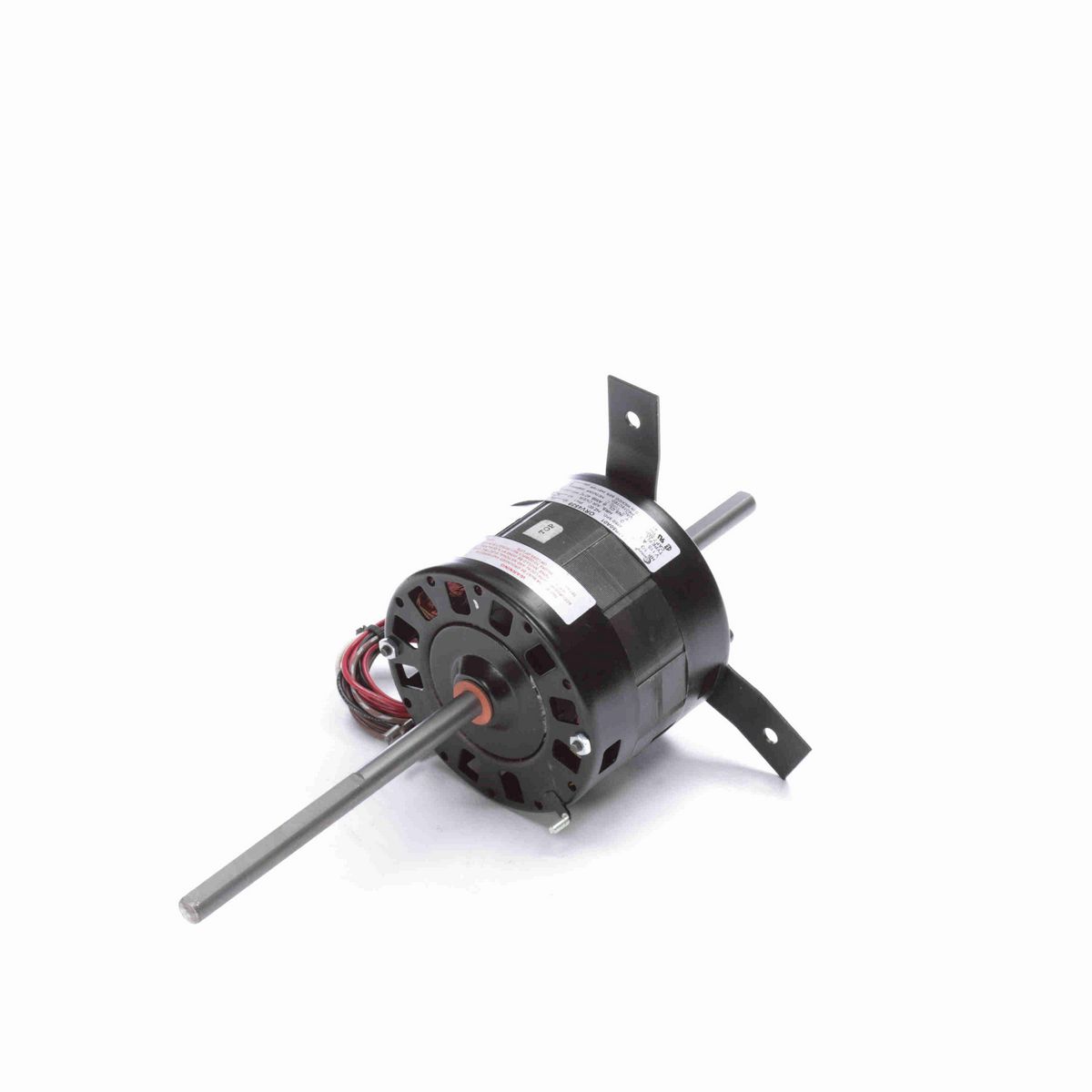

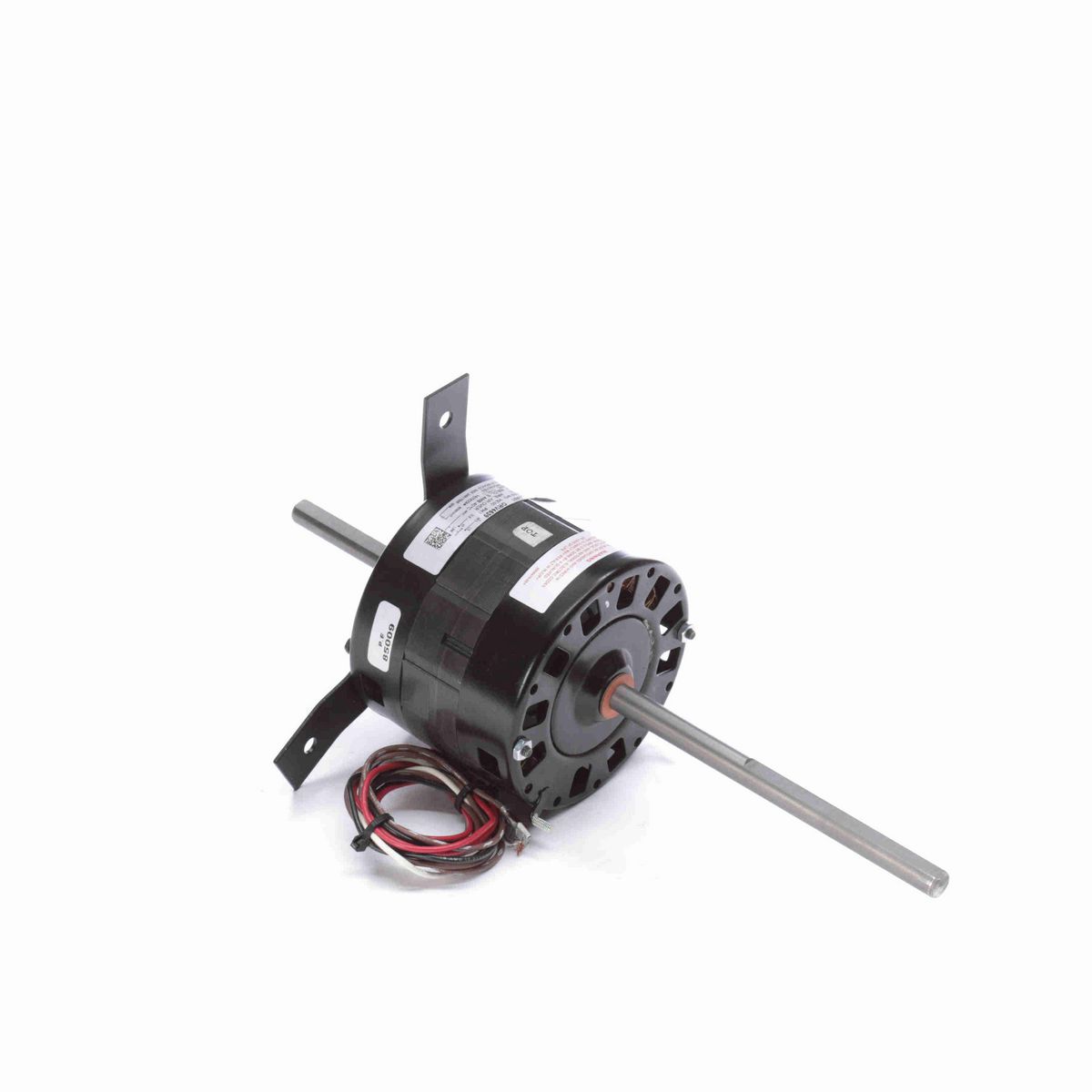

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Flat
• 23" Leads
• Lug Mount Lead End

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	115 V
Speed	1675 rpm
Service Factor	1.0
Frame	42Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.4 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	2

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	Lug
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Steel
Shaft Type	Flat
Overall Length	14.50 in
Shaft Diameter	0.500 in
Shaft Extension	3.5 X.5 X7.1 in

General Specifications

UPC	786674028419
Weight	11.00 LB
Packaged Length	16.00 IN
Packaged Width	9.00 IN
Packaged Height	8.00 IN
HTC	8501.40.4040
