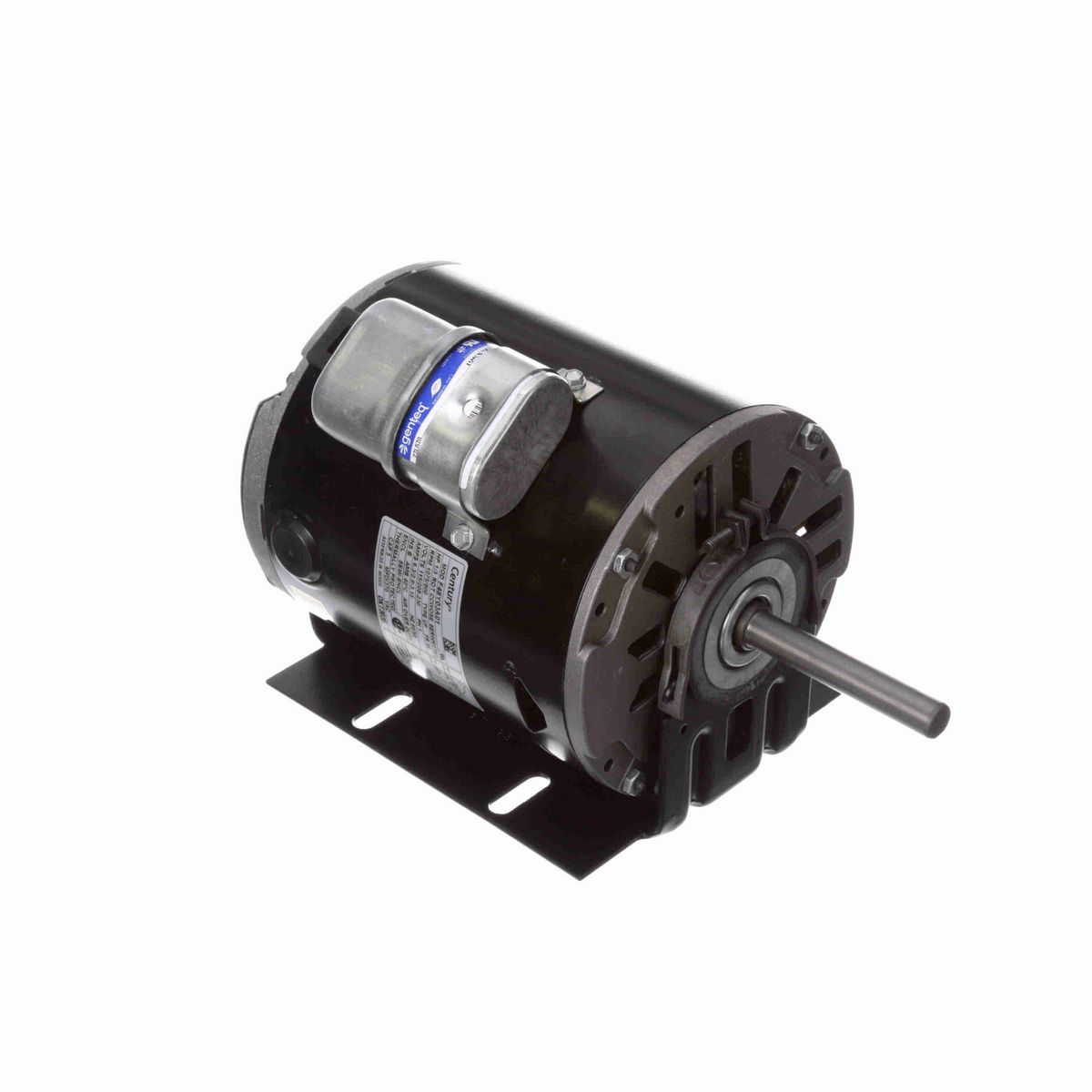

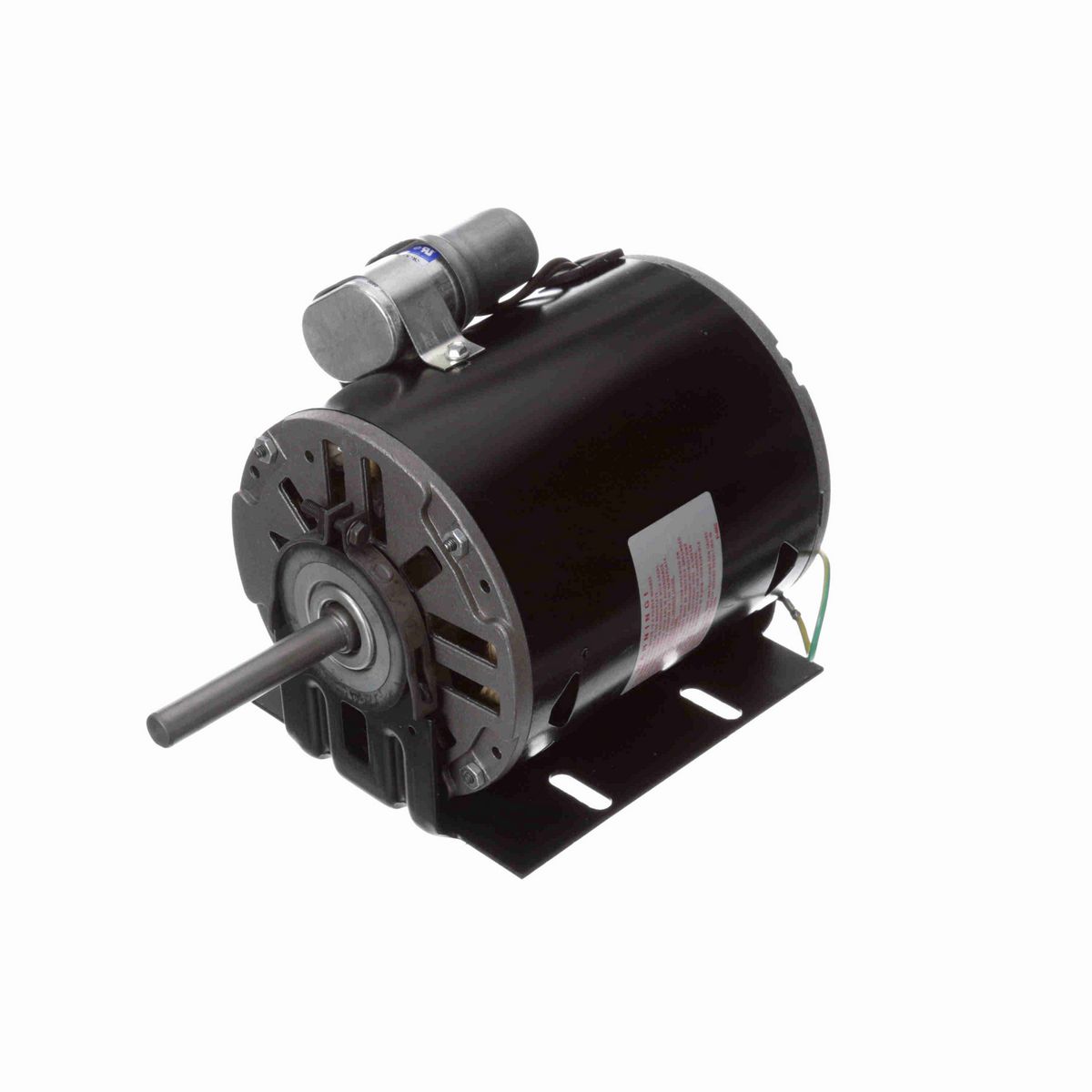

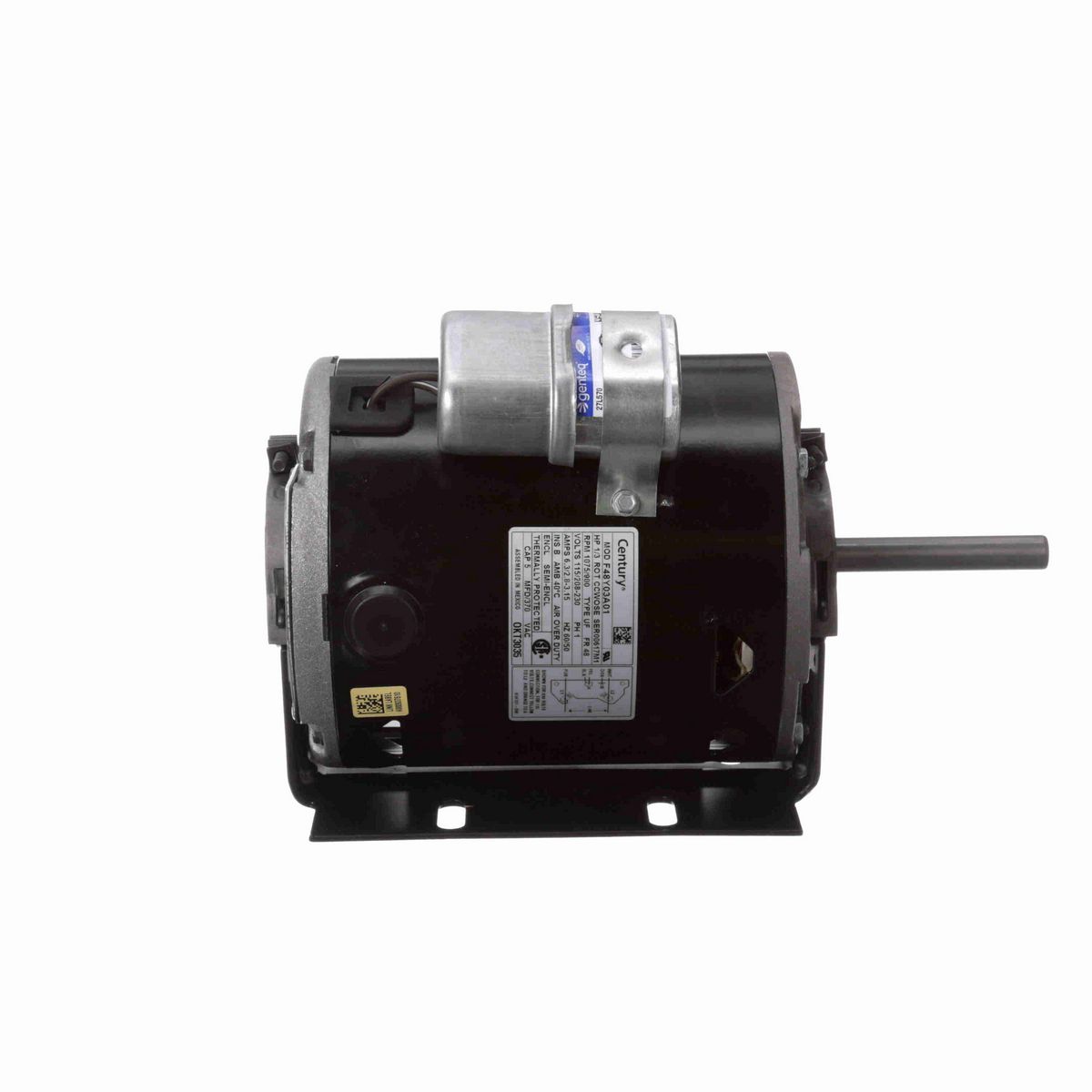

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Shaft End End-Frame, Enclosed Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 1/2" Conduit with Plug
• Resilient Base

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	115/208-230 V
Speed	1075/900 rpm
Service Factor	1.0
Frame	48
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	6.3/2.8-3.15 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Opposite Shaft End
Mounting	Resilient Base
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	10.50 in
Frame Length	5.75 in
Shaft Diameter	0.500 in
Shaft Extension	3.5 in

General Specifications

UPC	786674027764
Weight	15.00 LB
Packaged Length	13.00 IN
Packaged Width	7.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
