• Automatic reset thermal protector prevents overheating.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.

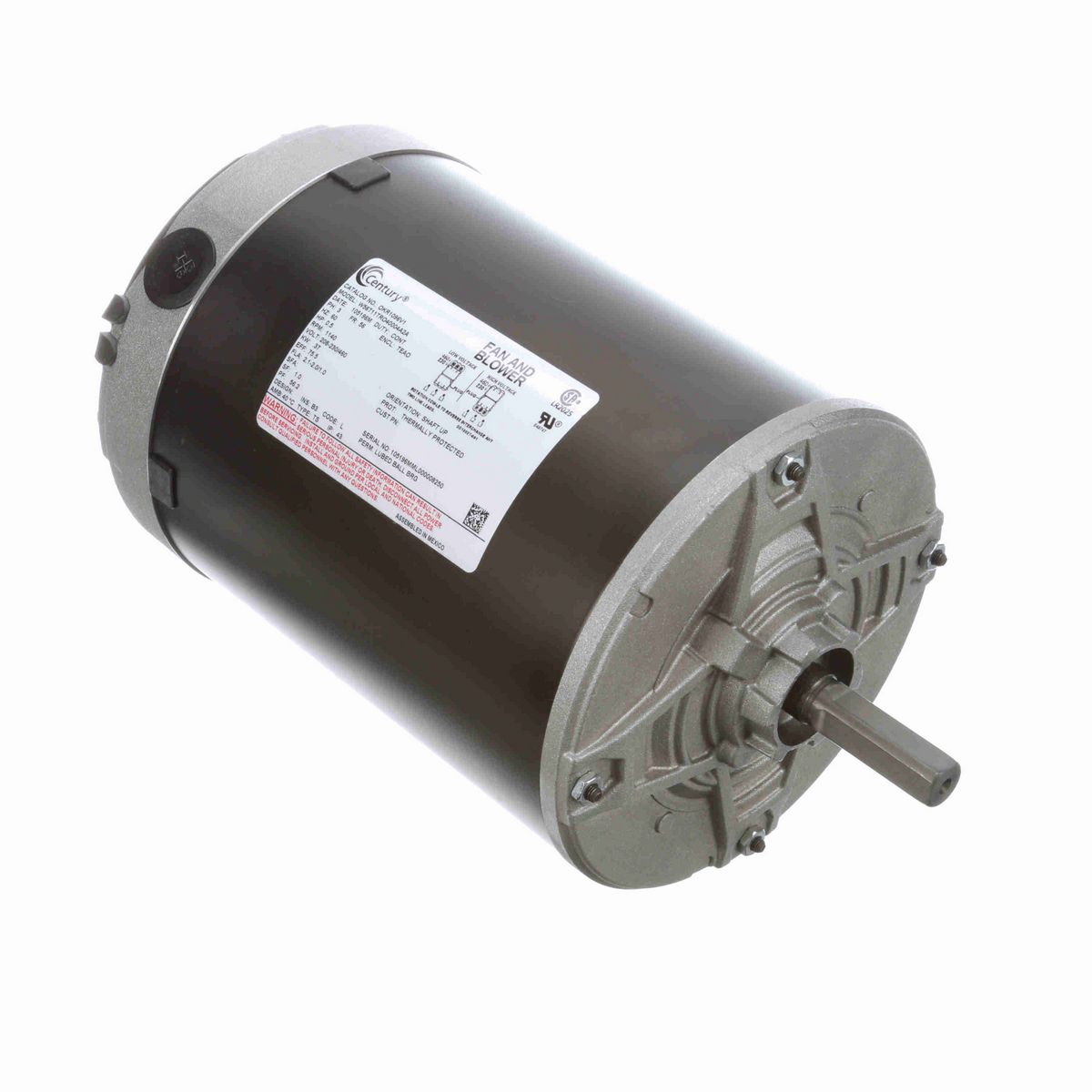

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	0.50 Hp
Output KW	0.37 kW
Voltage	230/460 V
Speed	1140 rpm
Service Factor	1.0
Frame	56
Enclosure	Totally Enclosed Air Over
Thermal Protection	Thermally Protected
Efficiency	75.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.0/1.0 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Three Phase
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Round
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	11.96 in
Frame Length	7.25 in
Shaft Diameter	0.625 in
Shaft Extension	1.91 in

General Specifications

UPC	786674075000
Weight	25.00 LB
Packaged Length	14.00 IN
Packaged Width	8.00 IN
Packaged Height	9.00 IN
HTC	8501.51.4040
Country of Origin	Mexico
