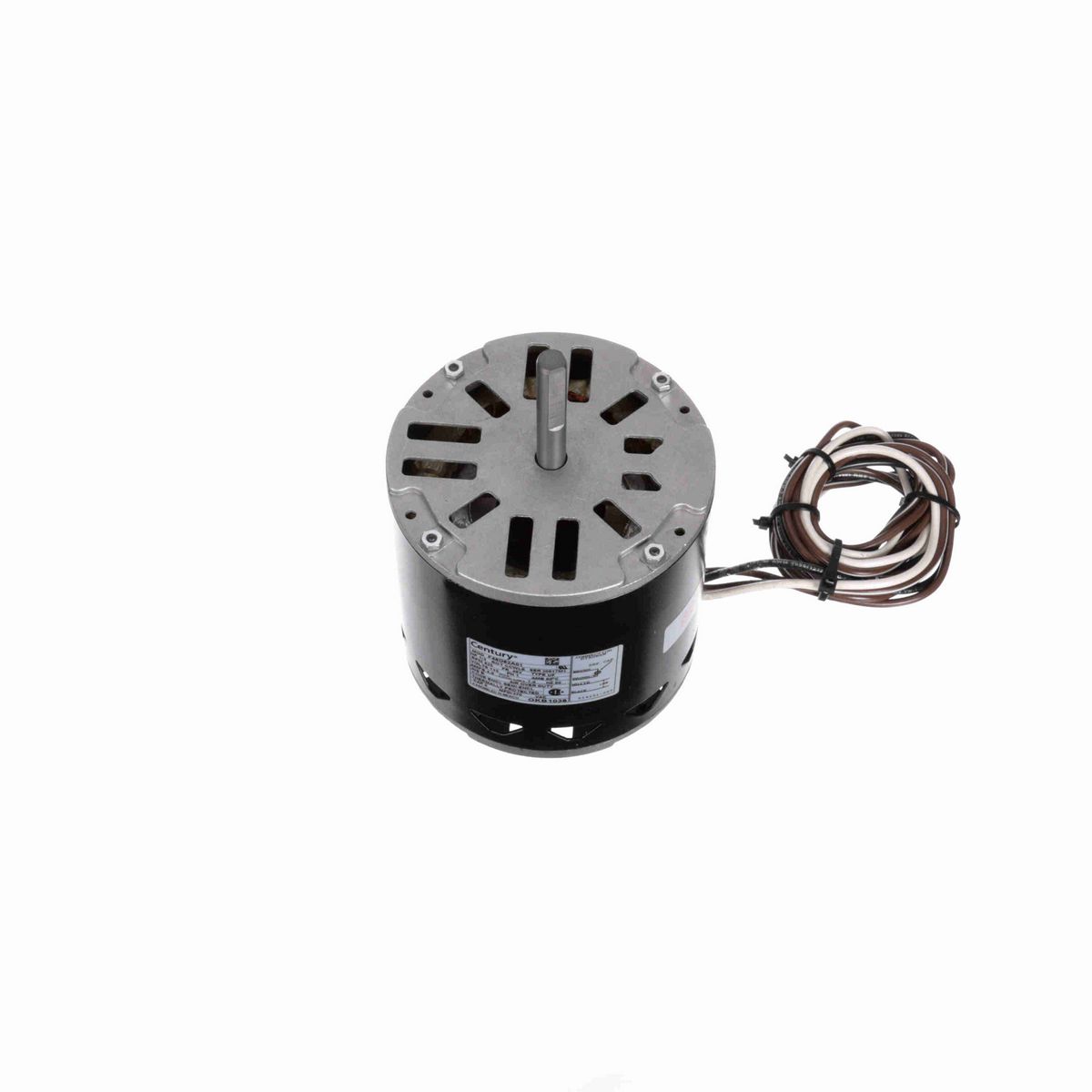

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Lead End End-Frame, Semi-Enclosed Shell, Air Over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Double Flat
• 40" Power Leads with Female Spade Terminals
• Vertical Shaft Up, Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	115 V
Speed	825 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	4.8 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	8
Rotation	Counterclockwise Lead End
Mounting	Round Belly Band
Motor Orientation	Vertical Shaft Up
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	8.00 in
Frame Length	4.81 in
Shaft Diameter	0.500 in
Shaft Extension	2.6 in

General Specifications

UPC	786674027719
Weight	15.00 LB
Packaged Length	12.18 IN
Packaged Width	7.31 IN
Packaged Height	7.37 IN
HTC	8501.40.4040
