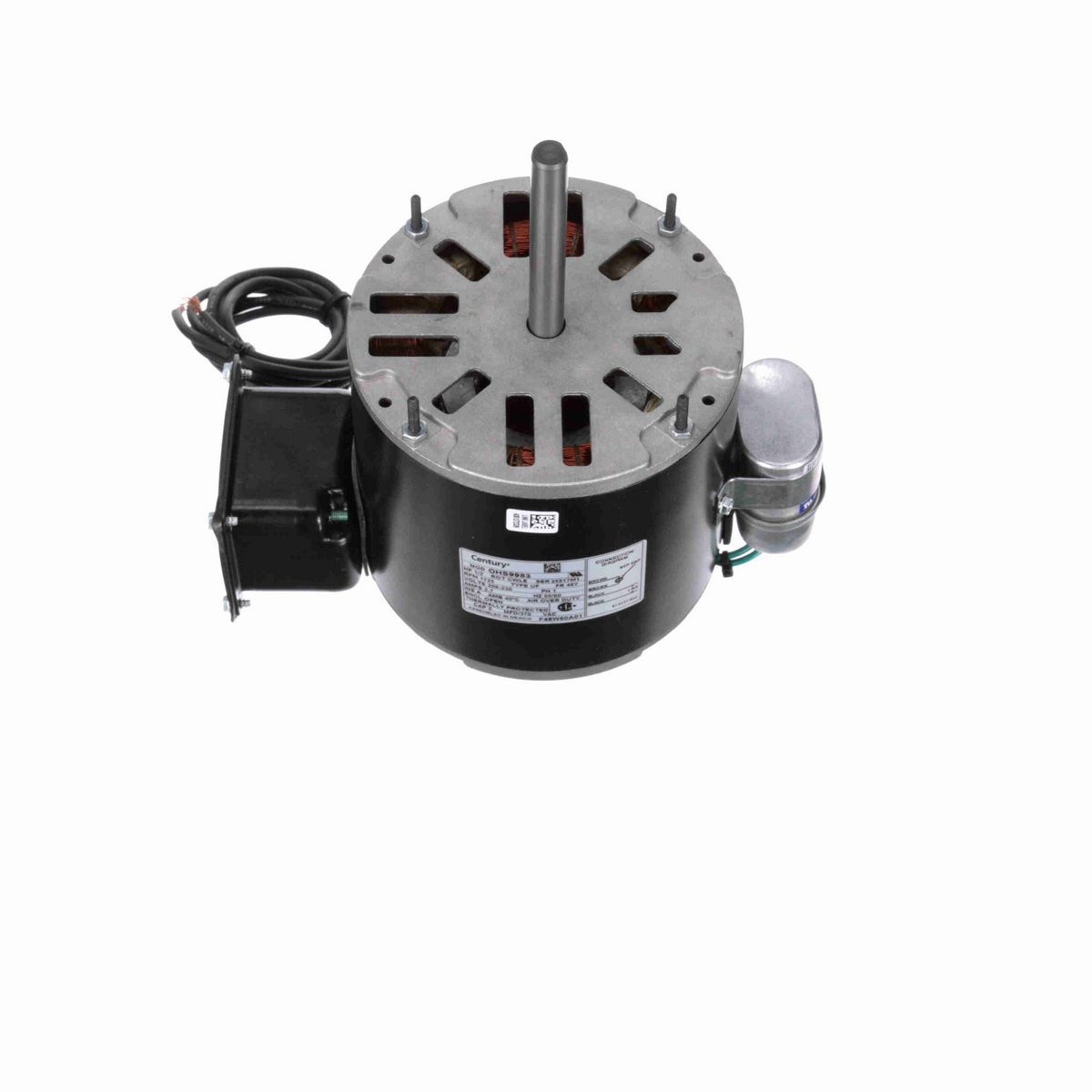

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Supplied with Motor)
• Thermally Protected
• Open Shaft End End-Frame, Enclosed Lead End End-Frame and Shell, Air Over
• Class A Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• Extended Studs Shaft End

Nameplate Specifications

Phase	1
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	208-230 V
Speed	1725 rpm
Service Factor	1
Frame	48Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	50 Hz
Current	2.7 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	4
Rotation	Clockwise Lead End
Mounting	Extended Studs
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	8.61 in
Frame Length	4.63 in
Shaft Diameter	0.500 in
Shaft Extension	3.5 in

General Specifications

UPC	786674027689
Weight	14.00 LB
Packaged Length	12.87 IN
Packaged Width	9.81 IN
Packaged Height	9.81 IN
HTC	8501.40.4040
Country of Origin	Mexico
