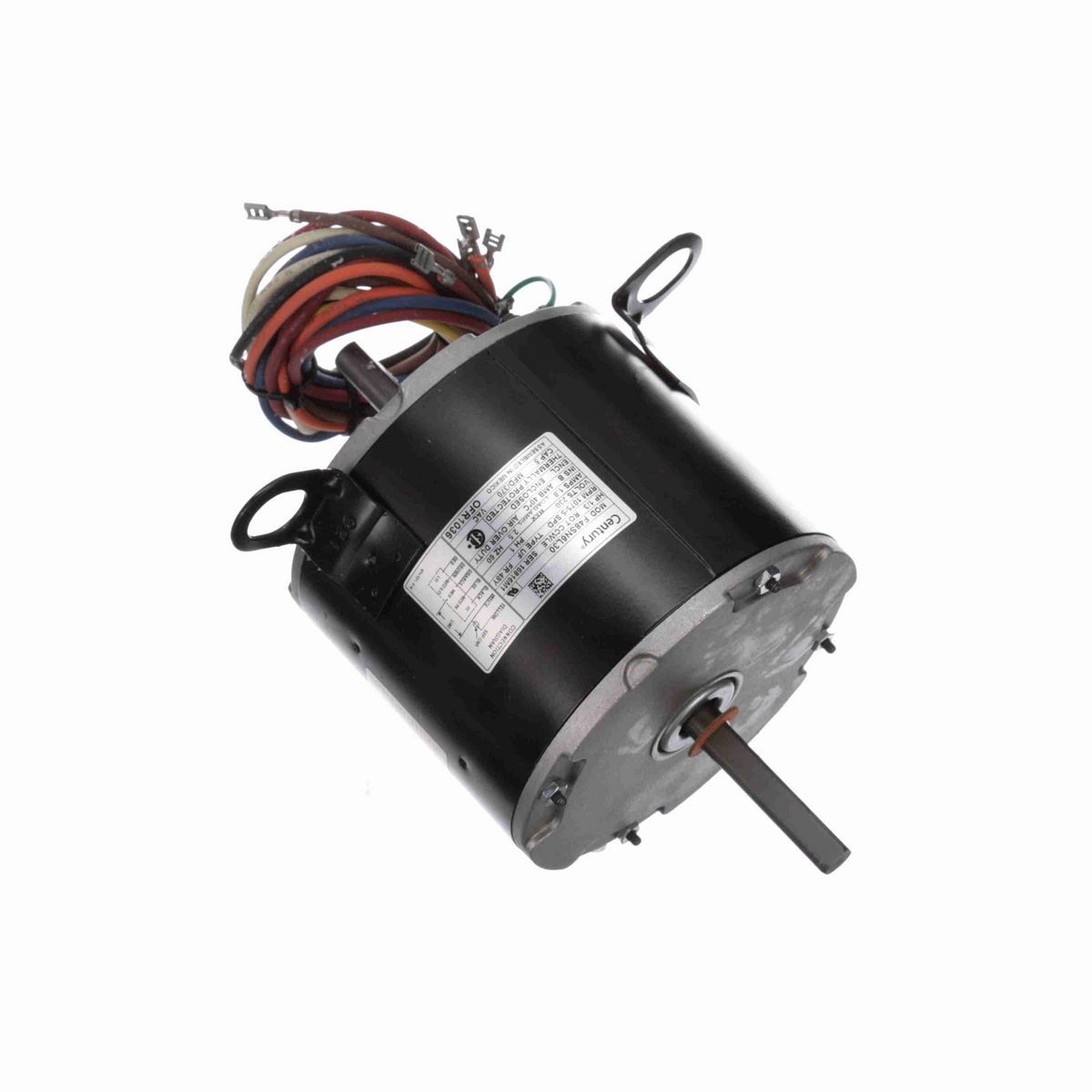

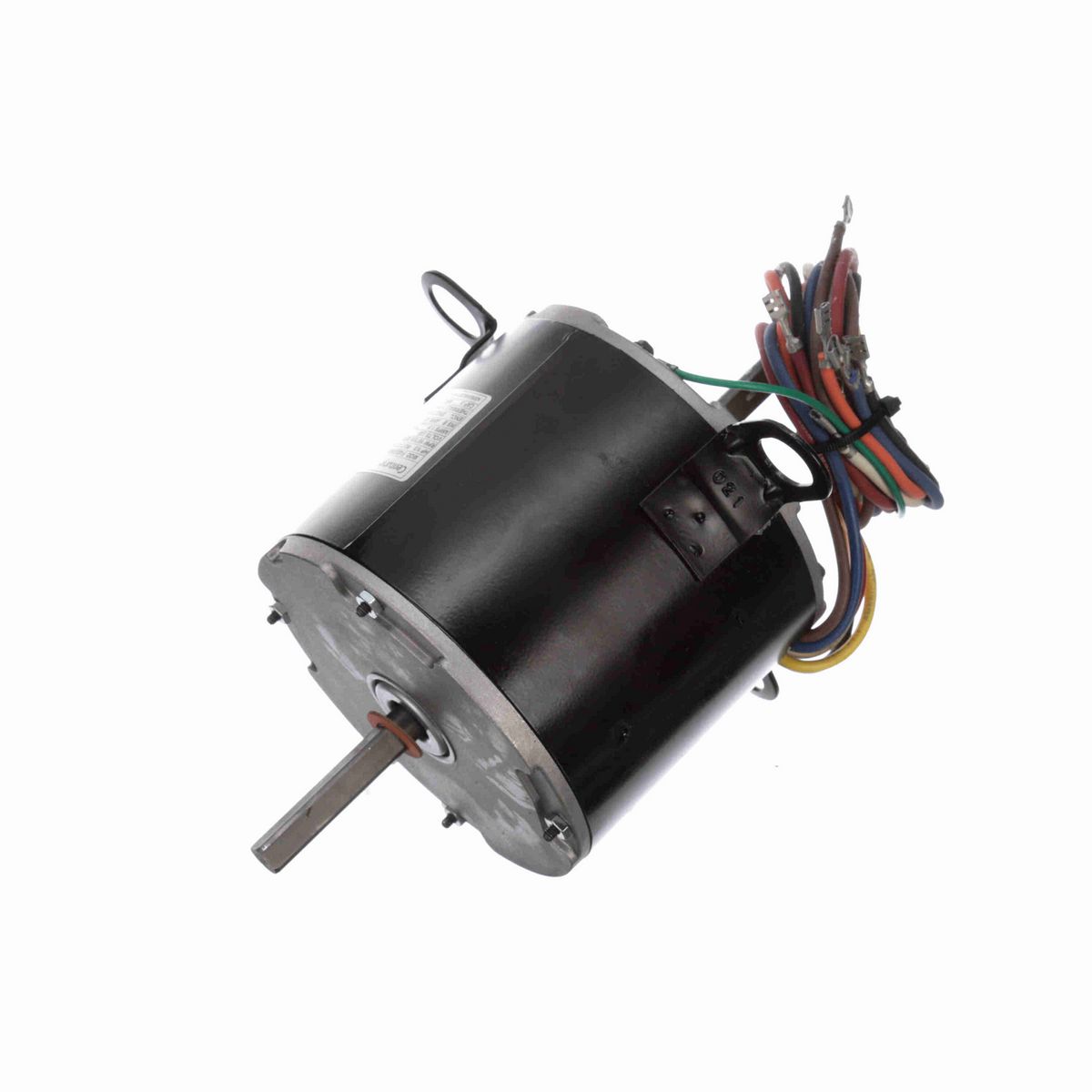

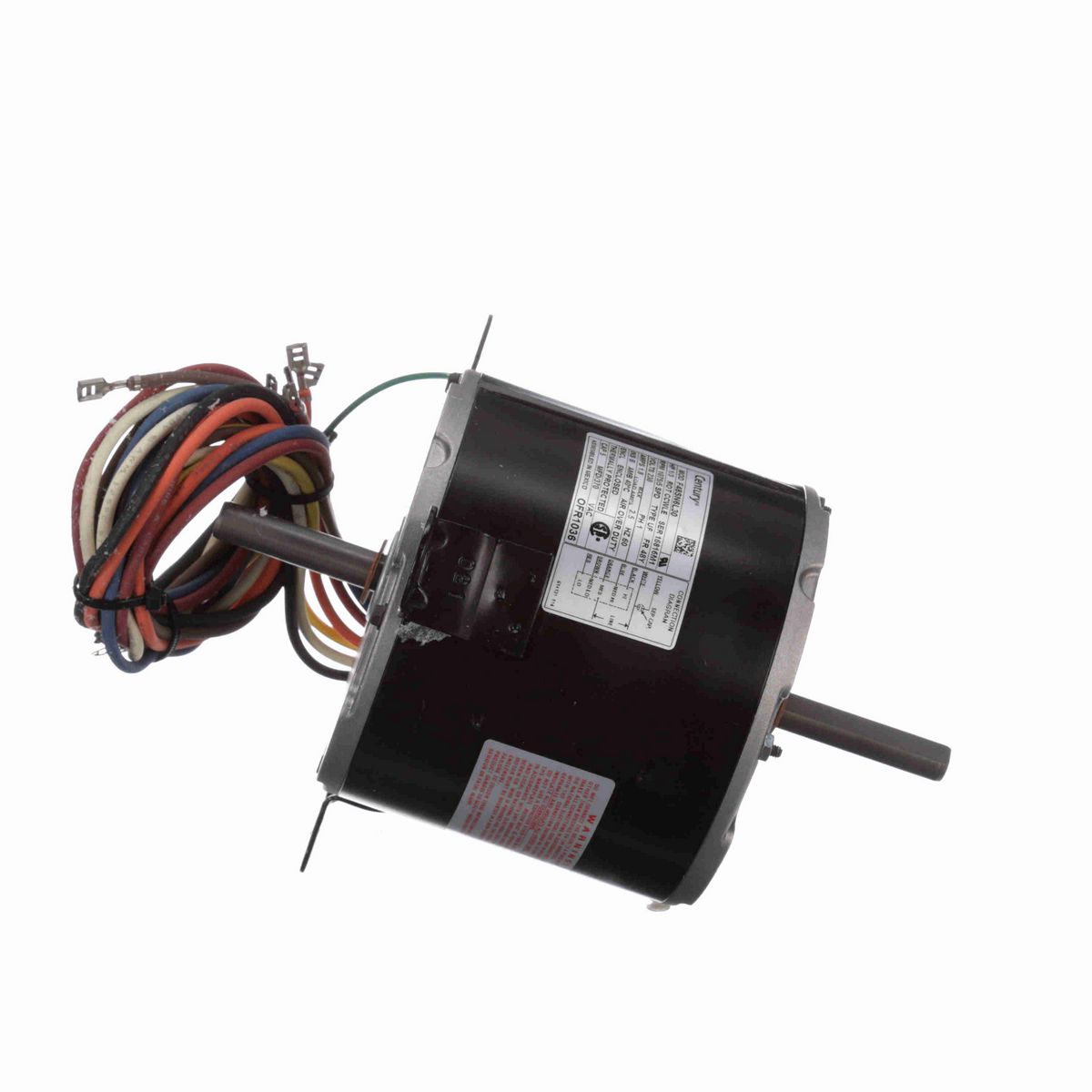

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Double Shaft with Double Flats
• 32" Leads with Spade Terminals
• Lug Mount

Nameplate Specifications

Phase	1
Output HP	1/3 Hp
Output KW	0.25 kW
Voltage	230 V
Speed	1075 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	1.8 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	5

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Lug
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	9.69 in
Frame Length	4.25 in
Shaft Diameter	0.500 in
Shaft Extension	2.3X.5X2.8 in

General Specifications

UPC	786674027603
Weight	17.00 LB
Packaged Length	11.00 IN
Packaged Width	8.00 IN
Packaged Height	9.00 IN
HTC	8501.40.4040
