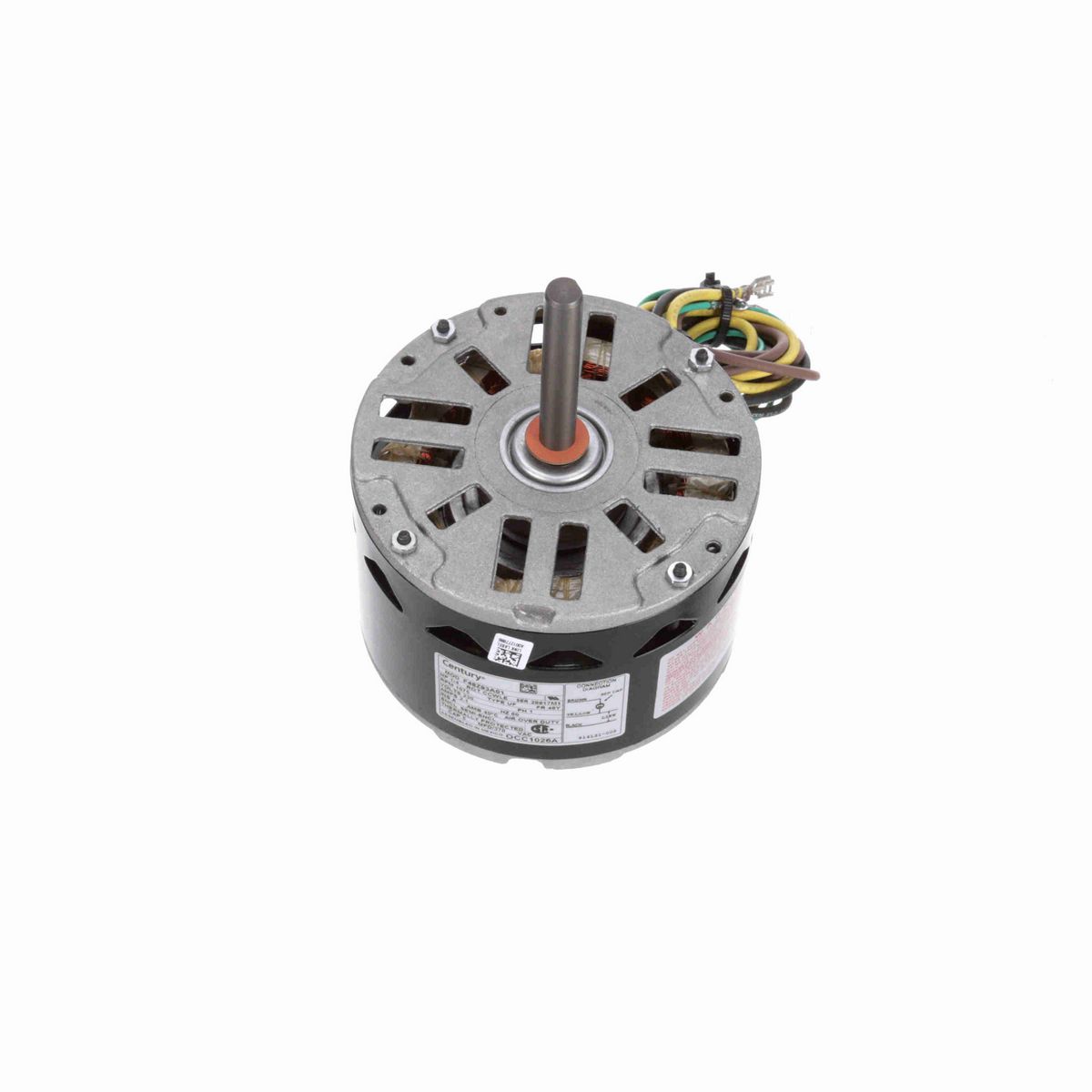

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
• Class A Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 29" Leads with Female Spade Terminals
• Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	230 V
Speed	1075 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	2.1 A
Duty	Air Over
Insulation Class	A
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Round Belly Band
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	7.11 in
Frame Length	3.25 in
Shaft Diameter	0.500 in
Shaft Extension	3.25 in

General Specifications

UPC	786674027351
Weight	10.00 LB
Packaged Length	12.18 IN
Packaged Width	7.31 IN
Packaged Height	7.37 IN
HTC	8501.40.4040
