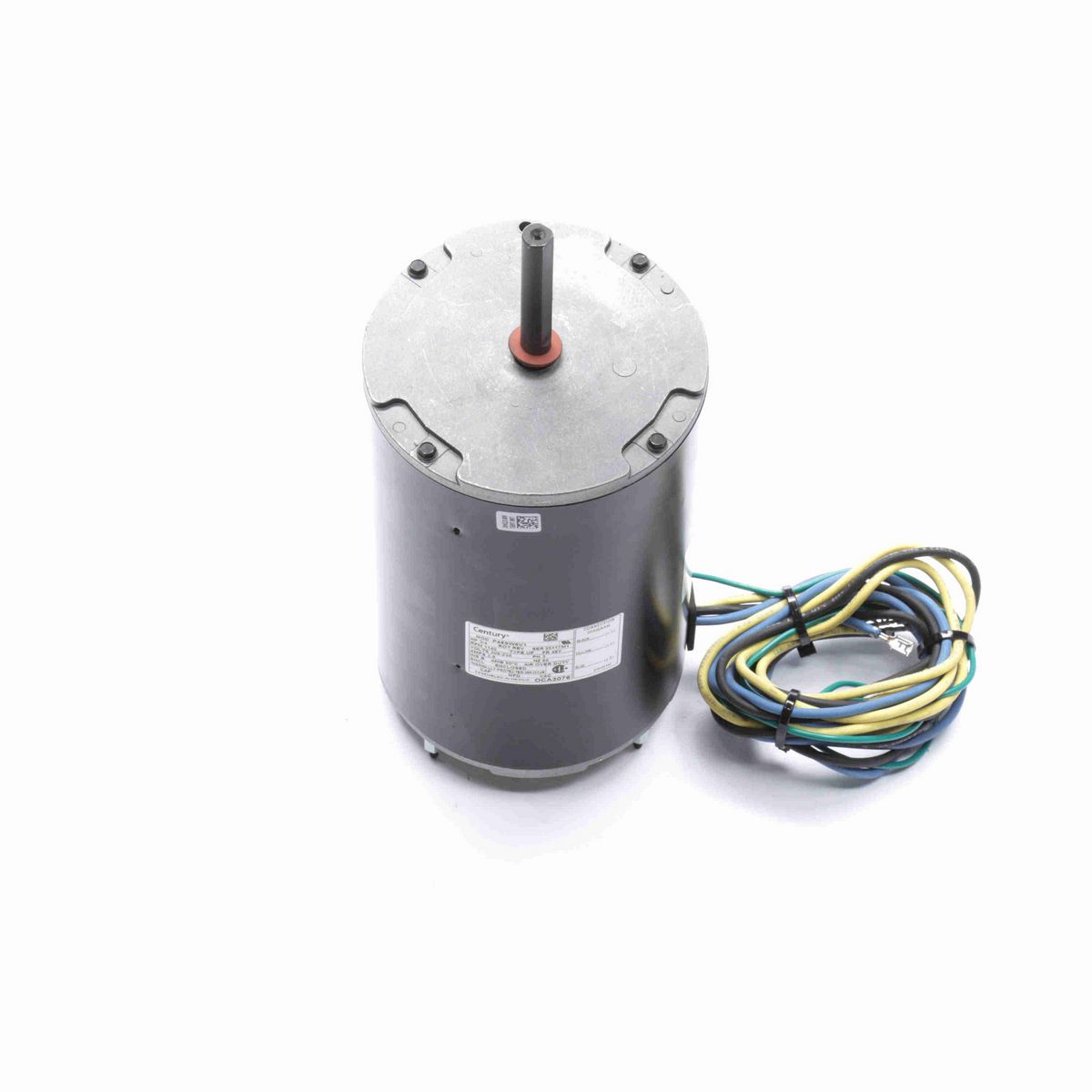

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Polyphase
• Thermally Protected
• Totally Enclosed Air Over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Double Flat
• 60" Leads with Quick Connect Terminals
• Extended Studs Opposite Shaft End, Vertical Shaft Down

Nameplate Specifications

Phase	3
Output HP	3/4 Hp
Output KW	0.56 kW
Voltage	208-230 V
Speed	1140 rpm
Service Factor	1
Frame	48Y
Enclosure	Totally Enclosed
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	3.8 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Polyphase
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Motor Orientation	Vertical Shaft Down
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Double Flat
Overall Length	12.60 in
Frame Length	8.13 in
Shaft Diameter	0.500 in
Shaft Extension	3 in

General Specifications

UPC	786674027276
Weight	27.00 LB
Packaged Length	13.18 IN
Packaged Width	7.25 IN
Packaged Height	7.37 IN
HTC	8501.51.4040
Country of Origin	Mexico
