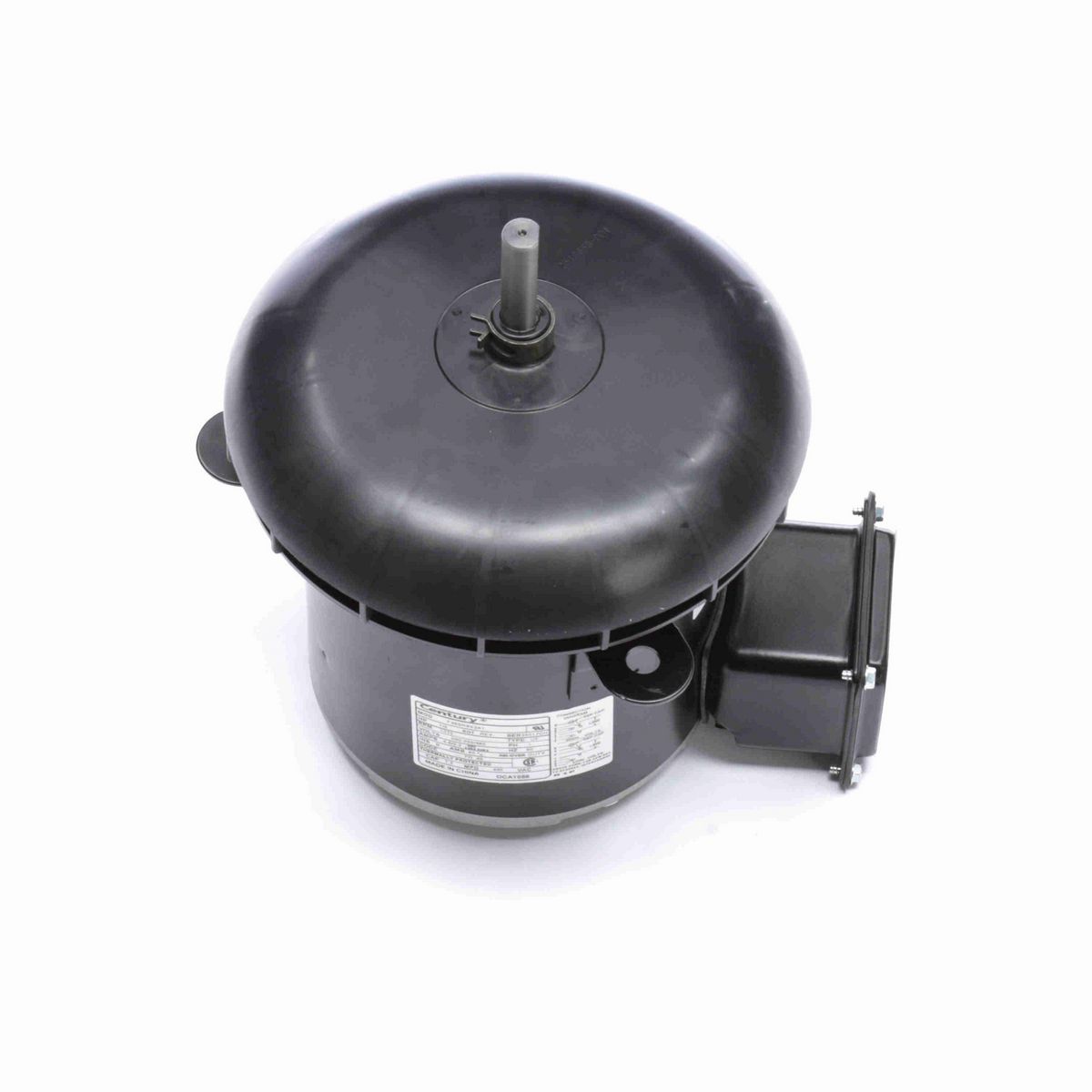

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-440 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Shaft End and Opposite Shaft End End-Frame, Semi-Enclosed Shell, Air over
• Class B Insulation, 60°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• Conduit Box
• Lug Mount, Vertical Shaft Up

Nameplate Specifications

Phase	1
Output HP	1/2 Hp
Output KW	0.37 kW
Voltage	200-230/460 V
Speed	1075 rpm
Service Factor	1
Frame	48Y
Enclosure	Semi Enclosed
Thermal Protection	Automatic
Ambient Temperature	60 °C
Frequency	60 Hz
Current	4.6/2.3 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Lug
Motor Orientation	Vertical Shaft Up
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	9.74 in
Frame Length	5.75 in
Shaft Diameter	0.500 in
Shaft Extension	1.6 in

General Specifications

UPC	786674027252
Weight	21.00 LB
Packaged Length	10.20 IN
Packaged Width	12.20 IN
Packaged Height	9.10 IN
HTC	8501.40.4040
Country of Origin	India
