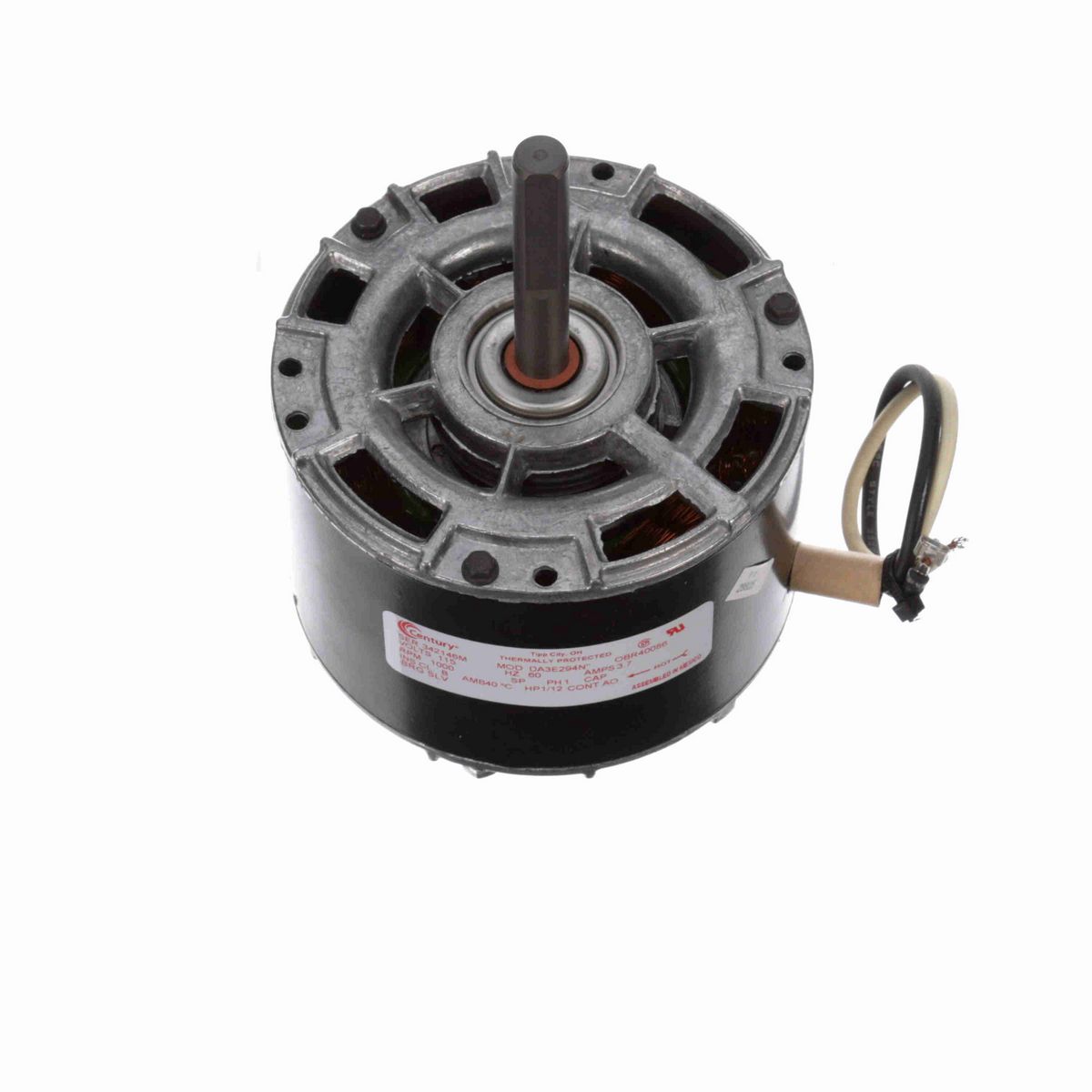

• OEM Direct Replacement Motor
• 5" Diameter - 42 Frame
• Shaded Pole
• Thermally Protected
• Open Shaft End and Opposite Shaft End End-Frame, Enclosed Shell, Air Over
• Class B Insulation, 40°C Ambient
• Sleeve Bearing
• 1/2" Diameter Shaft with Flat
• 8" Leads
• Belly Band Mount (Belly Band Not Included)

Nameplate Specifications

Phase	1
Output HP	1/12 Hp
Output KW	0.06 kW
Voltage	115 V
Speed	1000 rpm
Service Factor	1
Frame	42Y
Enclosure	Open Air Over
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60 Hz
Current	3.7 A
Duty	Air Over
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Shaded Pole
Starting Method	Across The Line
Poles	6
Rotation	Counterclockwise Lead End
Mounting	Round Belly Band
Motor Orientation	Horizontal
Drive End Bearing	Sleeve
Opp Drive End Bearing	Sleeve
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	7.50 in
Frame Length	2.92 in
Shaft Diameter	0.500 in
Shaft Extension	3 in

General Specifications

UPC	786674027153
Weight	6.00 LB
Packaged Length	8.87 IN
Packaged Width	6.81 IN
Packaged Height	6.81 IN
HTC	8501.40.2040
