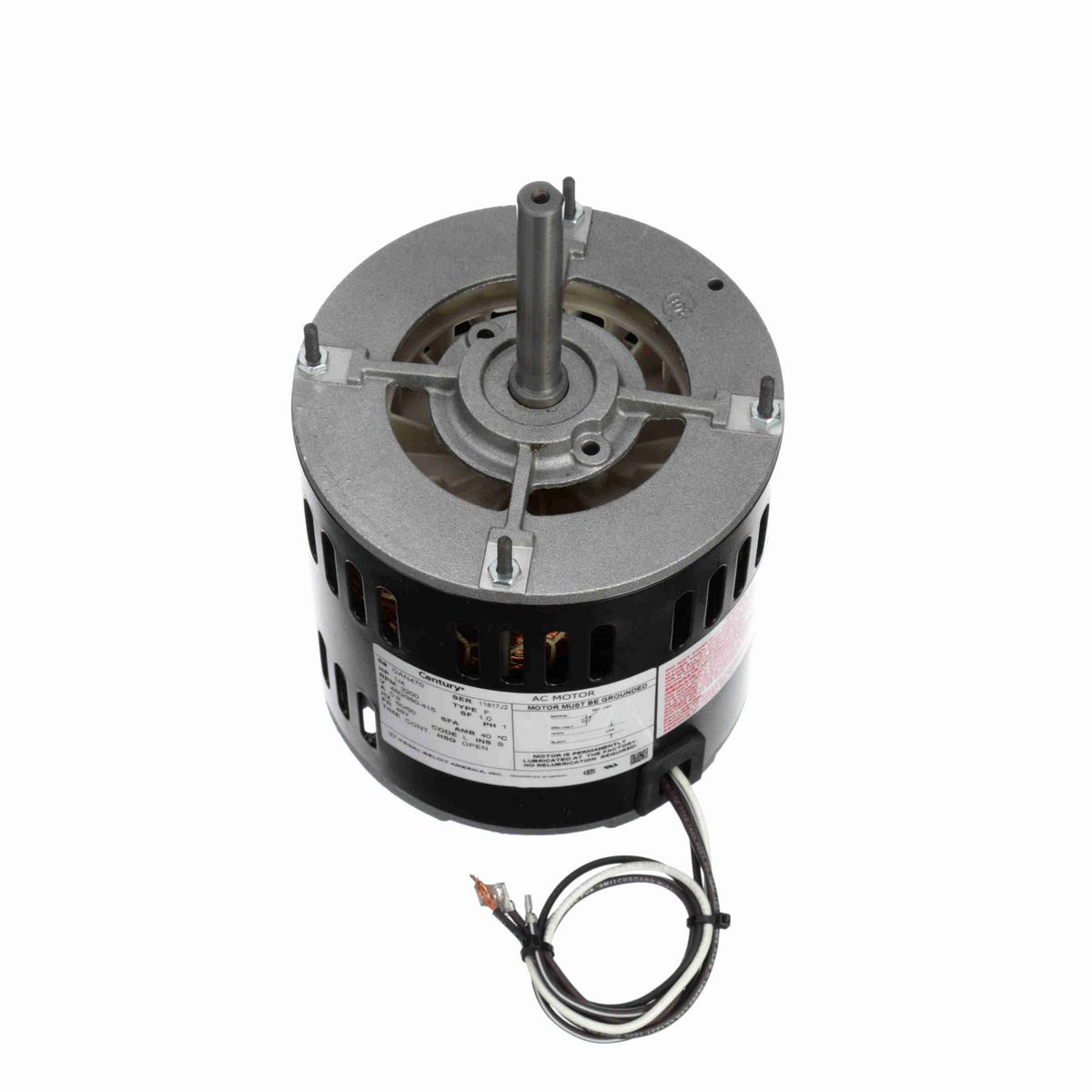

• OEM Direct Replacement Motor
• 5.6" Diameter - 48 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 5 Mfd-370 Volts (Not Supplied with Motor)
• Thermally Protected
• Open Air Over
• Class B Insulation, 40°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 11" Leads
• Extended Studs Shaft End, Belly Band Mount

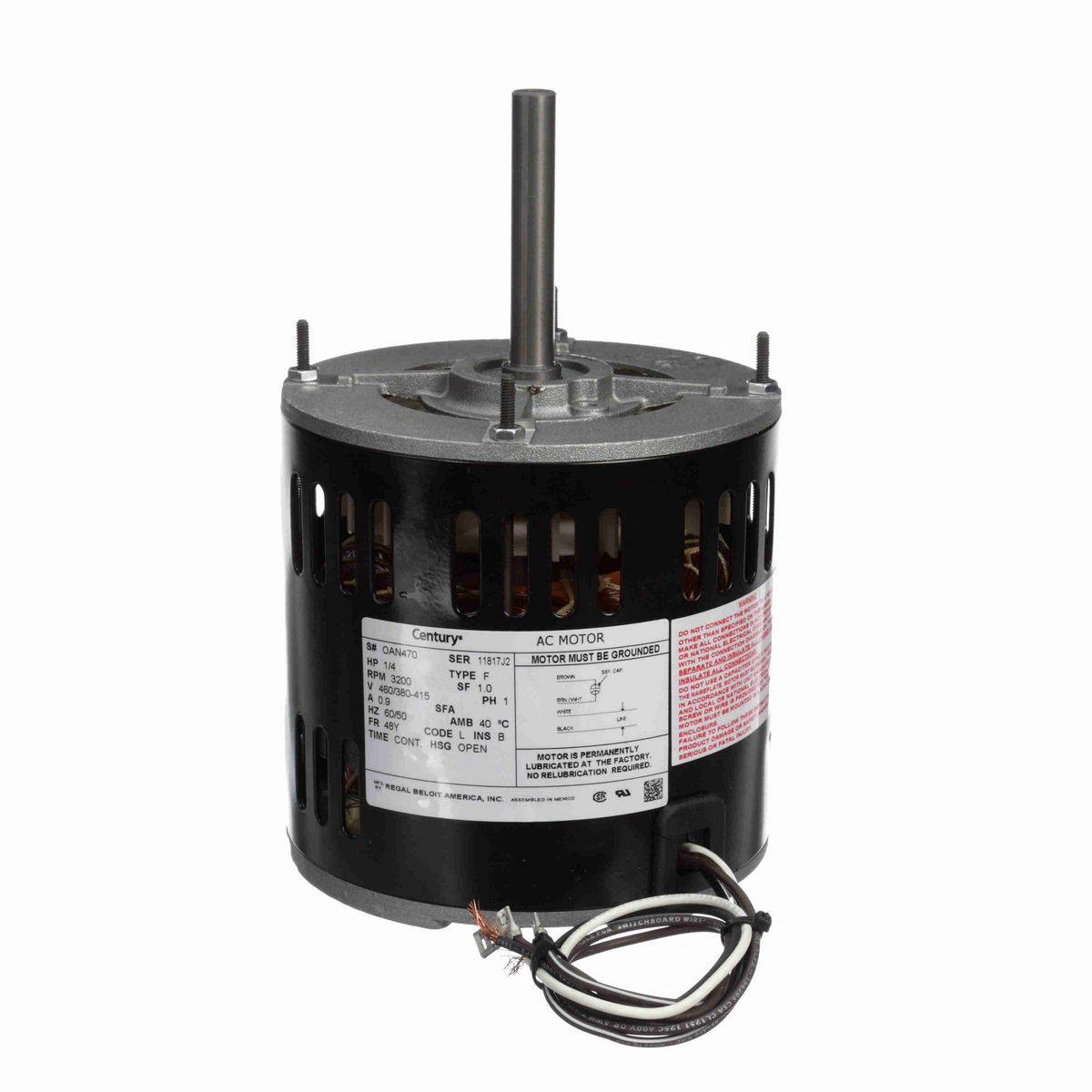

Nameplate Specifications

Phase	1
Output HP	1/4 Hp
Output KW	0.19 kW
Voltage	460/380-415 V
Speed	3200 rpm
Service Factor	1.0
Frame	48Y
Enclosure	Open Enclosed
Thermal Protection	Automatic
Ambient Temperature	40 °C
Frequency	60/50 Hz
Current	0.9 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	2
Rotation	Counterclockwise Lead End
Mounting	Round Belly Band
Motor Orientation	Horizontal
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	8.74 in
Frame Length	4.98 in
Shaft Diameter	0.500 in
Shaft Extension	3-1/4 in

General Specifications

UPC	786674026958
Weight	11.00 LB
Packaged Length	13.00 IN
Packaged Width	7.00 IN
Packaged Height	10.00 IN
HTC	8501.40.4040
Country of Origin	Mexico
