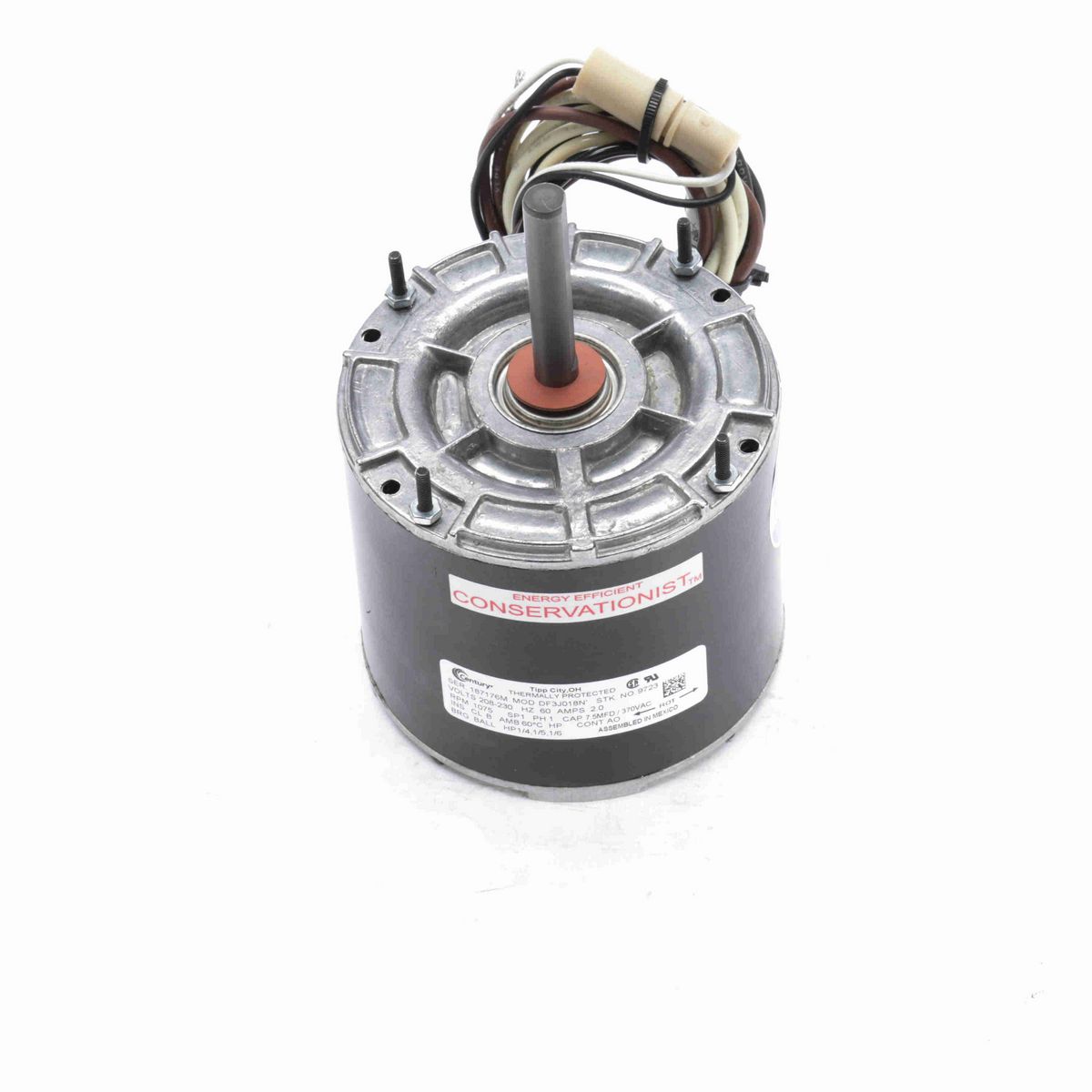

• MultiFit - Condenser Fan Motor
• 5" Diameter - 42 Frame
• Permanent Split Capacitor (PSC); Capacitor Required: 7.5 Mfd-440 Volts (Not Supplied with Motor)
• Thermally Protected
• Totally Enclosed Air Over
• Class F Insulation, 60°/70°C Ambient
• Ball Bearing
• 1/2" Diameter Shaft with Flat
• 36" Leads
• Multi-Mounting System™ (4.33, 4.42, 4.62 Bolt Circle), Extend Studs Shaft End and Opposite Shaft End

Nameplate Specifications

Phase	1
Output HP	1/4-1/5-1/6 Hp
Output KW	0.19 kW
Voltage	208-230 V
Speed	1075 rpm
Service Factor	1.0
Frame	42
Enclosure	Totally Enclosed Air Over
Thermal Protection	Automatic
Ambient Temperature	70 °C
Frequency	60 Hz
Current	2.0 A
Duty	Air Over
Insulation Class	F
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Permanent Split Capacitor
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Extended Studs
Motor Orientation	Any
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Flat
Overall Length	7.50 in
Frame Length	4.77 in
Shaft Diameter	0.500 in
Shaft Extension	3.0 in

General Specifications

UPC	786674009845
Weight	12.00 LB
Packaged Length	8.87 IN
Packaged Width	5.81 IN
Packaged Height	5.81 IN
HTC	8501.40.4040
Country of Origin	India
