• Heavy gauge steel construction

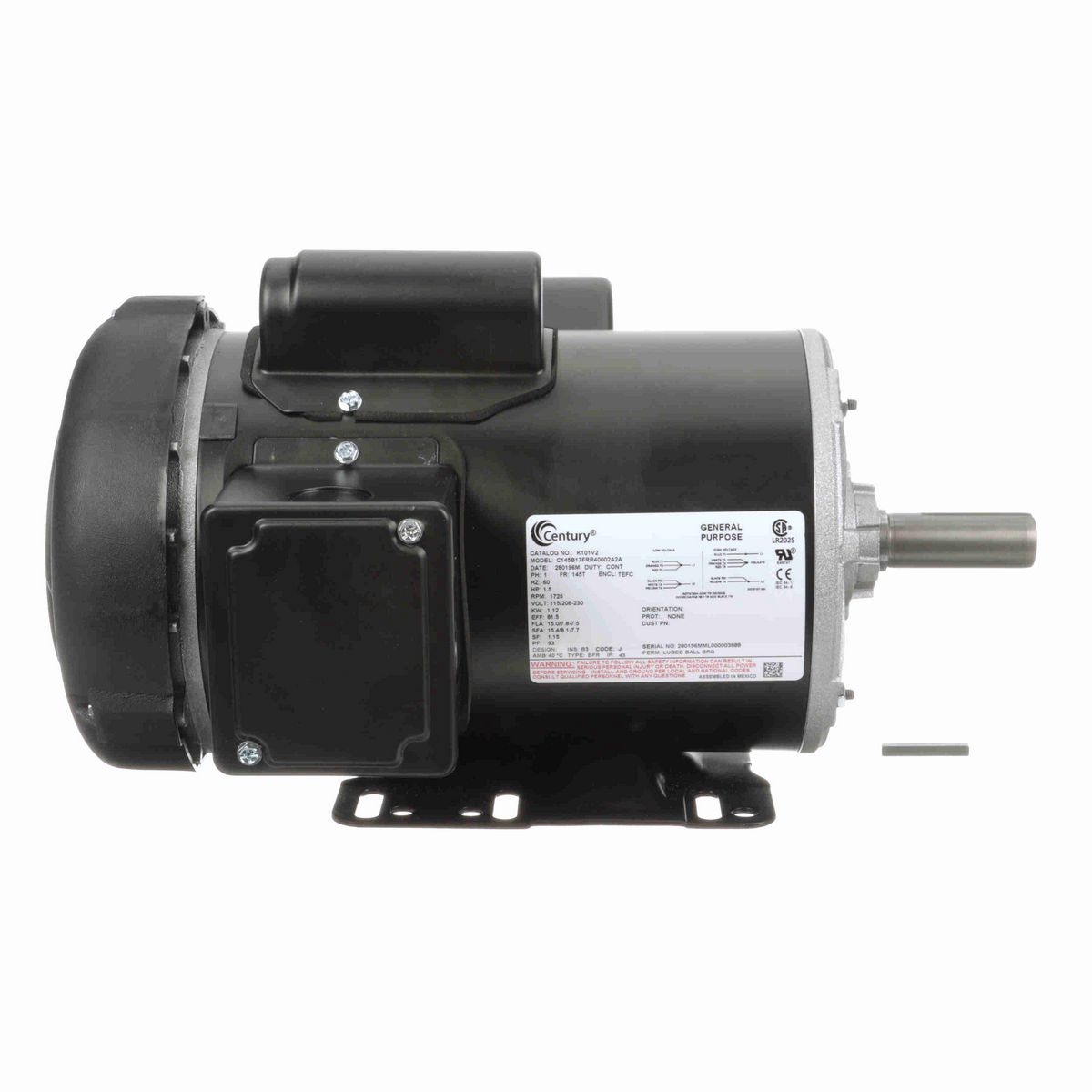

• Operational at 115/208-230 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	1
Output HP	1.5 Hp
Output KW	1.1 kW
Voltage	115/208-230 V
Speed	1725 rpm
Service Factor	1.15
Frame	145T
Enclosure	Totally Enclosed Fan Cooled
Thermal Protection	No Protection
Efficiency	81.5 %
Ambient Temperature	40 °C
Frequency	60 Hz
Current	15.0/7.8-7.5 A
Duty	Continuous
Insulation Class	B
UL	Recognized
CSA	Y
CE	Y
Number of Speeds	1

Technical Specifications

Electrical Type	Capacitor Start Capacitor Run
Starting Method	Across The Line
Poles	4
Rotation	Selective Counterclockwise
Mounting	Rigid Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	T
Overall Length	14.70 in
Frame Length	8.65 in
Shaft Diameter	0.875 in
Shaft Extension	2.25 in

General Specifications

UPC	786674074966
Weight	43.00 LB
Packaged Length	15.50 IN
Packaged Width	10.50 IN
Packaged Height	10.00 IN
HTC	8501.40.6040
Country of Origin	Mexico
