• Automatic reset thermal protector prevents overheating.
• Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.

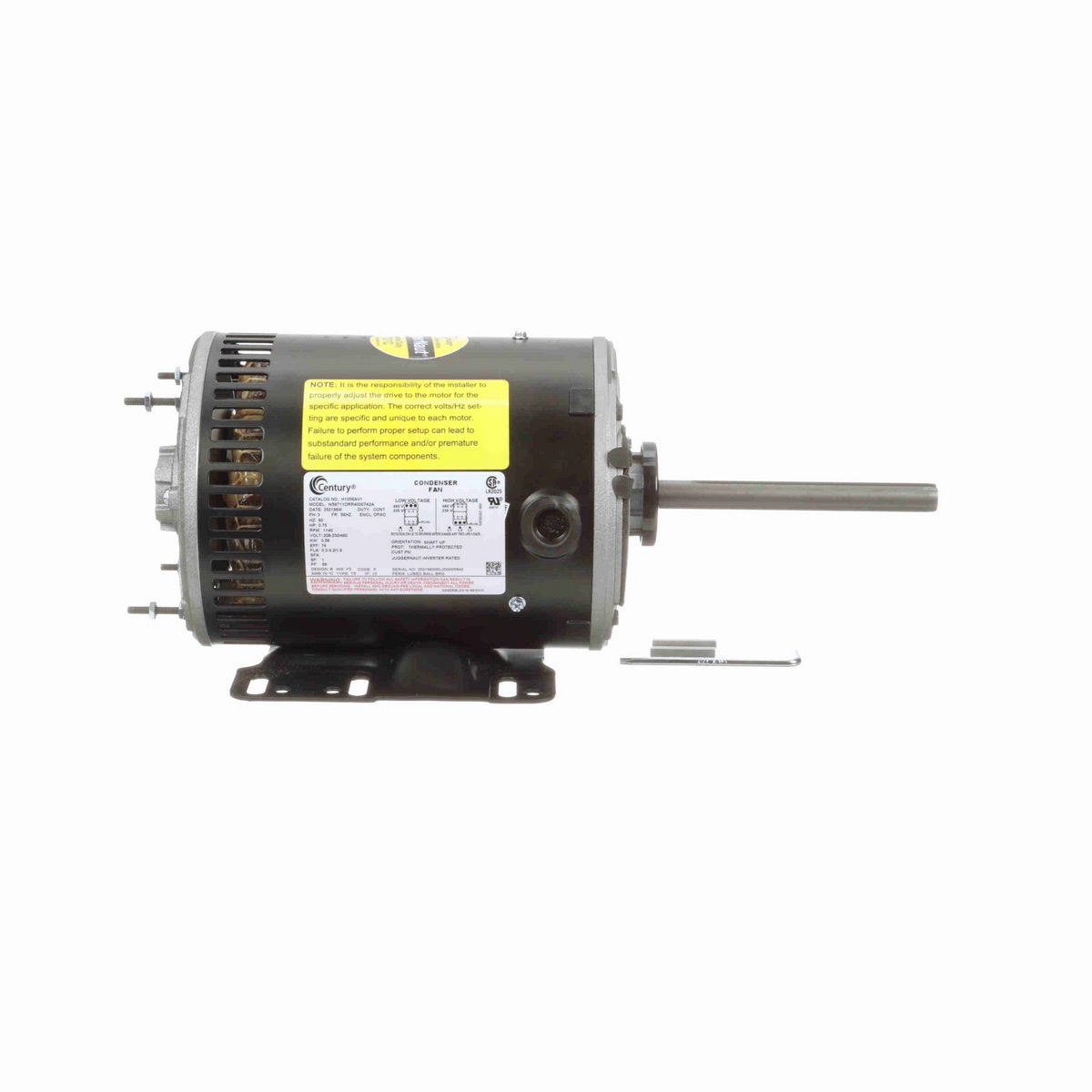

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	0.75 Hp
Output KW	0.56 kW
Voltage	230/460 V
Speed	1140 rpm
Service Factor	1
Frame	56HZ
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Efficiency	74 %
Ambient Temperature	70 °C
Frequency	60 Hz
Current	3.2/1.6 A
Duty	Continuous
Insulation Class	F
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Squirrel Cage Induction Run
Starting Method	Line Or Inverter
Poles	6
Rotation	Reversible
Mounting	Bolt-on Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Single Special Extension
Frame Length	7.65 in
Shaft Diameter	0.625 in
Shaft Extension	6.00 in

General Specifications

UPC	786674076106
Weight	27.83 LB
Packaged Length	19.00 IN
Packaged Width	8.00 IN
Packaged Height	8.00 IN
Country of Origin	Mexico
