• Automatic reset thermal protector prevents overheating.
• Patented MAXGuard® insulation system offers superior protection for use with a variable frequency drive.
• Permanently lubricated, double-sealed bearings extend the lifetime of the motor.
• Ambient temperature up to 70°C allows for consistent operation in a range of environments and applications.
• Vertical/horizontal mounting for proper placement of the fan within airflow.

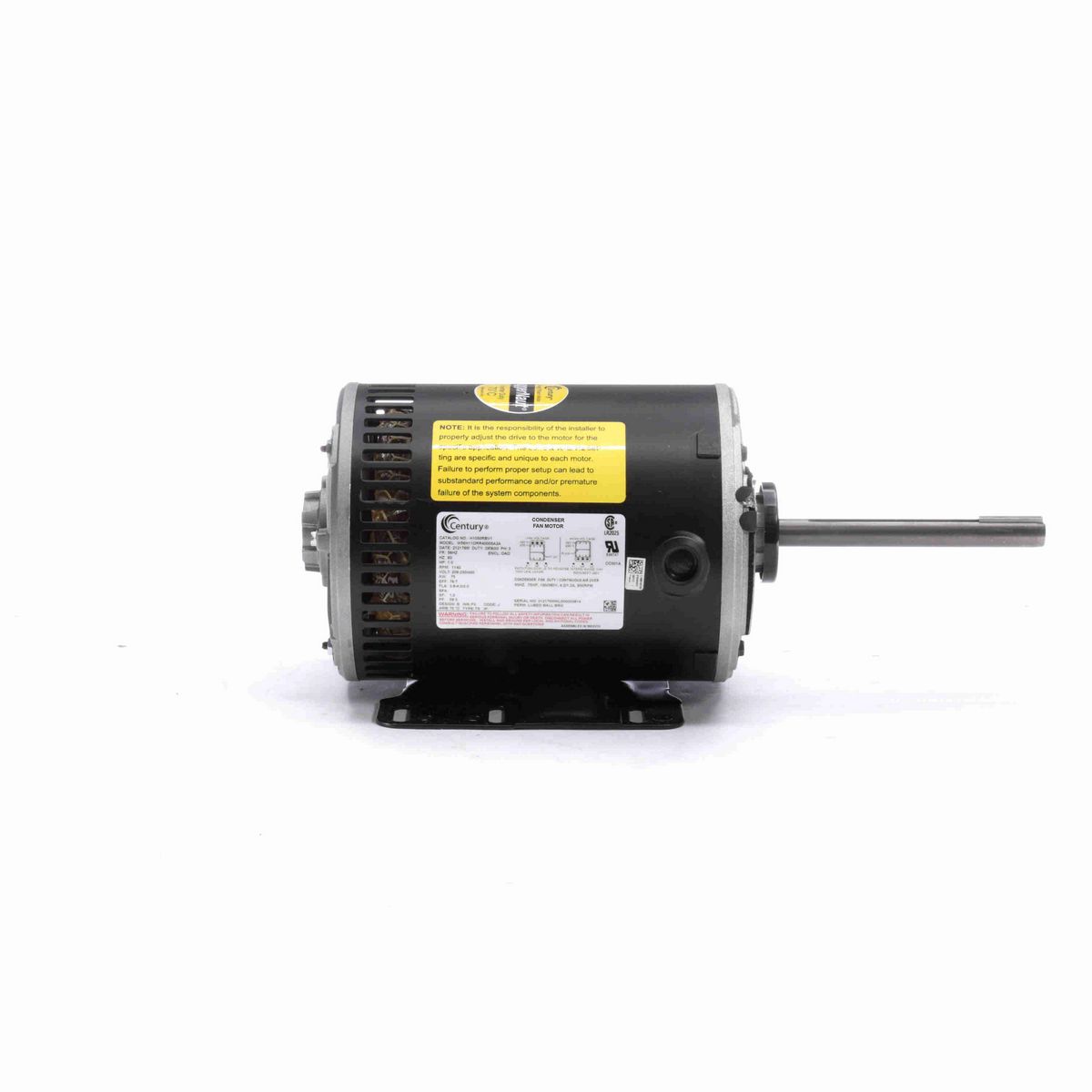

• Operational at 208-230/460 V @60HZ. Nameplate image may vary from actual product.

Nameplate Specifications

Phase	3
Output HP	1 Hp
Output KW	0.75 kW
Voltage	208-230/460&190/380 V
Speed	1140/950 rpm
Service Factor	1
Frame	56HZ
Enclosure	Open Air Over
Thermal Protection	Thermally Protected
Efficiency	72 %
Ambient Temperature	70 °C
Frequency	60 Hz
Current	3.8-4.0/2.0 A
Duty	Continuous
Insulation Class	F
UL	Recognized
CSA	Y
CE	N
Number of Speeds	1

Technical Specifications

Electrical Type	Three Phase
Starting Method	Across The Line
Poles	6
Rotation	Reversible
Mounting	Rigid Base
Drive End Bearing	Ball
Opp Drive End Bearing	Ball
Frame Material	Rolled Steel
Shaft Type	Keyed
Overall Length	16.02 in
Frame Length	7.65 in
Shaft Diameter	0.625 in
Shaft Extension	6 in

General Specifications

UPC	786674074058
Weight	28.00 LB
Packaged Length	19.00 IN
Packaged Width	8.00 IN
Packaged Height	8.00 IN
HTC	8501.51.6040
Country of Origin	Mexico
